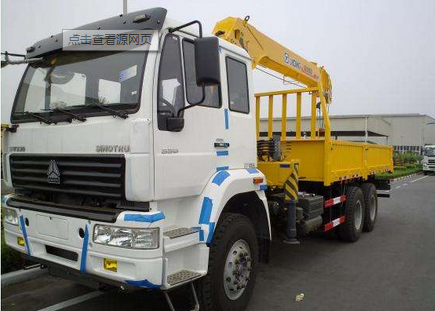

13.5 meters Lifting Height XCMG Hydraulic Boom Truck Crane
13.5 meters Lifting Height XCMG Hydraulic Boom Truck Crane
13.5 meters Lifting Height XCMG Hydraulic Boom Truck Crane
13.5 meters Lifting Height XCMG Hydraulic Boom Truck Crane
13.5 meters Lifting Height XCMG Hydraulic Boom Truck Crane
13.5 meters Lifting Height XCMG Hydraulic Boom Truck Crane
13.5 meters Lifting Height XCMG Hydraulic Boom Truck Crane
13.5 meters Lifting Height XCMG Hydraulic Boom Truck Crane
Specifications
Place of Origin :
China
Brand Name :
XCMG
Certification :
CE, ISO
Model Number :
SQ10SK3Q-II
MOQ :
1pc
Price :
negotiate
Packaging Details :
Ro-Ro
Delivery Time :
20 days
Payment Terms :
30% deposit, balance before shipment
Supply Ability :
10000pcs/year
Name :
Telescopic boom crane
Max. Lifting Capacity :
10 ton
Max. Lifting Moment :
25 T.M
Max.Lifting Height :
13.5m
Crane Weight :
3800 kg
Oil Tank Capacity :
160L
Installation Space :
1200mm
Description

13.5meters Lifting Height XCMG Hydraulic Boom Truck Crane

Quick Details:

Brand: XCMG

Name: Telescopic boom crane, Lorry mounted crane, Hydraulic truck crane

Max. Lifting Capacity: 10 ton

Max. Lifting Moment: 25 T.M

Max. Oil Flow of Hydraulic System: 100 L/min

Max.Lifting Height:13.5meters

Crane Weight: 3800 kg

Oil Tank Capacity: 160 L

Description:

Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

Telescopic boom cranes can be hydraulic extended and retracted without a knuckle function. These cranes should always be executed with a hoisting winch installation.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 2 to 25 ton and outreach over 20 meters.

Telescopic boom crane SQ10ZK3Q-II is lifting capacity is 10tons moment is 25 T.M.

13.5 meters Lifting Height XCMG Hydraulic Boom Truck Crane

Applications:

It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

­

Specifications:

Model

SQ10SK3Q-II

Unit

Max. Lifting Capacity

10000

kg

Max. Lifting Moment

25

T.M

Recommend Power

30

kw

Max. Oil Flow of Hydraulic System

100

L/min

Max. Pressure of Hydraulic System

26

MPa

Oil Tank Capacity

160

L

Rotation Angle

All Rotation

Crane Weight

3800

kg

Installation Space

1200

mm

Choice of Chassis

DFL1250A9;

CA1240PK2L7T4EA81;

CA1200PK2L7T3EA80;

BJ1317VNPJJ-S5;

BJ5253ZKPJJ;

CA1253P7K2L11T1E;

EQ1252GFJ;

DFL1253AX;

SQ10SK3Q-II Lifting capability diagram

Working radius (m)

2.5

4.5

7

9

12

Lifting capacity (kg)

10000

5556

3000

2000

1400

Competitive Advantage:

1, Single cylinder synchronization guy cable technology make work efficiency more higher than before

2, Advanced development means make sure that the design is very reliable

3, The more symmetrical center design of pentagon&hexagon boom make it has bigger anti-bendding capacity.

4, Compact hinge point design take up smaller space.

5,The work is more safety after fitted with overwind alarm equipment

6, The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system

7, Float three-point bridge structure design can lower the accessional stress on the chassis when traveling

8, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation

9, Anti-slewing impulse equipment that make vehicle running safely.

Dimension drawing

13.5 meters Lifting Height XCMG Hydraulic Boom Truck Crane


Optional parts:

1. Moment limited device
13.5 meters Lifting Height XCMG Hydraulic Boom Truck Crane

  1. Remote control equipment
    13.5 meters Lifting Height XCMG Hydraulic Boom Truck Crane
  2. Anti-overwind magnet valve
    13.5 meters Lifting Height XCMG Hydraulic Boom Truck Crane
  3. High seat on column
    13.5 meters Lifting Height XCMG Hydraulic Boom Truck Crane
  4. Work light
    13.5 meters Lifting Height XCMG Hydraulic Boom Truck Crane
  5. Assisatant stabilizer leg
    13.5 meters Lifting Height XCMG Hydraulic Boom Truck Crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
