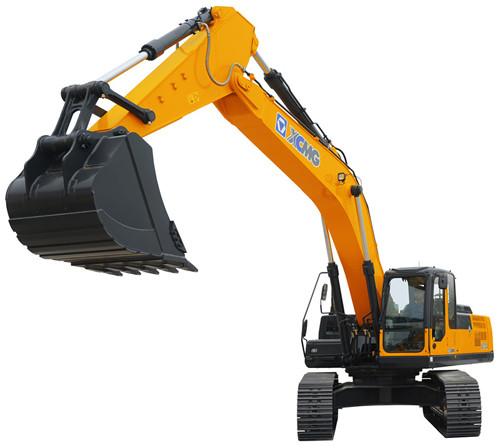

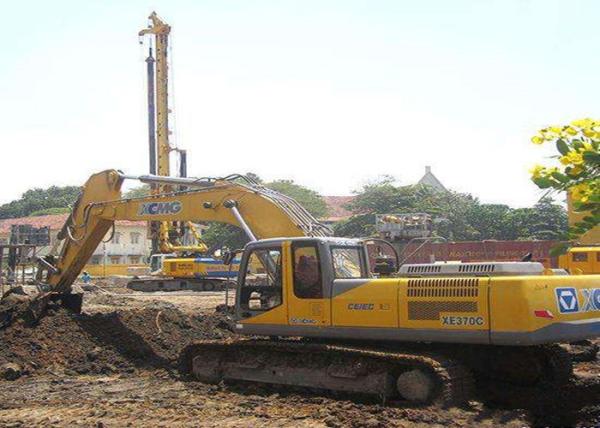

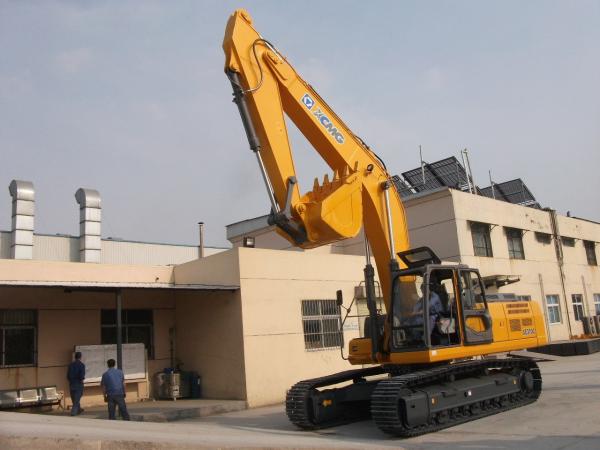

XE370C Excavator Earthmoving Machinery, Engineering Vehicle with 1.6m3 Bucket Capacity
XE370C Excavator Earthmoving Machinery, Engineering Vehicle with 1.6m3 Bucket Capacity
XE370C Excavator Earthmoving Machinery, Engineering Vehicle with 1.6m3 Bucket Capacity
XE370C Excavator Earthmoving Machinery, Engineering Vehicle with 1.6m3 Bucket Capacity
XE370C Excavator Earthmoving Machinery, Engineering Vehicle with 1.6m3 Bucket Capacity
XE370C Excavator Earthmoving Machinery, Engineering Vehicle with 1.6m3 Bucket Capacity
Specifications
Place of Origin :
China
Brand Name :
XCMG
Certification :
CE, ISO
Model Number :
XE370C
MOQ :
1pc
Price :
negotiated
Packaging Details :
Ro-Ro
Delivery Time :
in 30 days
Payment Terms :
30% deposit, balance before shipment
Supply Ability :
6000pcs/year
Brand :
XCMG
Operating weight :
36600KG
Standard bucket capacity :
1.6m³
Max. digging height :
10445mm
Max. dumping height :
7287mm
Max. digging depth :
7423mm
Overall length :
11105mm
Overall width :
3190mm
Description

XE370C Excavator Earthmoving Machinery, Engineering Vehicle with 1.6m3 Bucket Capacity

Description:

An excavator is an engineering vehicle consisting of an articulated arm (boom, stick), bucket and cab mounted on a pivot (a rotating platform) atop an undercarriage with tracks or wheels. Their design is a natural progression from the steam shovel.

Specification:

Engine: ISUZU AA-6HK1XQP
Rated power: 184kw
overall length: 11,105mm
overall width: 3190mm
overall height: 3300mm
Unit XE370C
Operating weight kg 36600
Standard bucket capacity m3 1.6
Engine Engine Model --- ISUZU AA-6HK1XQP
Type Direct injection --- √
Four strokes --- √
Water cooling --- √
Turbo charged --- √
Air to air intercooler --- √
No. of cylinders --- 6
Rated power/speed kW/ r/min 184/2000
Max. torque/speed N.m 872.8/1700
Displacement L 7.79
Main data Travel speed km/h 5.4/3.2
Max. gradeability % 58
Swing speed r/min 10.1
Ground pressure kPa 67.8
Bucket digging force at power max. kN 242
Arm crowd force at power max. kN 174
Hydraulic Main pump -- 2Plunger pump
Rate flow L/min 2x280
Max. pressure of system MPa 31.5/34.3
Max. pressure of travel equipment MPa --
Max. pressure of swing equipment MPa --
Pilot press setting MPa 3.9
Oil & Fuel refilling Fuel tank capacity L 600
Hydraulic tank capacity L 320
Engine lubrication L 28
Dimensions Overall length mm 11105
Overall width mm 3190
Overall height mm 3300
Overall width of upperstructure mm 2960
Track length mm 5070
Overall width of undercarriage mm 3190
Standard track shoe width mm 600
Track length on ground mm 4040
Track gauge mm 2590
Clearance under counter weight mm 1197
Ground clearance mm 500
Tail swing radius mm 3450
Working Range Max. digging height mm 10445
Max. dumping height mm 7287
Max. digging depth mm 7423
Max. digging depth of cut for mm 7266
Max. vertical wall digging depth mm 6776
Max. digging reach mm 11114
Max. digging reach mm 10907
Max. turning radius mm 4376

Advantages:

1. Strong, fuel-efficient, low noise powder systems
2. Easy to service and maintain
3. Intelligent operation and display
4. The cab is comfortable, safe and wide vision
5. The advanced hydraulic system
6. Rugged and high reliable
