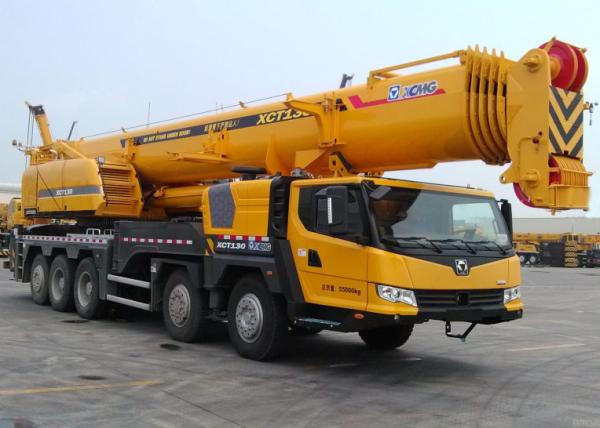

130 Ton Construction All Terrian crane equipment XCT130 , 80km / h
130 Ton Construction All Terrian crane equipment XCT130 , 80km / h
130 Ton Construction All Terrian crane equipment XCT130 , 80km / h
130 Ton Construction All Terrian crane equipment XCT130 , 80km / h
Specifications
Brand Name :
XCMG
Model Number :
XCT130
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
negotiate
Payment Terms :
30% deposit, balance before shipment
Supply Ability :
10000pcs/year
Delivery Time :
30-50 days
Packaging Details :
Ro-Ro
Model :
XCT130
Total weight :
130ton
Max.travel speed :
80km/h
Engine model :
WP6G240E330/OM906LA.E3A/2/ISM11E4 440
Description

130 Ton Construction All Terrian crane equipment XCT130 , 80km / h

Features:

• As the final product of the new generation all terrain crane, QAY260 perfectly inherits the advantages of the previous products.
• The product adopts 6-axle all terrain chassis, 12x12 full-axle steering mode. Adopt the imported Benz EFI engine with strong power, the maximum speed can reach 72Km/h, and the maximum grade ability is 50%. The fully extended length of the 7-segment retractable boom is 70m, adopts high-intensity imported steel, featuring lighter dead-weight and stronger performance. The optimized various retractable boom combination play the performance to the most.
• The self-combination counterweight technique developed by ourselves can effectively improve the lifting performance by 30%. The electrohydraulic proportion control multi-axle steering mode can realize many kinds of steering modes. The new brake technique can reduce 2/3 maintenance cost, and improve the travel safety. The comfortable cabs and outrigger operation completely show the humanity design concept. Equip with the XCMG unique control system, auxiliary retractable boom system, virtual wall system, perfect failure diagnosis, real-time detection, CAN technique, etc.

Technical Parameter

Dimension
Unit
XCT130
Overall length
mm
15195
Overall width
mm
3000
Overall height
mm
3970
Weight　
Overall weight in transport
kg
54990
Front axle load
kg
　
Rear axle load
kg
　
Power
Engine model
　
WP6G240E330/OM906LA.E3A/2/ISM11E4 440
Engine rated power
kW/(r/min)
176/2300,190/2200,318/1900
Engine rated torque
N.m/(r/min)
860/(1200-1700),1000/(1200-1600),2080/1200
Travel
Max. travel speed
km/h
80
Min. turning diameter
m
23
Min. ground clearance
mm
312
Approach angle
°
18
Departure angle
°
13
Max. grade ability
%
45
Fuel consumption for 100km
L
70/65
Main performance
Max. rated total lifting capacity
t
130
Min. rated working radius
mm
3000
Turning radius at turntable tail
m
4.9
Max. lifting torque
kN.m
5166
Base boom
m
13.4
Fully extended boom
m
60.7
Fully extended boom+ jib
m
85.3
Longitudinal outrigger span
m
--
Lateral outrigger span
m
--
Working speed
Boom luffing time
s
　
Boom full extension time
s
　
Max. swing speed
r/min
　
Max. speed of main winch (single rope) (no load)
m/min
　
Max. speed of aux. winch (single rope) (no load)
m/min
　

The specification is subject to change without notice.
