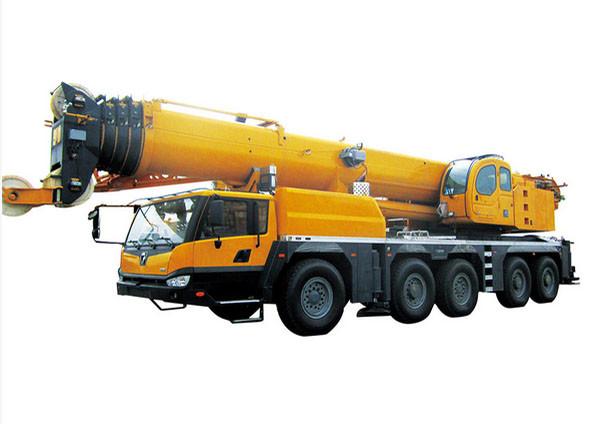

Retractable Boom hydraulic crane truck , 130 Ton large mobile crane
Retractable Boom hydraulic crane truck , 130 Ton large mobile crane
Specifications
Brand Name :
XCMG
Model Number :
QY130A
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiate
Payment Terms :
30% deposit, balance before shipment
Supply Ability :
10000pcs/year
Delivery Time :
30-50 days
Packaging Details :
Ro-Ro
Model :
QY130A
Engine Model :
TAD720VE/BF6M1013ECP
Overall length :
14730mm
Overall width :
3000MM
Overall height :
3990mm
Approach angle :
16°
Departure angle :
19°
Max. grade ability :
50%
Condition :
New
Description

Retractable Boom hydraulic crane truck , 130 Ton large mobile crane

Description:

Our truck crane adopts full luxury cab with large view and new orthodrome streamline operating cab, which is good looking. Adopt five-segment oval rope retractable boom with double-cylinder and two-segment jib, greatly improving the working scope of the machine. The design of the streamline boom head is in keeping with the style of the machine. The boom and jib adopt new connection method, which is convenient to dismantle and install. It is equipped with the high-power environment protection engine, improving the chassis power and the trafficability.More excellent performance

Specifications:

Dimension

Unit

QY130A

Overall length

mm

14730

Overall width

mm

3000

Overall height

mm

3990

Weight

　

　

Total weight in travel

kg

58500

Front axle load

kg

11271*2

Rear axle load

kg

11986*3

Power

　

　

Engine model

　

TAD720VE/BF6M1013ECP

ISME420 30

Engine rated power

kW/(r/min)

 162/21001/

173/2100

306/1900

Engine rated torque

N.m/(r/min)

 854/1400/906/1400

2010/1200

Travel

　

　

Max. travel speed

km/h

80

Min. turning diameter

m

20

Min. ground clearance

mm

280

Approach angle

°

16

Departure angle

°

19

Max. grade ability

%

50

Fuel consumption for 100km

L

75.6

Main performance

　

　

Max. rated total lifting capacity

t

130

Min. rated working radius

mm

3000

Turning radius at turntable tail

m

4.470

Max. lifting torque

kN.m

4439

Base boom

m

12.8

Fully extended boom

m

50

Fully extended boom+jib

m

70

Longitudinal outrigger span

m

8.36

Lateral outrigger span

m

8.3

Working speed

　

　

Boom luffing time

s

Boom full extension time

s

360

Max. swing speed

r/min

2

Max. speed of main winch (single rope) (no load)

m/min

94

Max. speed of aux. winch (single rope) (no load)

m/min

94

Spare Parts:

We can supply with all of original spare parts for XCMG truck crane QY16K, QY25K, QY25K5-I, QY70K-I etc., such as diesel pump, oil pump, starting motor, brake valve, steering switch, brake shoe, balance valve, control rod, oil filter, air filter, transmission, pin shaft, pin shaft etc.

Retractable Boom hydraulic crane truck , 130 Ton large mobile crane

Retractable Boom hydraulic crane truck , 130 Ton large mobile crane

Retractable Boom hydraulic crane truck , 130 Ton large mobile crane

F A Q

Q: Are you a trading company?
A: No, we have our own factory, factory+trading company.

Q: How is your warranty?
A: We provide 12 months warranty for our products.

Q:If I don’t know how to install, what should I do?
A: Don’t worry about that, we have professional engineers help you.

Q: How is your after-sale service?
A: 24 hours and 7days service.
