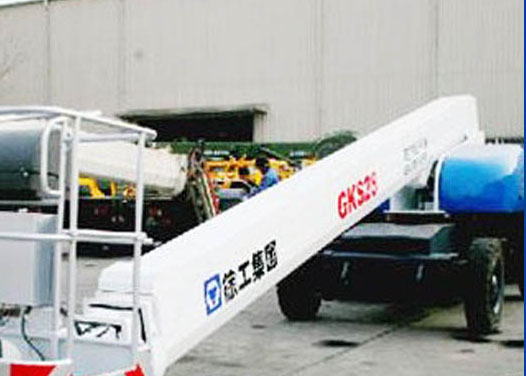

GKS22 22m Self propelled straight Arm Aerial Work Platform
GKS22 22m Self propelled straight Arm Aerial Work Platform
GKS22 22m Self propelled straight Arm Aerial Work Platform
GKS22 22m Self propelled straight Arm Aerial Work Platform
GKS22 22m Self propelled straight Arm Aerial Work Platform
GKS22 22m Self propelled straight Arm Aerial Work Platform
Specifications
Brand Name :
XCMG
Model Number :
GKS22
Certification :
CE ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiate
Payment Terms :
50% deposit, balance before shipment
Supply Ability :
10000pcs/year
Delivery Time :
30-50 days
Packaging Details :
Ro-Ro
Total length :
11980mm
Total width :
2490/3590mm
Total height :
2840mm
Axle base :
3600mm
Rated work height :
28m
Max. platform height :
26.3m
Max.work range :
24.3m
Arm luffing time :
40s
Description

GKS22 22m Self propelled straight Arm Aerial Work Platform

Maneuverability
• 4 wheel drive and axle expansion ensure good stability, which is suitable for various work environments.
• 360° successive rotation

Maintenance
• It adopts America engine, featuring strong power, energy-saving and environmental care.
• The wing type engine hood and auxiliary pneumatic open mode is convenient for repair service.

Long life
• Simple and rugged structure, and steel housing, more suitable to work under tough conditions like shipyard.
• The ergonomically designed control panel and optimized button allocation feature comfortable operation.
• The 180° rotation platform can maximally expand the work range.
• The advanced octagon arm support improves the rigidity.
• Solid tyre.
• The galvanizing treatment for the key parts features anti-corrosion.
• The design of internally installed cables is superior to the commonly used outward design.

Items

Unit

Parameters
Total length mm 11980
Total width mm 2490/3590
Total height mm 2840
Axle base mm 3600
Rated work height m 28
Max. platform height m 26.3
Max.work range m 24.3
Arm luffing range ° -12~+80
Arm luffing time s 40
Arm contraction time s 70
Max.rotation speed r/min 0.5
Max.tail swing mm 1400
Platform size mm 1800×900×1150
Platform rotation range ° ±90
Turntable rotation radius mm 2650
Total weight under travel condition kg 15770
Rated load kg 150
Max. load kg 450
Max.travel speed km/h 5.6
Min. turning radius m 7
Min.ground clearance mm 260
Max. gradeability % 30
Engine model YC4D80-T10
Rated engine power kW/(r/min) 58/(2400)
Solid tyre 10.00-20/7.5


GKS22 22m Self propelled straight Arm Aerial Work PlatformGKS22 22m Self propelled straight Arm Aerial Work PlatformGKS22 22m Self propelled straight Arm Aerial Work Platform
