Electric Single Girder Overhead Bridge Crane LDE 3+3 / 5+5 / 8+8 / 10+10 Ton
Electric Single Girder Overhead Bridge Crane LDE 3+3 / 5+5 / 8+8 / 10+10 Ton
Electric Single Girder Overhead Bridge Crane LDE 3+3 / 5+5 / 8+8 / 10+10 Ton
Electric Single Girder Overhead Bridge Crane LDE 3+3 / 5+5 / 8+8 / 10+10 Ton
Electric Single Girder Overhead Bridge Crane LDE 3+3 / 5+5 / 8+8 / 10+10 Ton
Electric Single Girder Overhead Bridge Crane LDE 3+3 / 5+5 / 8+8 / 10+10 Ton
Electric Single Girder Overhead Bridge Crane LDE 3+3 / 5+5 / 8+8 / 10+10 Ton
Electric Single Girder Overhead Bridge Crane LDE 3+3 / 5+5 / 8+8 / 10+10 Ton
Specifications
Brand Name :
Jingjiang
Model Number :
LDE
Certification :
ISO
Place of Origin :
China(mainland)
MOQ :
1pc
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs per year
Delivery Time :
20 days
Packaging Details :
RO-RO
Application :
factory, storage,yard etc
Motor Power :
0.8-2.2kw
Lifting height :
6-30m
Span :
7.5-22.5m
Max.Wheel pressure :
3.28-15.43KN
Work class :
A3
Description

LDE electric single girder overhead crane 3+3/5+5/8+8/10+10 ton

Description:

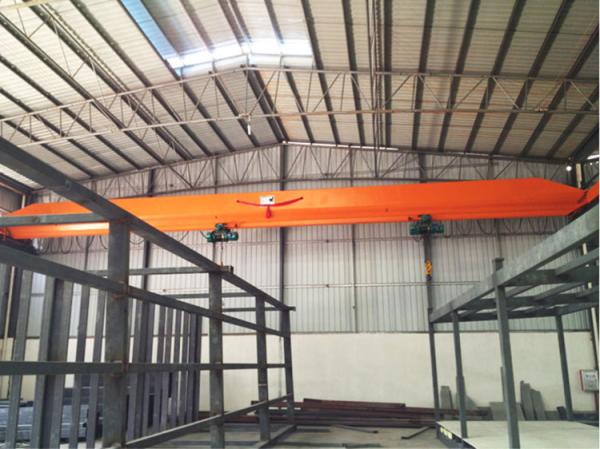

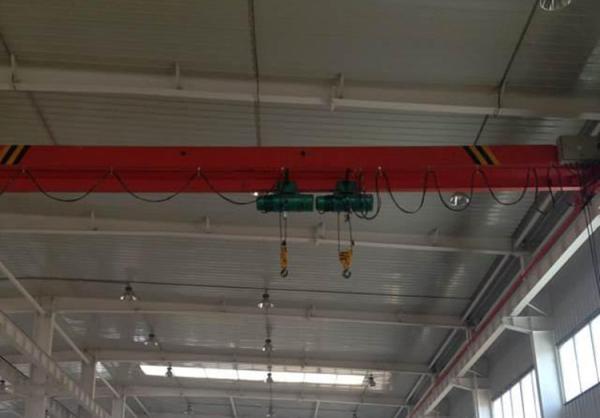

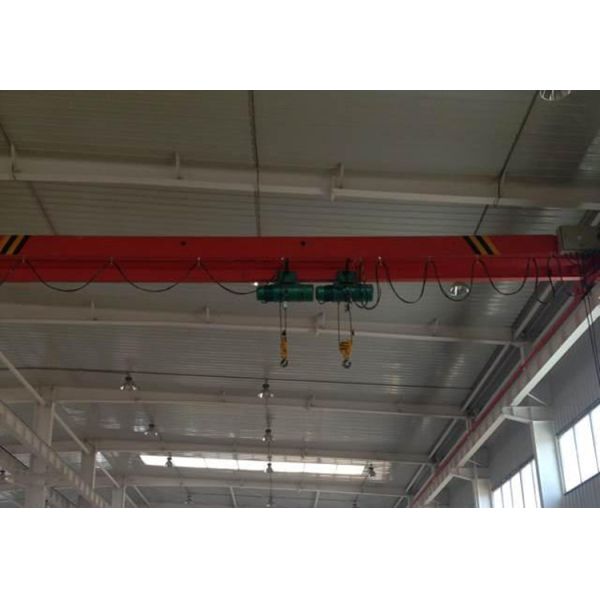

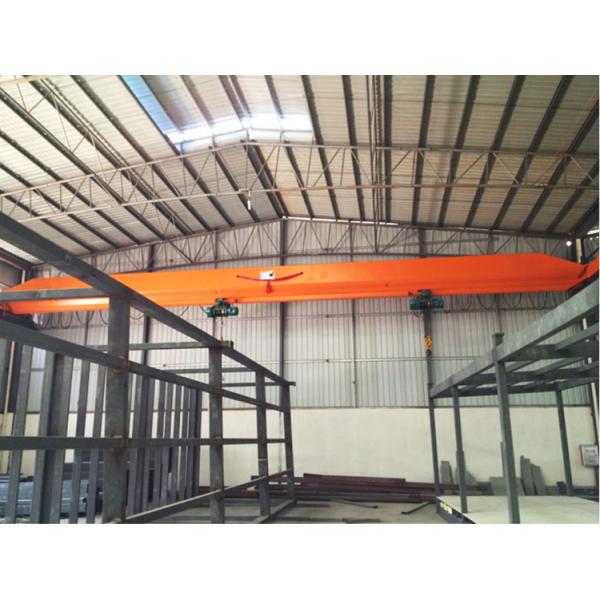

LDE electric single girder crane is developed on the base of LD single beam crane, on its single beam suspending two electric hoists. This two sets of hoist can not only be single action and also linked action, this product can lift long work pieces in workshops, warehouses and other work sites, apply to electroplating, cement pipe and steel base etc.

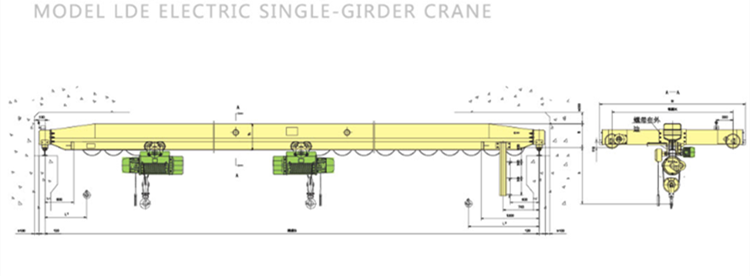

Technology:

Electric Single Girder Overhead Bridge Crane LDE 3+3 / 5+5 / 8+8 / 10+10 Ton

Crane types, specifications and parameters:

Lifting capacity (t) 3+3 5+5 8+8 10+10
Operation type Ground operation
Traveling speed (m/min) 20 20 20 20


Electric

motor


 Model ZDY21-4 ZDY22-4 ZDY23-4 ZDY23-4
Power (kw) 0.8 1.5 2.2 2.2

Rotary speed

(r/min)

 1380 1380


Electric

block

 Model CD,MD electric block
Lifting height (m) 6,9,12,18,24,30

Lifting speed

(m/min)

 8 or 8/0.8 8 or 8/0.8 5 or 5/0.5 7 or 7/0.7

Traveling speed

(m/min)

 20 20 20 20
Work class A3
Power source 380V 50Hz

*Detail specifications please contact us!

Electric Single Girder Overhead Bridge Crane LDE 3+3 / 5+5 / 8+8 / 10+10 Ton

Electric Single Girder Overhead Bridge Crane LDE 3+3 / 5+5 / 8+8 / 10+10 Ton

Electric Single Girder Overhead Bridge Crane LDE 3+3 / 5+5 / 8+8 / 10+10 Ton

Electric Single Girder Overhead Bridge Crane LDE 3+3 / 5+5 / 8+8 / 10+10 Ton

Electric Single Girder Overhead Bridge Crane LDE 3+3 / 5+5 / 8+8 / 10+10 Ton

*Specific size can be customized according to customer demand.
