Customized Electric Single Beam Overhead Bridge Crane LP 3 / 5 / 8 / 12.5 Ton
Customized Electric Single Beam Overhead Bridge Crane LP 3 / 5 / 8 / 12.5 Ton
Customized Electric Single Beam Overhead Bridge Crane LP 3 / 5 / 8 / 12.5 Ton
Customized Electric Single Beam Overhead Bridge Crane LP 3 / 5 / 8 / 12.5 Ton
Specifications
Brand Name :
Jingjiang
Model Number :
LP
Certification :
ISO
Place of Origin :
China(mainland)
MOQ :
1pc
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs per year
Delivery Time :
20-30 days
Packaging Details :
RO-RO
Power :
380 V/50HZ
Crane weight :
1.88-10.47t
Lifting capacity :
3t 5t 8t 12.5t
Span :
7.5-28.5m
Max.Wheel pressure :
2.15-9.21kn
Wheel diameter :
130/154mm
Description

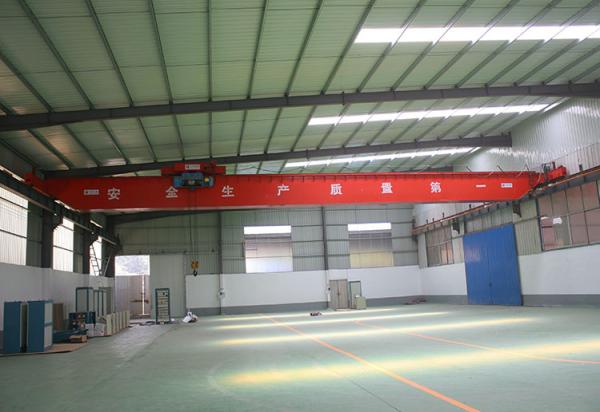

LP electric single beam bridge crane overhead crane 3/5/8/12.5 ton

Description:

The main beam of model LP electric single-beam crane adopts box type which uses welded steel plates, it has strong rigidity and strength. There are level track and vertical track on the main beam which is set for trolley running. The fixed electric hoist is installed on angle type trolley shelf, trolley runs along trolley track on main beam. If you use this structure crane, you can improve the lifting height.

Technology:

Customized Electric Single Beam Overhead Bridge Crane LP 3 / 5 / 8 / 12.5 Ton

Lifting weight(t) 3 5 8 12.5
Operation type Ground operation Ground operation Ground operation Ground operation
Traveling speeding(m/min) 20 20 20 20
Motor

 Traveling speed(m/min) ZDY21-4 ZDY21-4 ZDY21-4 ZDY22-4
Power (kw) 0.8 0.8 0.8 1.5
Rotary speed 1380 1380 1380 1380

Electric hoist


 Model CD1 or MD1 CD1 or MD1 CD1 or MD1 CD1 or MD1
Lifting height (m) 6,9,12 6,9,12 6,9,12 6,9,12
Lifting speed (m/min) 8 or 8/0.8 8 or 8/0.8 5 or 8/0.5 5 or 8/0.5
Traveling speed (m/min) 20 20 20 20
Crane work class A3 A3 A3 A3
Electric power 380V 50Hz 3 phase current 380V 50Hz 3 phase current 380V 50Hz 3 phase current 380V 50Hz 3 phase current

*Detail specifications please contact us!

Customized Electric Single Beam Overhead Bridge Crane LP 3 / 5 / 8 / 12.5 Ton
Customized Electric Single Beam Overhead Bridge Crane LP 3 / 5 / 8 / 12.5 Ton

*Specific size can be customized according to customer demand.

Customized Electric Single Beam Overhead Bridge Crane LP 3 / 5 / 8 / 12.5 Ton
