Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery
Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery
Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery
Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery
Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery
Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery
Specifications
Brand Name :
ccmie
Model Number :
423471
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
10000pc/year
Delivery Time :
in 20 days
Packaging Details :
standard
Condition :
New
Lifetime :
3000 -5000 hours
Material :
Steel 100CR6 + NBR60
Rubber Hardness :
60-65°
Description

Duo Cone Floating Seal 423471 For Heavy Duty Machinery

Product description:

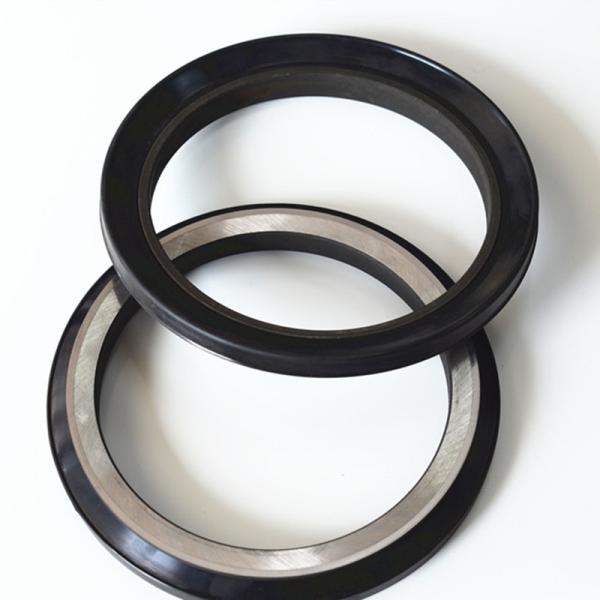

One set Consists of two metal sealing rings and two rubber rings
Material 100CR6 steel + NBR60
Warranty 18 months
Stock Available
FOB Wuhan ,Shanghai ,Qingdao ,Ningbo ,Shenzhen ,Xiamen

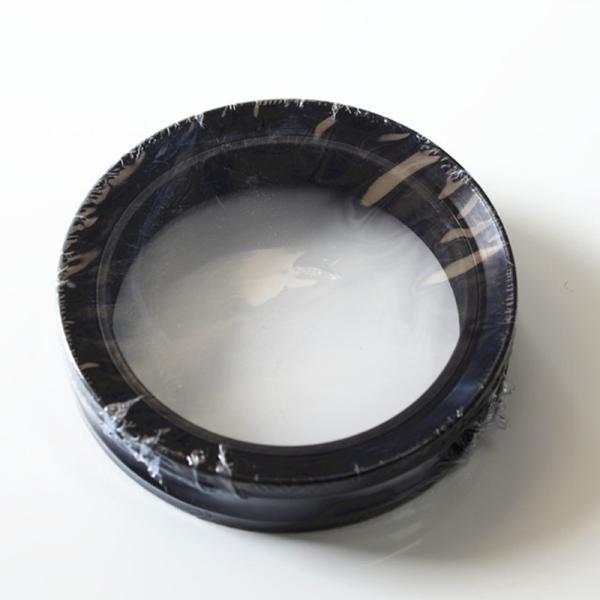

Package Shrink films + inner box + standard export carton + wood pallet + wood box
Application Constuction machinery ,farm machinery ,coal mining machinery 

Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery

Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery

Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery

Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery

METAL Steel Gcr15/ 100Cr6 Cast 15Cr3Mo
Surface smoothness/roughness     ≤Ra0.2μm 6.3-12.5μm
Work face smoothness ≤Ra0.15μm ≤Ra0.1μm
Pressure loading ≤0.15MPa ≤0.3 MPa
Forging line speed 2m/s 3m/s
Temperature range -100~200°C -40~160°C
Hardness (HRC) 58-62 62-68
Lifetime (Hours) 3000-5000 5000-8000

Method of installation

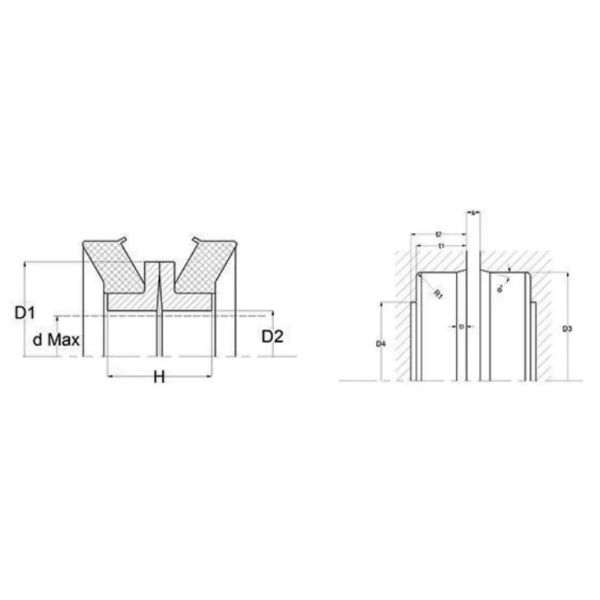

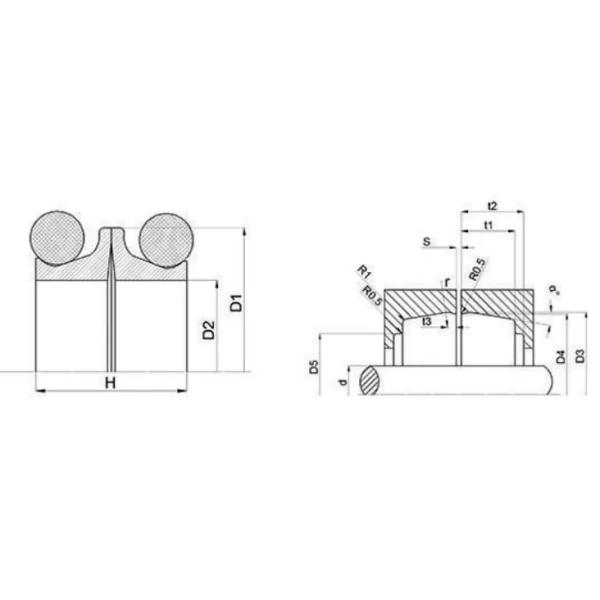

1.Using specialized tools installation: The pressure will apply to the O-ring directly. As shown, the special tool is mounted between the metal floating ring and the rubber ring, toward the seat hole, the rubber ring is evenly pressed into the hole.

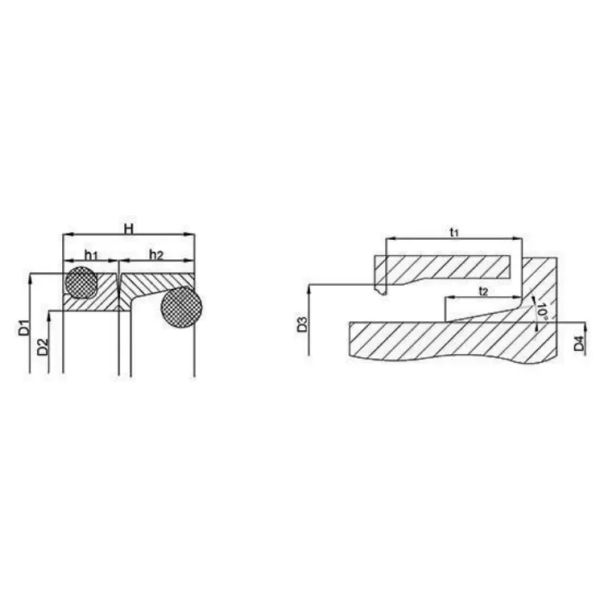

2.Other installation methods: One auxiliary O-ring is fixed between the conical ring surface of the floating oil seal and sealing O-ring (as shown). The ring of the floating oil seal is applied uniformly by pressure and the auxiliary O-ring braces the sealing O-ring to ensure the other correct mounting positions.

Duo Cone Floating Face Seal 423471 For Heavy Duty Machinery

Other parts number you need can contact us to check!
