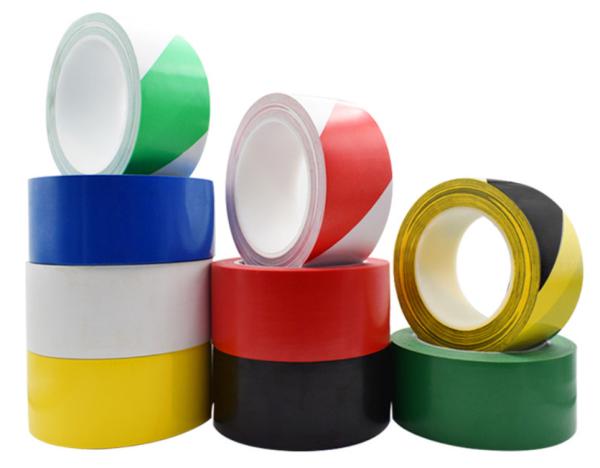

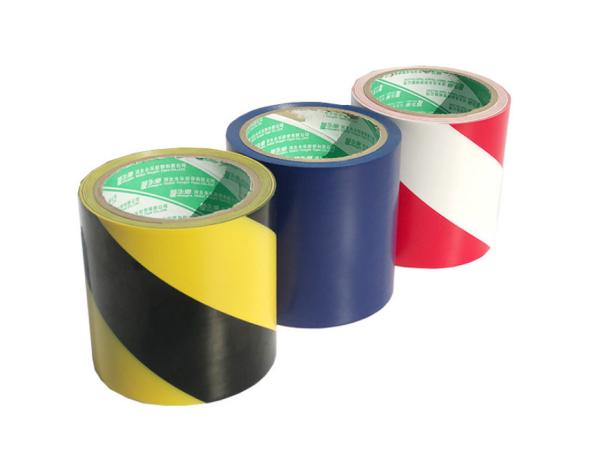

Red and White Stripes PVC Electrical Tape Floor Warning Tape Waterproof Insulation Pipe Rubber Plastic Insulation Tape
PVC electrical tape is made of soft polyvinyl chloride (PVC) film du as the base material and coated with rubber pressure-sensitive adhesive. It has good insulation, flame resistance, voltage resistance, cold resistance, etc. It is suitable for automobile wiring and wires Winding, insulation protection, etc.
Product Name | Model NO. | Carrier | Color | Film thickness (mm) | Tensilestrength (kg/25mm) | Adhesion to steel (N/25mm) | Elongation at break (%) | Voltage resistance (KV) | validity date Months |
Electrical adhesive tape | AUTC650-1 | PVC film | colorful | 0.11 | 1.5 | 0.15 | 150 | 4.5 | 6 |
AUTC650-2 | 0.13 | 2.0 | 0.15 | 160 | 5 | ||||
AUTC650-3 | 0.13 | 2.0 | 0.15 | 160 | 5 | ||||
AUTC650-4 | 0.20 | 3.5 | 0.15 | 200 | 8 | ||||
AUTC650-5 | 0.19 | 3.5 | 0.18 | 200 | 8 | ||||
AUTC650-6 | 0.19 | 3.5 | 0.15 | 200 | 8 | ||||
AUTC650-7 | 0.15 | 2.8 | 0.15 | 160 | 6 | ||||
AUTC650-8 | 0.15 | 2.8 | 0.18 | 160 | 6 | ||||
AUTC650-9 | 0.18 | 3.2 | 0.18 | 180 | 8 | ||||
AUTC650-10 | 0.18 | 3.2 | 0.18 | 180 | 8 | ||||
AUTC650-11 | 0.18 | 3.2 | 0.18 | 180 | 8 | ||||
AUTC650-12 | 0.18 | 3.2 | 0.18 | 180 | 8 | ||||
AUTC650-13 | 0.19 | 3.5 | 0.18 | 200 | 8 | ||||
AUTC650-14 | 0.13 | 1.5 | 0.15 | 120 | 4 | ||||
AUTC650-15 | 0.18 | 2.0 | 0.15 | 160 | 6 |
