Specifications
Brand Name :
UNIFORM
Model Number :
AUTC-SPF-402
Certification :
RoHS, ISO9001, CE, TUV
Place of Origin :
CHINA
MOQ :
50,000rolls
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000,000rolls/day
Delivery Time :
10-12days
Packaging Details :
carton box and wooden box
Material: :
Graphene
Colour: :
Black
Length: :
500-2500mm，Customized
Width: :
200-1500mm，Customized
Thickness: :
0.338（mm）
Feature: :
Waterproof, moisture proof
Description

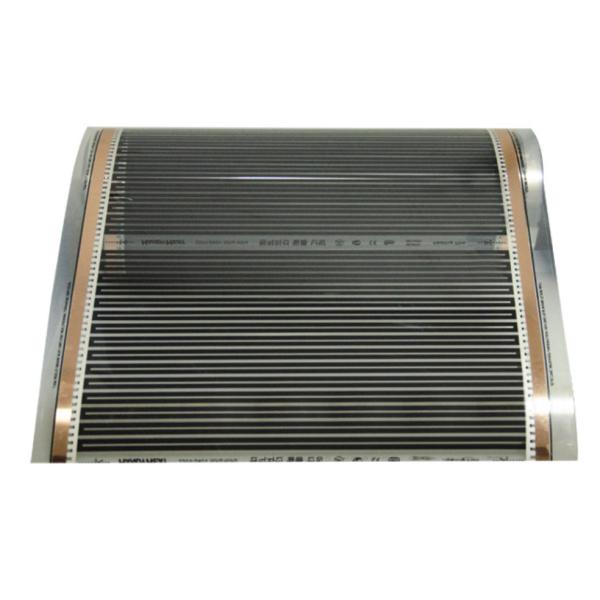

220w Graphene Electric Far Infrared Flexible Floor Indoor Heating Films

220V 50cm Width Healthy Floor Heating Film
Working voltage: 200~240V 50/60Hz
Rated power: 220W/m2
Max surface temperature: 52C degrees
Thickness: 0.338mm
(the 0.25mm heating film is not suitable for underfloor heating.)
Width: 50cm/80cm/100cm

Superiority of Heating Film Heating System:
Far Infra heating does not cause dust dispersion - It creates a healthy environment
Destroys bacteria - Ensures uniform temperature in whole room
Clean, noiseless, maintenance-free operation and space-saving

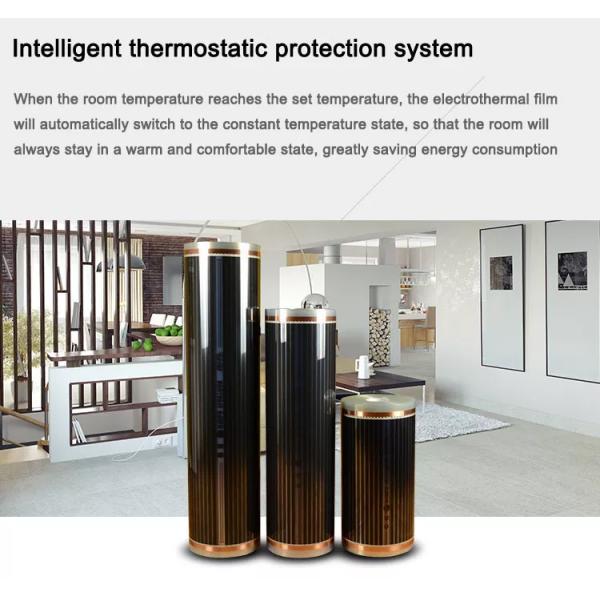

Easy control and operation with thermostats
Easy installation, no need to rework the floor or walls

Parameters of synthetic graphite sheet
Thickness (mm)
DSN5017
DSN5025
DSN5032
DSN5040
DSN5050
0.017±0.003
0.025±0.003
0.032±0.004
0.04±0.005
0.05±0.005
Thermal conductivity
X-Y axis
(w/m.k)
1700~1900
1700~1850
1550~1750
1450~1650
1400~1600
Z axis
(w/m.k)
10~15
12~18
12~18
13~19
15~22
Density (g/cm3)
2.1±0.1
2.1±0.1
2.0±0.1
1.9±0.1
1.9±0.1
In-please thermal diffusivity (mm2/s)
920~1040
930~1010
890~1010
880~1000
850~970
Heat capacity (J/g/K)
0.87±0.01
0.87±0.01
0.87±0.01
0.87±0.01
0.87±0.01
Heat resistance
temperature (℃)
-40~400
-40~400
-40~400
-40~400
-40~400
Thermal resistance (℃)
0.15%
0.15%
0.15%
0.15%
0.15%
Electric conductivity (s/cm)
50000
50000
50000
50000
50000
Thickness (mm)
DSN5060
DSN5070
DSN5080
DSN5090
DSN5100
0.06±0.006
0.07±0.007
0.08±0.008
0.09±0.009
0.1±0.01
Thermal conductivity
X-Y axis
(w/m.k)
1350~1550
1200~1400
1200~1400
1100~1300
1000~1200
Z axis
(w/m.k)
15~22
15~22
15~22
15~22
15~22
Density (g/cm3)
1.85±0.1
1.7±0.1
1.7±0.1
1.6±0.5
1.5±0.1
In-please thermal diffusivity (mm2/s)
840~960
830~970
810~950
790~930
770~920
Heat capacity (J/g/K)
0.87±0.01
0.85±0.01
0.87±0.01
0.87±0.01
0.87±0.01
Heat resistance
temperature (℃)
-40~400
-40~400
-40~400
-40~400
-40~400
Thermal resistance (℃)
0.15%
0.15%
0.15%
0.15%
0.15%
Electric conductivity (s/cm)
50000
50000
50000
50000
50000
