Hollow Shaft Through Bore Slip Ring
Hollow Shaft Through Bore Slip Ring
Hollow Shaft Through Bore Slip Ring
Hollow Shaft Through Bore Slip Ring
Hollow Shaft Through Bore Slip Ring
Hollow Shaft Through Bore Slip Ring
Hollow Shaft Through Bore Slip Ring
Hollow Shaft Through Bore Slip Ring
Hollow Shaft Through Bore Slip Ring
Hollow Shaft Through Bore Slip Ring
Specifications
Brand Name :
JARCH
Model Number :
JSR-TH Series
Certification :
CE,FCC,ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 PCS
Price :
USD$150~500
Payment Terms :
D/P, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
500 Piece/Pieces per Week
Delivery Time :
5-10 WORKING DAYS
Packaging Details :
Gift box or custom packing
Contact Material :
Precious Metal:Gold-Gold
Speed :
250-500RPM/1000-3000RPM
Current :
2A/5A/15A/20A/30A slip ring
Circuits :
2-60
Housing Material :
Aluminium Alloy
Inner Size :
12-500mm
Length :
62-286mm
Product name :
Hollow Slip Ring
Description

JARCH 12mm-120mm-500mmThrough Bore hole Slip Rings factory,Hollow Shaft Through Bore Slip Ring Rotary Joint Electrical

Product Description

JARCH TH Series through bore slip rings are ideally suited for electric slip ring applications where signals and power need to be transferred, and a through hole is required to pass either a shaft or other feed through.

The TH100 uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force and low contact wear. It provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 6.0mm through-bore for routing hydraulic or pneumatic lines. The 2~5 amps /circuit are available in 1-24 ring.

Hollow Shaft Through Bore Slip Ring

Benefits

1. Designed for through bore hydraulic or pneumatic rotating shaft installation
2. Uses fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle
3. Standard, off-the-shelf
4. Gold plated ring and Gold alloy brush
5. Support power,signals transmitting
6. Rings combination is available

Demension

Hollow Shaft Through Bore Slip Ring

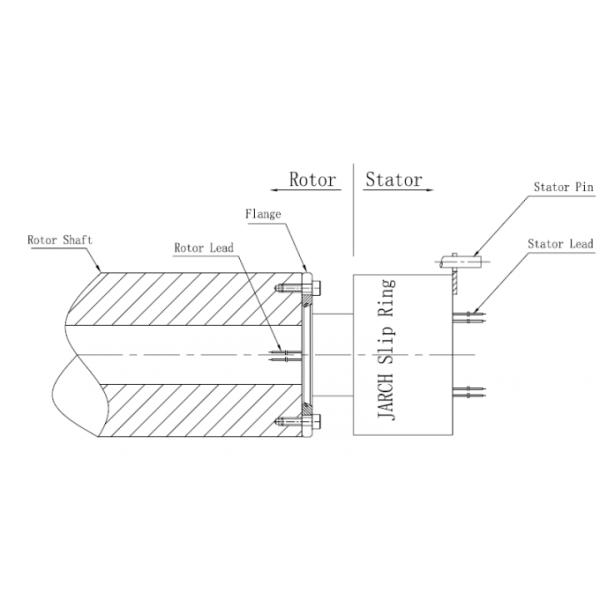

Installation Instructions:Shaft/Flange Mounted

Hollow Shaft Through Bore Slip Ring

Hollow Shaft Through Bore Slip Ring

Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department,1000RPM M5 Connections Hybrid Slip Rings For Rotary Table or Industrial Machinery

Applications

• Exhibit/display equipment

• Packaging / wrapping machinery

• Semiconductor handling systems

• Industrial machinery

• rotary index tables

• Process control equipment

• Heavy equipment turrets or cable reels

• Emergency lighting, robotics Palletizing machines, Option

• Medical equipment | rotary sensors, emergency lighting, robotics

• Miniature cable reels

FAQ

Q1: Are you a factory or a trading company?
A: We are a professional manufactory with High-level R & D team.
Q2: How many types of the slip rings do you have?
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.
A: Yes, we can supply mixed signals slip rings as your request.
Q4: what's the working life of your slip rings.
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
We also can supply much higher revolutions as your special requirement.
Q5: Do you supply OEM and ODM ?
A: Yes, we supply OEM and ODM.

If you have any questions, pls contact us without any hesitation.
