11/2” 15 Meters Spring Extension Cord Hose Reel Industrial Equipment Application
11/2” 15 Meters Spring Extension Cord Hose Reel Industrial Equipment Application
11/2” 15 Meters Spring Extension Cord Hose Reel Industrial Equipment Application
11/2” 15 Meters Spring Extension Cord Hose Reel Industrial Equipment Application
Specifications
Brand Name :
JARCH
Model Number :
JSR-FF9600 OLP
Certification :
CE FCC ROHS
Place of Origin :
China
MOQ :
1 Piece
Price :
USD$100-500/Piece
Payment Terms :
D/P, D/A, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
500Piece/week
Delivery Time :
7 working days
Packaging Details :
Standard Export Paper carton or custom packing
Type :
Spring Retractable Fuel Hose Reel
Application :
Industrial Equipment
Hose I.D. :
1 1/2"
Hose Length :
50 ft./15m
Hose O.D. (in) :
2.000
Hose Included :
No
Pressure (psi) :
600
Inlet (in) :
1 1/2 NPT(F)
Max Temperature (°F) :
210
Warehouse :
USA
Description

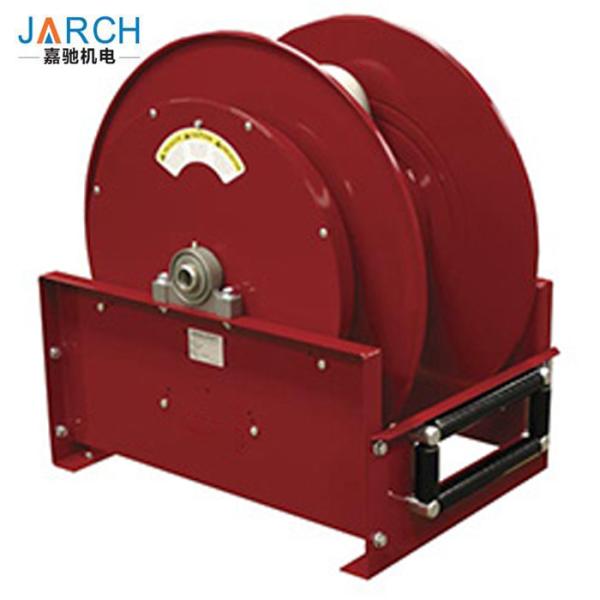

JARCH Spring Retractable Fuel Hose Reel

More details about carbon steel fuel hose reel in PDF click here:Grounding Reels.pdf

Fuel Hose Reel

Introducing our new range of high visibility, high capacity fuel hose reels, engineered for long term performance and reliability.

These professional hose reels are constructed from heavy gauge steel with a durable high gloss powder coat finish and feature over-sized rollers for reduced hose wear.

Available with either a self winding (retracting) or manually cranked drum the our reels ensure that delivery hoses up to 40m in length* are responsibly stored safely away when not in use.

*For larger hose capacities, please contact our sales team on kris@szjarch.cn

Product Description
Spring Retractable Fuel Hose Reel
JARCH's spring retractable fuel delivery reels, equipped with Viton seals, incorporate metal forms to insure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85.
Reel Specifications and Dimensions

11/2” 15 Meters Spring Extension Cord Hose Reel Industrial Equipment Application

11/2” 15 Meters Spring Extension Cord Hose Reel Industrial Equipment Application

15m Spring Retractable Fuel Hose Reel

Benefits

***Substantial base frame - The full width frame has the greatest amount of mounting area and overall strength of reels within its class.

***Full flow stress free swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.

***Long life drive spring - Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.

***Quality finish and corrosion resistant - Individually powder coated components offer the maximum protection from premature corrosion.

CAD Drawings

11/2” 15 Meters Spring Extension Cord Hose Reel Industrial Equipment Application

JARCH 100ft. Spring Retractable Grounding Reels,Industrial-Duty / Heavy-Duty Static Grounding Hose Reels Cable

Parts/accessories

11/2” 15 Meters Spring Extension Cord Hose Reel Industrial Equipment Application

Installation

CAUTION

Be sure reel base is securely grounded to mounting surface. Check for continuity following installation. On painted surfaces, remove paint at bolt location, use external tooth lockwashers or run ground wire from reel base to grounded object. Failure to ground will prevent reel from performing its intended function and could result in personal injury.

Mount reel to grounded, metal surface using four holes in mounting base. To minimize wear on cable and cable guide, reel should be
mounted in direct line with work so that cable is pulled out as straight as possible during use. See figures 1 & 2.

11/2” 15 Meters Spring Extension Cord Hose Reel Industrial Equipment Application

Application

11/2” 15 Meters Spring Extension Cord Hose Reel Industrial Equipment Application

Jarch main products:

1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series

Packaging & Shipping
Packaging Details: Standard Export carton Package
Delivery Details: Delivery time for Sample: 3 days / Delivery time for Order depends on quantity
Shipping:BY DHL, FedEx, UPS or TNT......

FAQ

1.How do I increase or reduce spring tension?
11/2” 15 Meters Spring Extension Cord Hose Reel Industrial Equipment Application

To increase spring tension:

Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.

To reduce spring tension:

This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.

*For Series D9000 reels, you will have to remove the bumper and control handle then feed end of hose through roller bracket assembly to add or remove wraps of hose from the reel drum.

2.How do I install a new drive spring and set pre-turns?

We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.

For how many wraps of "pre-tension" to put on the reel, please reference the chart below.

Spring Number Wraps Required
S400030 18
S404230 13
S504240 19
S505740 13
S503755 21
S600050 21
S600625 13
S600620 19
S504230 17
602718-80 33
602720-100 27
602720-70 25
602721-80 21
602733 33

3.Can my spring driven reel be made "constant tension"?

While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.

Please contact Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.

4.Reel will not latch

This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.

If you have any questions, pls contact us without any hesitation.
