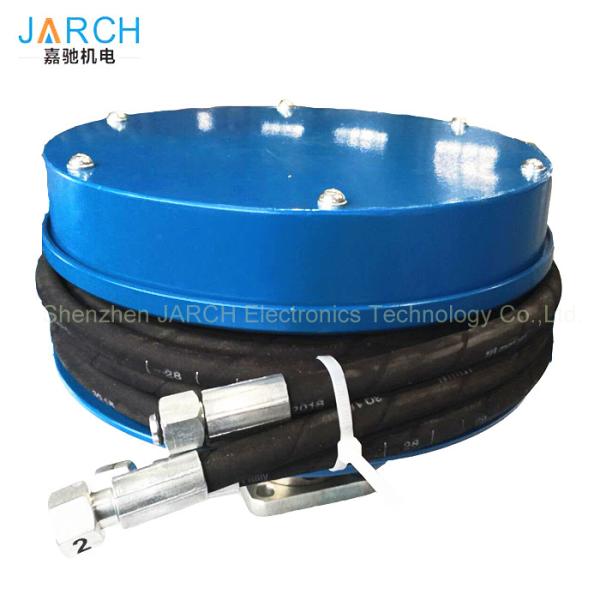

Oil Fuel Retractable Hose Reel High Pressure 3-hose For Construction Machinery reel system
Oil Fuel Retractable Hose Reel High Pressure 3-hose For Construction Machinery reel system
Oil Fuel Retractable Hose Reel High Pressure 3-hose For Construction Machinery reel system
Oil Fuel Retractable Hose Reel High Pressure 3-hose For Construction Machinery reel system
Specifications
Brand Name :
JARCH
Model Number :
JSR-fuel hose reel
Certification :
CE,FCC,ROHS
Place of Origin :
Guangdong,CN
MOQ :
1 Pc
Price :
US$150-500
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
500pcs/week
Delivery Time :
8-15 days
Packaging Details :
Standard Export Paper carton or custom packing
Material :
Metal
Application :
Telecommunication, Live broadcasting transmission - National defence communication
Hose Length :
5~16m
Hose Included :
Yes
Pressure :
10-35Mpa
Diameter :
1/4" ~1/2"
MOQ :
1 Pc
Related item :
Fiber Optic Joint Cable Reel
Description

JARCH 5~16m High pressure 3 channels oil fuel hose reel For construction machinery

Feature:

Item name:3-tube high pressure hose reel

Hose ID.:1/4" ~1/2”

Pressure: 10-35Mpa

Hose length:5-16m

Other item:2-tube hose reel and 4-tube hose reel

Application:Shield machine, roadheader, aerial work vehicle, crane...

Oil Fuel Retractable Hose Reel High Pressure 3-hose For Construction Machinery reel system

Installation

CAUTION

Be sure reel base is securely grounded to mounting surface. Check for continuity following installation. On painted surfaces, remove paint at bolt location, use external tooth lockwashers or run ground wire from reel base to grounded object. Failure to ground will prevent reel from performing its intended function and could result in personal injury.

Mount reel to grounded, metal surface using four holes in mounting base. To minimize wear on cable and cable guide, reel should be
mounted in direct line with work so that cable is pulled out as straight as possible during use.

Packaging & Shipping
Packaging Details: Standard Export carton Package
Delivery Details: Delivery time for Sample: 3 days / Delivery time for Order depends on quantity
Shipping:BY DHL, FedEx, UPS or TNT......

Oil Fuel Retractable Hose Reel High Pressure 3-hose For Construction Machinery reel system

RFQ

1.How do I increase or reduce spring tension?

To increase spring tension:

Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.

To reduce spring tension:

This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.

2.How do I install a new drive spring and set pre-turns?

We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.

3.Can my spring driven reel be made "constant tension"?

While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.

Please contact jarch Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.

4.Reel will not latch

This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.

Oil Fuel Retractable Hose Reel High Pressure 3-hose For Construction Machinery reel system
