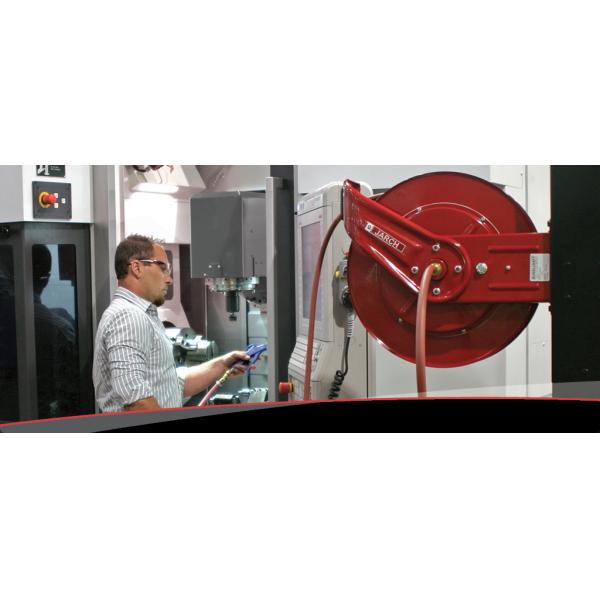

Steel Shaft Retractable Hose Reel , Industrial Ceiling Mounted Extension Cable Reel
Steel Shaft Retractable Hose Reel , Industrial Ceiling Mounted Extension Cable Reel
Steel Shaft Retractable Hose Reel , Industrial Ceiling Mounted Extension Cable Reel
Steel Shaft Retractable Hose Reel , Industrial Ceiling Mounted Extension Cable Reel
Steel Shaft Retractable Hose Reel , Industrial Ceiling Mounted Extension Cable Reel
Steel Shaft Retractable Hose Reel , Industrial Ceiling Mounted Extension Cable Reel
Specifications
Brand Name :
JARCH
Model Number :
JSR-LC670 OLP
Certification :
CE,FCC,ROHS
Place of Origin :
Shenzhen,CN
MOQ :
10 pcs
Price :
USD$250-350/PCS
Payment Terms :
T/T, MoneyGram, Western Union, D/P,PAYPAL
Supply Ability :
10000PCS
Delivery Time :
5-8 WORKING DAYS
Packaging Details :
Standard Export Paper carton or custom packing
Shaft Material :
Steel
Hose Included :
Yes
Weight (lbs) :
47
Hose I.D. (in) :
3/8"
Hose O.D. (in) :
600
Seal Type :
Buna N
Reel Outlet (in) :
1/2 NPT(F)
Max Temperature (°F) :
150
Product name :
Water Hose Reels
Description

JARCH LC670 OLP General Return Water Hose Reels Economical industrial ceiling mounted or wall mounted automatic cable reels

Product Description

JARCH's Series 7000 is very robust and ideal for the most demanding applications. The reel’s base and guide arm are formed from high-grade steel and engineered with structural forms and gussets to yield the greatest amount of strength. The basic reel without hose can be used for air, water or oil. Consult Reelcraft for other products and hoses. Guide arm adjusts to 7 positions.

Reel Specifications and Dimensions

Part Number LC670 OLP70
Series LC
Weight (kg) 20
Hose I.D. (mm) 10 mm
Hose O.D. (mm) 15
Hose Length (m) 21
Pressure (bar) 21
Outlet (in) 1/4 BSPT(M)
Inlet (in) 1/4 BSPT(F)
Hose Included yes
Max Temperature (°C) 65
A 521 mm
B 492 mm
C 121 mm
D 76 mm
E 206 mm

Steel Shaft Retractable Hose Reel , Industrial Ceiling Mounted Extension Cable Reel

Benefits

***Reinforced steel - -The steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight.

***Full flow stress free swivel design - -The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel.

***Long life drive spring - -Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.

***Quality finish and corrosion resistant - -Individually powder coated components offer the maximum protection from premature corrosion.

Packaging & Shipping

Steel Shaft Retractable Hose Reel , Industrial Ceiling Mounted Extension Cable Reel

1.What technical data should be provided for our customized slip ring,Rotary Joint,Hose reel model.

A:

If you want to costomize the special slip ring model, you need provide details as below:

a. Operatring speed(RPM)
b. The type of installation

c. Outline size

d. Channels(the No. of single wire besides cable)
e. Rated voltage & current for power rings and signal rings

f. The signal type and related parameters(very important)

g. Operating temperature h.IP(sealing requirements)

2.How long is your production lead time?

A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.

3.How do I increase or reduce spring tension?
Steel Shaft Retractable Hose Reel , Industrial Ceiling Mounted Extension Cable Reel

To increase spring tension:

Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.

To reduce spring tension:

This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.

*For Series D9000 reels, you will have to remove the bumper and control handle then feed end of hose through roller bracket assembly to add or remove wraps of hose from the reel drum.

Contact Us

If you have any questions, pls contact us without any hesitation.

Steel Shaft Retractable Hose Reel , Industrial Ceiling Mounted Extension Cable Reel
