Product Description:

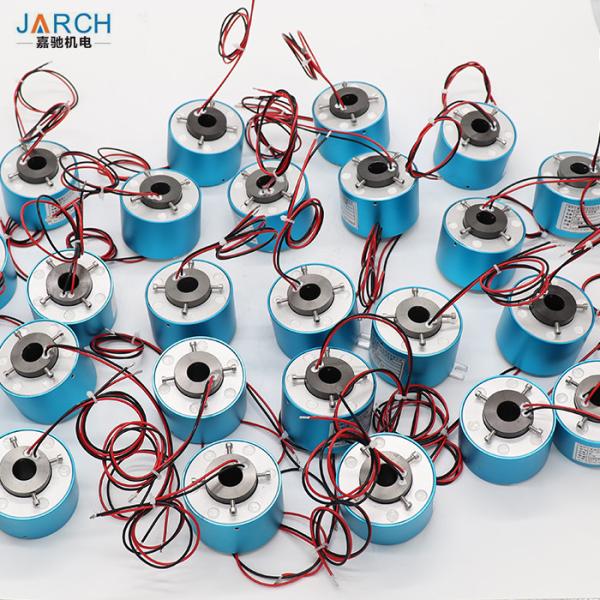

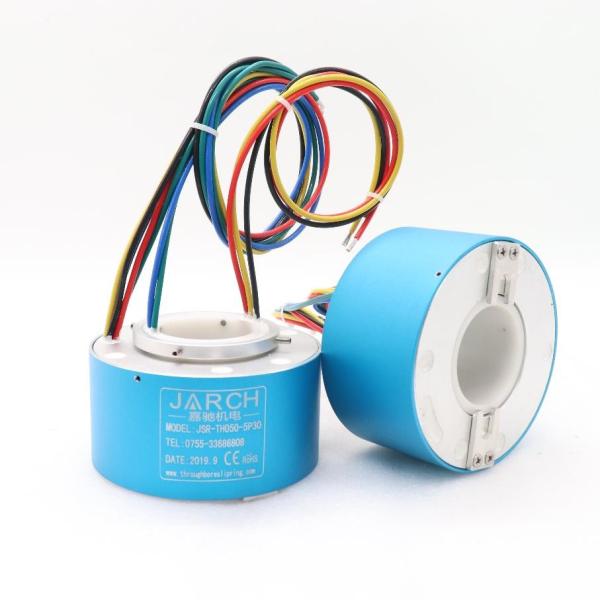

Through Bore Slip Ring is a high-performance and reliable pancake slip ring, designed to provide continuous power and signal transmission between a stationary and rotating structure. It is an all-in-one slip ring solution, with a simple and robust construction that can handle up to 5000RPM. It is made of high quality metal materials such as aluminum, S304, and S316L. The wire length can be customized up to 1M, and the wire gauge is 1. This slip ring is ideal for slip ring cable reel and other applications.

Features:

• Product Name: Through Bore Slip Ring
• Model: JSR-TH
• Protection Level: IP51~IP68
• Type: METAL
• Number of Circuits: 2~64
• Wire Gauge: 1
• Special Features: Pancake Slip Ring, Fiber Optic Slip Ring, Pancake Slip Ring

Technical Parameters:

Applications:

Through Bore Slip Ring, also known as rotary electrical joints, provides reliable electrical power and signal transmission for a variety of rotating applications, including industry slip ring, crane slip ring, slip ring for CNC, etc. JARCH JSR-TH series through bore slip rings are designed with a through bore diameter of 6mm to 500mm, and their current range from 2A to 20A. This series utilizes a TF wire type and comes with an optional wire length of 1m.

JARCH JSR-TH series through bore slip ring is made of superior quality materials and excellent technology to make sure the product is reliable, durable and efficient. It is widely used in automation, robotic systems, wind turbines, rotating platforms, medical researches, etc. This series is built to operate in harsh environments, and it is especially suitable for high-speed rotation applications.

JARCH JSR-TH series through bore slip ring is a great choice for any application that requires reliable power and signal transmission. With its superior quality and performance, JARCH JSR-TH series through bore slip ring is sure to bring convenience and efficiency to your application.

Customization:

JARCH offers customized Through Bore Slip Rings with various specifications. Our model JSR-TH series is designed for industrial use and has the following features:

• Brand Name: JARCH
• Model Number: JSR-TH series
• Place of Origin: Guangdong, China
• Model: JSR-TH
• Voltage: 12V~220V
• Number of Circuits: 2~64
• Through Bore Diameter: 6MM~500MM
• Wire Type: TF

All our Through Bore Slip Rings are designed for reliable performance in the toughest industrial environment. We have years of experience in manufacturing slip rings, slip ring cable reels, and industry slip rings, so you can be sure of the quality of our products.

Support and Services:

Through Bore Slip Rings are supported with technical services and maintenance. Our technical team is knowledgeable in troubleshooting and repairs, as well as providing advice on proper installation and operation. Our technical services include:

• Troubleshooting and repairs
• Advice on proper installation and operation
• Rotation and signal testing
• Replacement parts and components
• Warranty and repair services
• Repair and maintenance contracts

Packing and Shipping:

Through Bore Slip Ring Packaging and Shipping:

We package our Through Bore Slip Rings in cardboard boxes for optimum protection and shipping. The boxes are filled with foam to protect the product from any kind of external shock. We use a reliable courier service for shipping the products and ensure that the products reach the customer in perfect condition.
