Through Bore Slip Ring fiber optic rotary joint sliprings

Through Bore Slip Ring Product Details

Whether you’re looking for a wind generator slip ring, slip rings for robotic manufacturing equipment, or a solution for any other challenging application, JARCH has what you need. General specifications for our hollow shaft slip rings are listed below.

Custom slip rings are also available—Contact us to discuss your custom requirements.

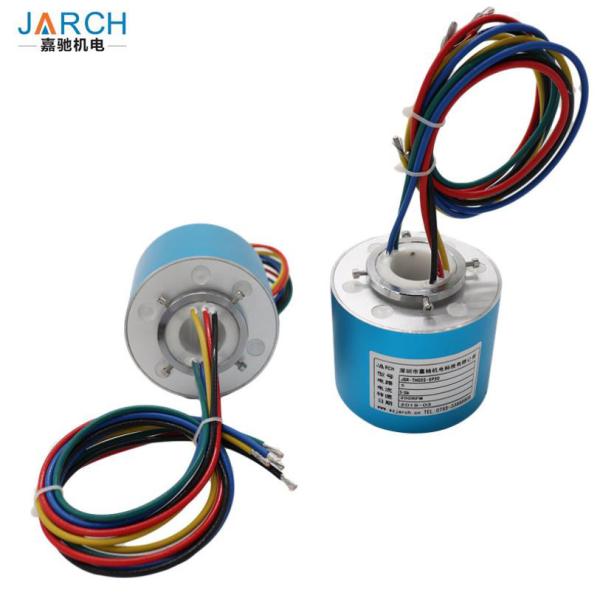

JARCH TH Series Through Bore Slip Rings
JARCH TH Series through bore slip rings are ideal for applications where signals and power need to be transferred, and a through-hole is required to pass either a shaft or other feed through. Designed for compact spaces, they are especially well-suited slip rings for use in wind turbines and generators.
High Performance, Long-Life Hollow Shaft Slip Rings
Also known as hollow shaft slip rings, our through bore slip rings use a modular design that allows for unprecedented flexibility with respect to package size and circuit count. We can provide numerous combinations of high current power circuits and low current signal circuits to meet your application requirements.
Standard units can be supplied in any of ten standard sizes, with bore diameters from 3mm to 100mm. Large diameter through bore slip rings are available as custom solutions.
TH Series hollow shaft slip rings use Orbex’s advanced channeled brush technology to greatly increase service life. This innovative design provides multiple contact points and low contact force, dramatically reducing wear in demanding applications.

Features & Benefits of TH Series Through Bore Slip Rings

• Multiple sizes available
• Modular design
• Durable construction for long working life
• Maintenance free operation
• Easily customizable—Contact us for custom slip ring units
• CE and RoHS Compliant

Common Hollow Shaft Slip Ring Applications

• Wind generator slip rings
• Rotary tables
• Packaging machinery
• Bottling machinery
• Cable reel through bore slip rings
• Robotic and automated equipment
• Machinery turrets and tool changers
• Medical equipment
• Downhole inspection equipment
• Pan and tilt heads

Contact JARCH today for the through bore electric slip rings your application needs. Contact us for CAD files and solid models.
