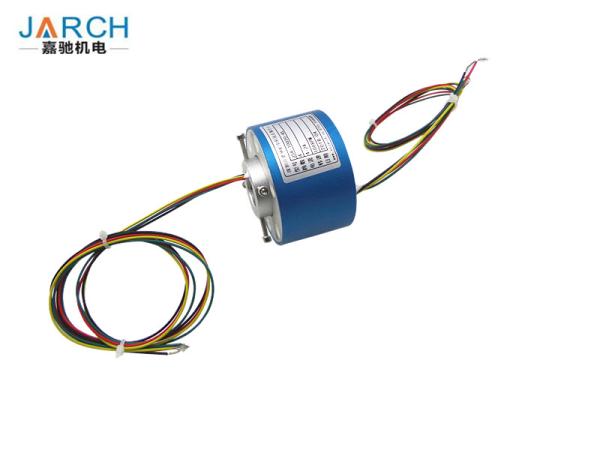

Electric Slip Ring for 6 Circuits 5A Through Hole Sliprings with Hole Bore 12mm OD Size 35mm Signal Rotary Union

JARCH TH Series through bore slip rings are ideally suited for electric slip ring applications where signals and power need to be transferred, and a through hole is required to pass either a shaft or other feed through.

Model Explanation:

The TH012 uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force and low contact wear. It provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 6.0mm through-bore for routing hydraulic or pneumatic lines. The 2~5 amps /circuit are available in 1-24 ring.

TH12 Series standard percise slip ring,intergrated structure design,with though hole 12.7mm,OD35mm,suitable for rotating application which requires a through hole <=12.7mm( remark:if need a hole <12.7mm,can add a inner bushing)

• Standard Current is 5A(can be paralleling wires use as 10A)
• Max rotating speed:250RPM,600RPM,1000RPM (optional);
• Contact material used precious metal,ensure the stability and working life;
• More smooth rotation,lower torque and lower dynamic resistance.
• Voltage: 220V-380V
• Cable length: 300mm
• Lead wire: Telfon AWG22

· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Available with Ethernet
· Rapid delivery

12.7mm Series

Applications of JARCH 12.7mm Stable Performance Through Bore Slip Ring , 500RPM 12A Rotary Connector:

• Exhibit/display equipment

• Packaging / wrapping machinery

• Semiconductor handling systems

• Industrial machinery

• rotary index tables

• Process control equipment

• Heavy equipment turrets or cable reels

• Emergency lighting, robotics Palletizing machines, Option

• Medical equipment | rotary sensors, emergency lighting, robotics

• Miniature cable reels

Installation Instructions:

Shaft Mounted

Flange mounted:

JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
