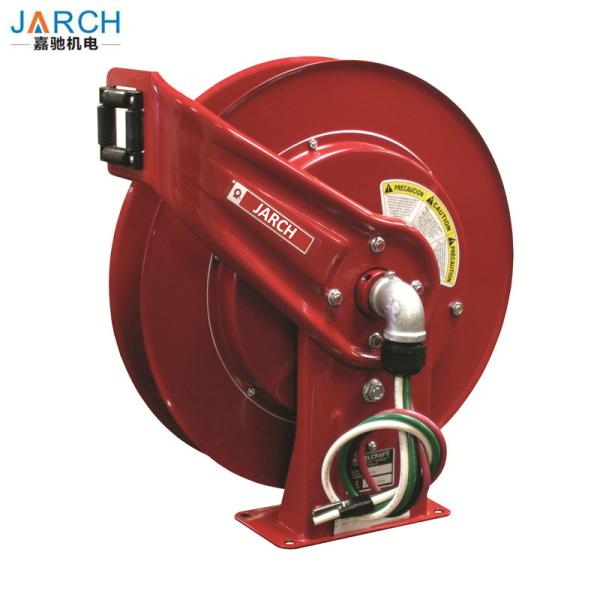

Electric Spring Loaded Heavy Duty Cord Cable Reel For Theatrical Lighting Bar Stage 32a Cable Reel Slip Ring
Electric Spring Loaded Heavy Duty Cord Cable Reel For Theatrical Lighting Bar Stage 32a Cable Reel Slip Ring
Electric Spring Loaded Heavy Duty Cord Cable Reel For Theatrical Lighting Bar Stage 32a Cable Reel Slip Ring
Electric Spring Loaded Heavy Duty Cord Cable Reel For Theatrical Lighting Bar Stage 32a Cable Reel Slip Ring
Specifications
Brand Name :
JARCH
Model Number :
JSR-L7000
Certification :
FCC,ROHS,CE
Place of Origin :
China
MOQ :
1 PCS
Price :
US$150-300/PCS
Payment Terms :
T/T, D/P, Western Union,PAYPAL,CC
Supply Ability :
2000PCS/MONTH
Delivery Time :
10 DAYS
Packaging Details :
Standard Export Paper carton or custom packing
Weight (lbs) :
41
Cord Ending :
Bare Reel
AWG :
6
Cord/Cable Length (ft) :
35
Volts :
220
Amps :
45
Conductors :
4
Cord/Cable Included :
no
Type :
SOOW
Description
Heavy Duty Cord Reel cable reel 16a 32a dmx cat6 hdmi network cable reel for Theatrical Lighting Bar Stage

Product Description

JARCH's series L 7000 power cord reels offer many different styles of outlets. Easy to mount and structurally strong, the power cord reels have robotically welded heavy gauge steel frame that attaches to most structurally sound surfaces. For indoor, non-weather tight applications only.

Electric Spring Loaded Heavy Duty Cord Cable Reel For Theatrical Lighting Bar Stage 32a Cable Reel Slip Ring


*** Reinforced steel - The robotically welded steel base offers maximum strength and consistent quality.


*** Heavy duty collector ring - A robust collector ring assures maximum conductivity current flow.


*** Long life drive spring - Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.


*** Quality finish and corrosion resistant - Individually powder coated components offer the maximum protection from premature corrosion.

Electric Spring Loaded Heavy Duty Cord Cable Reel For Theatrical Lighting Bar Stage 32a Cable Reel Slip Ring

Electric Spring Loaded Heavy Duty Cord Cable Reel For Theatrical Lighting Bar Stage 32a Cable Reel Slip Ring

Reel Specifications and Dimensions

Electric Spring Loaded Heavy Duty Cord Cable Reel For Theatrical Lighting Bar Stage 32a Cable Reel Slip Ring

Parts/Accessories

Electric Spring Loaded Heavy Duty Cord Cable Reel For Theatrical Lighting Bar Stage 32a Cable Reel Slip Ring

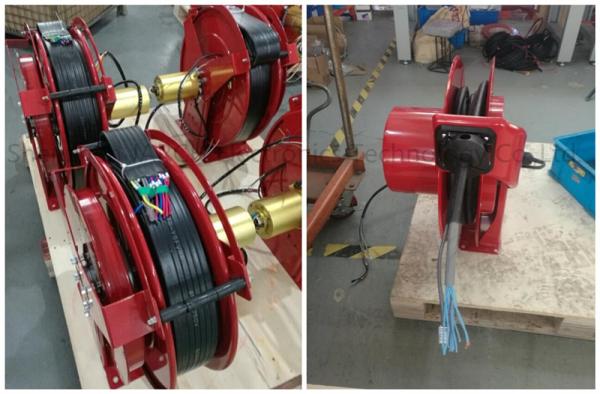

Product Effects

Electric Spring Loaded Heavy Duty Cord Cable Reel For Theatrical Lighting Bar Stage 32a Cable Reel Slip Ring

FAQs

1. Can my spring driven reel be made "constant tension"?

While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.

Please contact JARCH Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.

2. Reel will not latch

This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.

Electric Spring Loaded Heavy Duty Cord Cable Reel For Theatrical Lighting Bar Stage 32a Cable Reel Slip Ring

Electric Spring Loaded Heavy Duty Cord Cable Reel For Theatrical Lighting Bar Stage 32a Cable Reel Slip Ring
