24V AC/DC Retractable Hose Reel Explosion proof Electric Motor Driven hose reel 5000PSI
24V AC/DC Retractable Hose Reel Explosion proof Electric Motor Driven hose reel 5000PSI
24V AC/DC Retractable Hose Reel Explosion proof Electric Motor Driven hose reel 5000PSI
24V AC/DC Retractable Hose Reel Explosion proof Electric Motor Driven hose reel 5000PSI
Specifications
Brand Name :
JARCH
Model Number :
JSR-NJH19000
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
US$500~1000/set
Payment Terms :
D/P, T/T, Western Union,Paypal
Supply Ability :
1000set/month
Delivery Time :
7~15 days
Packaging Details :
Standard Export Paper carton or custom packing
Hose Reel Type :
Empty Hose Reels
Diameter :
1/2''
Pressure :
5000PSI
Hose Length :
100ft,200ft
Inlet :
1/2" NPT(F)
Material :
Metal
Description

JARCH Hose Reels 24V AC/DC Explosion-proof Electric Motor Driven Cable Reels

Product Description

JARCH's Series 30000 hose reels are designed for rugged, heavy duty applications requiring long lengths of hose and large storage capacity. All-bolted unitized construction with no welds to fatigue, full flow swivel and heavy gauge steel frame, spool and drum ensure longest service life. The Series 30000 vibration-proof, self-locking fasteners are ideal for industrial or field use such as turf care or pest control.

24V AC/DC Retractable Hose Reel Explosion proof Electric Motor Driven hose reel 5000PSI

Reel Specifications and Dimensions

Weight 63 lbs
Series 30000
Hose I.D. 1/2"
Hose O.D. 0.850"
Hose Length 100'
Pressure 5000 psi
Inlet 1/2" NPT(F)
Reel Outlet 1/2" NPT(F)
Hose Included No
Max Temperature 210 °F

Fluid Path Materials

Shaft Material Steel
Gooseneck Material

Ductile Iron

When you need to go the extra distance and not want to bust your back, this is the reel for you. Stores up to 175 feet of the fuel hose. Designed for rugged, heavy-duty applications requiring long lengths of hose and large storage capacity. All-bolted unitized construction with no welds to fatigue, full flow swivel, and heavy gauge steel frame, spool, and drum ensure the longest service life. Series 30000 are vibration-proof and have self-locking fasteners.

  • Hose replacement made easy - the goose neck can easily be removed to simplify adding long lengths of hose to the reel.
  • Full flow stress free swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.
  • Quality finish and corrosion resistant - Individually powder coated components offer the maximum protection from premature corrosion.
  • 12V DC Explosion Proof Motor - provides an easy method to rewind long lengths of hose.

24V AC/DC Retractable Hose Reel Explosion proof Electric Motor Driven hose reel 5000PSI

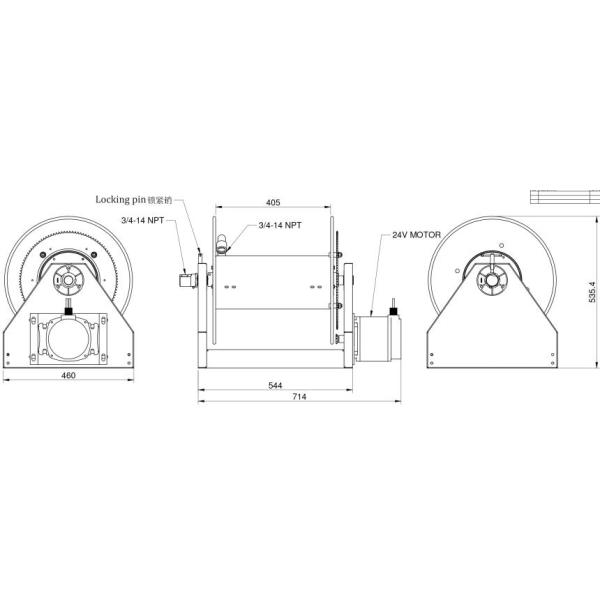

Outline Drawing

24V AC/DC Retractable Hose Reel Explosion proof Electric Motor Driven hose reel 5000PSI

24V AC/DC Retractable Hose Reel Explosion proof Electric Motor Driven hose reel 5000PSI
