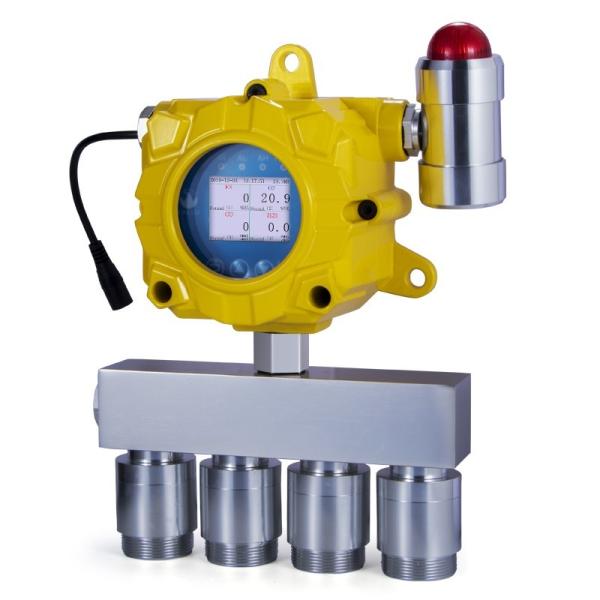

Multi 4 In1 EX O2 CO H2S Fixed Gas Detector
Multi 4 In1 EX O2 CO H2S Fixed Gas Detector
Multi 4 In1 EX O2 CO H2S Fixed Gas Detector
Multi 4 In1 EX O2 CO H2S Fixed Gas Detector
Multi 4 In1 EX O2 CO H2S Fixed Gas Detector
Multi 4 In1 EX O2 CO H2S Fixed Gas Detector
Specifications
Brand Name :
BOSEAN
Model Number :
K-G60-S4
Certification :
FCC, CE, RoHS, SIL, ATEX
Place of Origin :
China
MOQ :
Negotiation
Price :
$40-$300
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Credit Card
Supply Ability :
100units per day
Delivery Time :
1-7 days
Packaging Details :
gas detection system will be packed with the export standard carton package or aluminum box or as per customer require
Name :
Fixed Gas Detector
EX :
0-100%LEL
O2 :
0-30%vol
CO :
0-1000ppm
H2S :
0-100ppm
Detection method :
diffusion, pump
Description

K-G60-S4 Fixed Gas Detector

Introduction

Multi 4in1 fixed gas detector, can detect EX,O2,CO,H2S (support other gas combinations),have ATEX, CE, FCC, ROHS, SIL certification.

Specification

Gas type EX O2 CO H2S
Range 0-100%LEL 0-30%vol 0-1000ppm 0-100ppm
Resolution 1%LEL 0.1%vol 1PPM 1PPM
Sensor type support electri-chemical, Catalytic ,semi-conductor, PID, infrared sensors
Detection method diffusion, pump
Installation wall mounted, pipe line (Thread size: G1/2)
Working voltage DC(24+-3.6)V power: 1.6W
Response time ≦30s (T90)
Deviation ±3%FS
Repetition ≦2%
Relay two relay output, free contact: 30VDC 1A/125VAC 0.3A
Degree of protection IP65
Explosion-Proof Ex d II T6 GB
Shell material Die-casting aluminumExplosion-proof and anti-corrosion
Thread size M20X1.5 , G1/2
Dimension 261*177*90mm cable: ＞4x1.5mm2 shielded cable
Working temperature -10℃-50℃
Working humidity ≦95% RH, no condensation
Working pressure 86-106Kpa

Details

With all advantages: accurate, strong, easy to operate, safe!
*Specially made shell,Authority certified
Thickened shell, encrypted screw port, special alloy material, national professional organization certification, sealed off any fire source, waterproof, dustproof and explosion-proof performance, overall indestructible, and super high corrosion resistance in harsh environments.
*Powerful
High-efficiency ultra-optimized computing system, coupled with cutting-edge semiconductor nano ultra-low power 32-bit microprocessor and 24-bit ADC data acquisition chip, Seiko Heart creates a new standard of reliability and durability, giving you a new stability experience.
*High-quality industrial grade sensors
Superior sensors are the key to K-G60-S4's data accuracy and long life. Every sensor must go through supplier selection, sensor model selection, market reputation inspection, storage quality inspection, workshop testing and other layers before entering the production line. Levels to ensure their quality.
*Standard RS485 output is widely compatible
Standard MODBUS RTU protocol is standard, which is generally compatible with the popular gas alarm control equipment on the market, and the signal transmission distance is up to 1 km. The installation and wiring are simple and the operation range is large, flexible and convenient.
*Real-time data on-site display
2.0-inch high-definition backlight multi-parameter display screen is selected, and the real-time concentration of each gas can be checked at any time on the spot.
*Different alarming method, keeping security
all four kinds of measured gases can be set with two different warning alarm levels: high and low, making two safety levels guarantee for the site.
