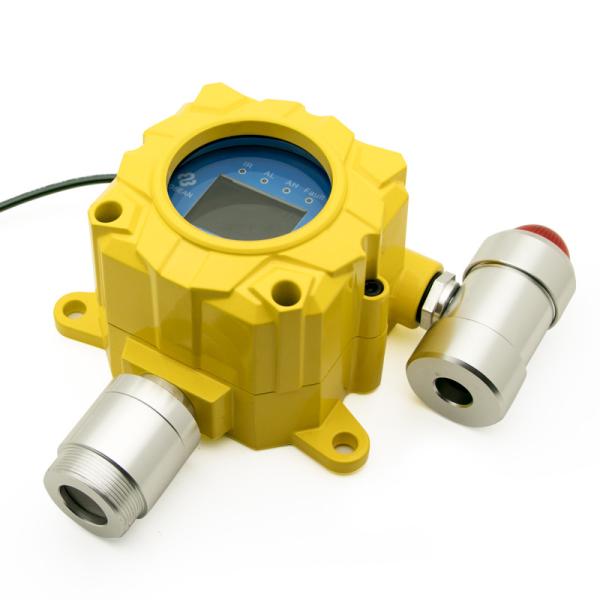

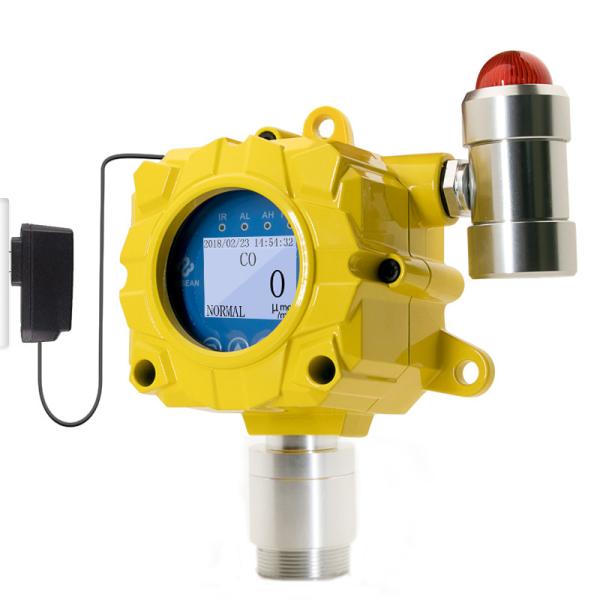

K-G60 This gas detector by the world famous brand gas sensor elevation precision Operation signal Processing module, its output of the standard signal can be easily introduced into the DCS,PLC system or other data acquisition system, to achieve alarm and control. Lies in my company's gas alarm controller combination can be used to achieve the function of gas detection and alarm system. The detector is widely used in oil and gas, chemical industry, metallurgy, oil depot, steel, gas station and other places where all dangerous gases exist because of its economic benefits, stable performance and simple installation and maintenance. Is the enterprise to the person and the equipment safety guarantee.

Parameters of K-G60 Remote Industrial Fixed standalone gas detector

* 32-bit built-in MCU, high reliability and self-adaptation ability.

* Adopt 2.0-inch CSTN colorful LCD with a resolution of 320x240;

* PPM, %VOL, mg/m3, umol/mol, five concentration units can be switched;

* Can be connected with computer;

* Independent gas chamber, sensor replacement is not required on-site calibration;

* Full range temperature digital automatic tracking compensation to ensure measurement accuracy;

* Full software calibration function, users can also self-calibration, with 4 buttons to achieve;

* With over-voltage protection, lightning protection, short circuit protection, reverse connection protection, anti-static dry

Disturbance, anti-magnetic field interference;

* Full software calibration, up to 3 levels of sensor calibration of the sensor to ensure the accuracy and linearity of the measurement;

* Can be operated with infrared remote control, no need to open it.

Technical Data

1. Detecting gas: Please see the appendix

2. Detection principle: electrochemical or catalytic or infrared or PID’s principles

3. Sampling Method: wall, pipeline, flow-through (with the monitoring of the environment-related)

4. Resolution: 0.01ppm or 1ppm or 1% vol or 1%LEL

5. Precision: ≤±3%F.S, linear error: ≤±1%F.S

6. Output signal: 4-20MA ,0-5V, RS485, relays, wireless digital (optional)

7. Response Time: ≤ 20S Recovery Time Recovery Time ≤ 10S

8. Repeatability: ≤ ± 1% F.S linearity error: ≤±1%F.S

9. Zero shift: ≤ ± 1% (FS / year) Display Technology Display high brightness LCD display

10. Connection mode: G1 / 2 male proof hose pipe thread size Thread size M20 * 1.5mm

11. working temperature: -20℃-50℃

12. Explosion-Proof Ex d II T6 GB, Degree of protection IP65

13. working voltage: DC 24V±15%

14. Dimensions: 200×180×90mm
