ATEX Approved Multi Gas Detector , Battery Power Portable Co Detector
ATEX Approved Multi Gas Detector , Battery Power Portable Co Detector
Specifications
Brand Name :
Bosean
Model Number :
K-400
Certification :
CE,FCC,ATEX,ROHS,SIL
Place of Origin :
Zhengzhou,Henan,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000PCS/DAY
Delivery Time :
3-8 WORK DAYS
Packaging Details :
each set detector alarm will be packed with the export standard carton package or aluminum box or as per customer require
Product Name :
K-400 4in1 Gas Detector
Color :
Red
Detecting Gas :
Co, H2s, O2, Lel
Battery :
Rechargeable Lithium Battery
Sampling :
Diffusion
Response Time :
30s
Work Temperature :
-20~60 Degree
Certificate :
Atex
Sampling Method :
Diffusion Sampling
Application :
12 Months
Sensor :
Catalytic or Electrochemical or Infrared
Indication :
LCD Indicates
Safe Degree :
Intrinsically Safe
Description

Bosean gas detector OEM acceptable personal H2S CO O2 and Combustible gas detector

Description

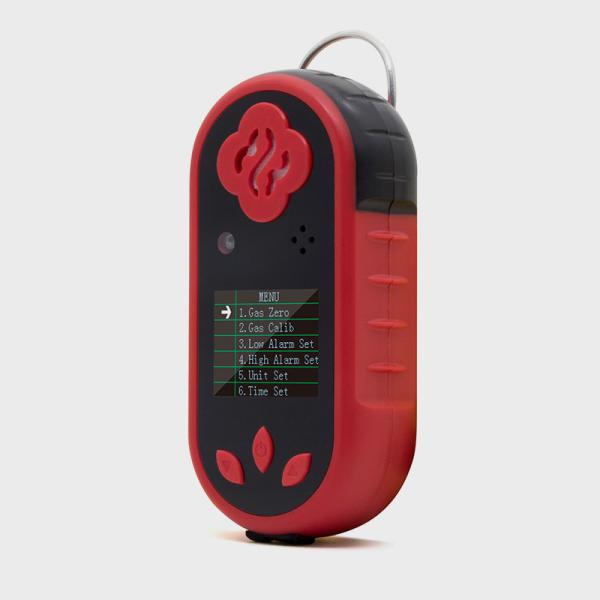

K400 Portable multi gas detector can detect four kinds of poisonous and harmful gas in air in the real time, it used natural diffusion sampling,when the gas concentration exceed a presetted alarm point, it will make flashing,vibration and audible alarm. It has two buttons and with liquid crystal display. The price is based on four gases CH4+CO+H2S+O2, if you need test other gases pls contact us.

Parameters

Operating & Storage Environment

Temperature: -20°C~55°C (-4F~122F)
Humidity: 5%-95% (Relative humidity non-condensing)
Pressure: 95~110kPa

Sampling method

Diffusion type

Detecting Range

CO: 0~1000ppm
H2S:0~100 PPM
O2: 0~30%vol
Combustible Explosive Gas (Ex / LEL / CH4): 0~100%LEL

Sensor

O2 /H2S / CO: plug-in electrochemical sensor

Alarm Type

low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm

Resolution

0.1%VOL (O2), 1ppm (CO), 0.1ppm (H2S), 1%LEL (EX)

Data record

500 sets of data storage

Display

Alphanumeric large LCD displays the real-time gas concentration and alarm stage

Backlight

Automatically activated when working in poor lighting environment or the alarm sounding or the button is knobbed down.

Self-checking Function

Self-checking Battery power, display, sensor, hardware failure

Explosion-proof

EXiaIICT4

Protection grade

IP65

Power Supply

Rechargeable lithium battery

Feature

1. Foreign double plastic molding technology;
2. Customize 1-5 kinds of five gases;
3. adopt international fast charging technology, charging only 4 hours, use more than 8 hours;
4. support UART / 485 / USB three output modes, the default USB;
5. Honeywell high-end brand CT sensor, anti-poisoning;
6. waterproof, dustproof and explosion-proof
7. modular design, easy maintenance, simple operation

ATEX Approved Multi Gas Detector , Battery Power Portable Co Detector


Application

Our customers

Measurable Gas Meter

No

Detecting Gas

Gas

Measure Range

Resolution

Alarm Point
(High / Low)

1

Combustible Gas

EX

0-100%LEL /0-100%VOL

1%LEL/1%VOL

20 / 50% LEL

2

Oxygen

O2

0-25% /30%VOL

0.1%VOL

19.5% / 23.5%VOL

3

Hydrogen Sulfide

H2S

0-50/100/200/1000 ppm

0.1 ppm

10 / 20 ppm

4

Carbon Monoxide

CO

0-500/1000/2000/5000 ppm

1 ppm

50 / 150 ppm

5

Nitrogen Dioxide

NO2

0-20/50/1000 ppm

0.1 ppm

5 / 10 ppm

6

Nitric Oxide

NO

0-250/500/1000 ppm

1 ppm

50 / 150 ppm

7

Carbon Dioxide

CO2

0-5000 ppm /0-1%/5%/10%VOL

1 ppm/0.1%VOL

1000 /2000 ppm

8

Sulfur Dioxide

SO2

0-20/50/100/200/1000 ppm

0.1 /1 ppm

5 / 10 ppm

9

Chlorine

CL2

0-20/100/1000 ppm

0.1 ppm

5 / 10 ppm

10

Ammonia

NH3

0-50/100/500/1000 ppm

0.1 ppm

20 / 50 ppm

11

Hydrogen

H2

0-1000/5000 ppm

1 ppm

50 /150 ppm

12

Phosphine

PH3

0-5/20/50/100/500/1000 ppm

0.1 ppm

5 / 10 ppm

13

Hydrogen Chloride

HCL

0-20/500/1000 ppm

0.01/0.1 ppm

5 / 10 ppm

14

Chlorine Dioxide

CLO2

0-10/50/100 ppm

0.1 ppm

5 / 10 ppm

15

Hydrogen Cyanide

HCN

0-50/100 ppm

0.01/0.1 ppm

10 / 20 ppm

16

Ethylene Oxide

C2H4O

0-10/20/50/100/200/500 ppm

0.1 /1 ppm

20 / 50 ppm

17

Ozone

O3

0-10/20/100 ppm

0.1 ppm

2 / 5 ppm

18

Formaldehyde

CH2O

0-20/50/100 ppm

0.1 /1 ppm

5 / 10 ppm

19

Hydrogen Fluoride

HF

0-1/10/50/100 ppm

0.01 /0.1 ppm

2 / 5 ppm

20

Methylbenzene

0-1/10/20/50/100 ppm

0.01 /0.1 ppm

5 / 10 ppm

Note: The above table is a general parameter. If you need other gas and range, please contact our online customer service.

FAQ

1. What's the minimum order?

1 piece

2. What about the lead time?

We usually deliver the goods in 2-5 working days after the order confirmed

3. How do you ship the goods and how long does it take to arrive?

We usually ship by DHL. UPS. FedEx or TNT. It usually takes 2-5 davs to arrive. Airline and sea shipping are also optional.

4. Is it OK to print my logo on the gas detector?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

5. Do you offer guarantee for the products?

Yes, we offer 1 year warranty to our products.
