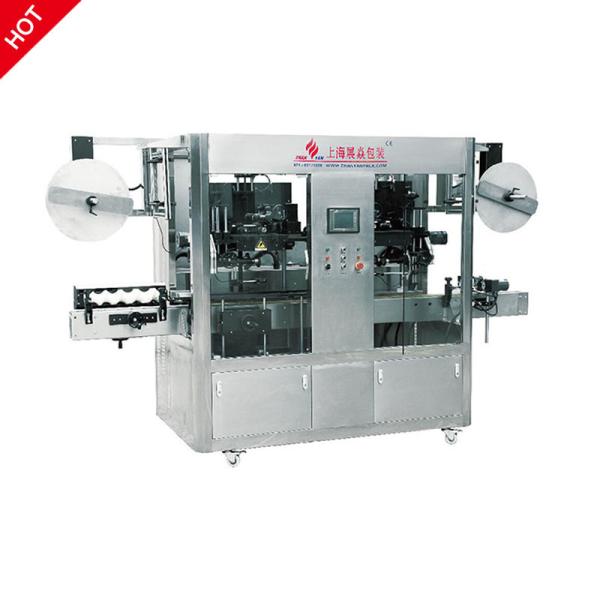

Thermal Shrinkage Bottle Label Applicator Machine Full Automatic 3730*1314*2050mm
Thermal Shrinkage Bottle Label Applicator Machine Full Automatic 3730*1314*2050mm
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
Zhanyan
Model Number :
ZYP series labeling machine
Certification :
CE Certificate
Supply Ability :
30 Set/Sets per Month
Packaging Details :
1.For packing, generally we use wood box outside as the pictures shows, with pallet. 2.Generally size around 2100*850*2000mm(min),Up to model.the big kinds can reach 3700*1314*2200mm. 3.Weight range from 600kg to 4 T, pls confirm accurate transport
MOQ :
1 Set/Sets
Price :
Negotiable
Packaging Type :
wood box
Packaging Material :
Plastic, Wood
Type :
Labeling Machine
Condition :
New
Application :
Beverage, Chemical, Commodity cosmetic,
Automatic Grade :
Automatic, Full Automatic
Driven Type :
Electric, Electric
Voltage :
220V, 380V, 220V,380V, 50Hz, 60Hz
Power :
generally from 1.5KW-26KW
Dimension(L*W*H) :
2100*850*2000mm(min),Up to model.
Weight :
600-4000KG/SET
Name :
Bottle sleeve labeling machine
HS code :
84223090.90
Label Material :
OPP, BOPP, PVC, PE, PAPER, PP
Label Thickness :
0.03-0.013mm
After-sales :
Engineer available to service overseas
Labeling speed :
based on different kinds of machine
After-sales Service Provided :
Engineers available to service machinery overseas
Port :
Shanghai, or other negotiated ports you need
Description
Product Description

1. Product Name:

HLML5- Linear OPP Labeling Machine,(Hot melt glue labeling machine)

2. Product Feature:

HLML5 automatic hot melt gule labeling machine, it is widely used for different material of bottles, cans,jars and so on. The label label cost is comparatively lower, the machine can meet requirement of those users who have variety of containers. It is most economical models on cost to make mass production.

The equipment has massive modularization design concept to make it easy and simple to change bottles. whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, changing the label is only needed to change the program, the machine is embodies the concept that it is used for users and considered for users in everywhere.

3.Technology Parameters:

Machine Machine Model HLML5
Capacity Max18000BPH
Size L*W*H 3730*1314*2050mm
Weight 2200KG around
Power Supply 220/380V, 50Hz,60Hz,
Total Power 13.5KW
Label Materials OPP,BOPP, PVC, PE, PAPER, PP
Label and Bottle Label Thickness 0.03-0.13mm
Label Size Max L330mm, Max W 170mm
Bottle Diameter Ø40-Ø100mm
Bottle Material Glass,Metal,Plastic and others
Bottle Shape Round bottles
Other Operation Manner Full Automatic
Gas Supply 0.6MPa
Noise Max 80db

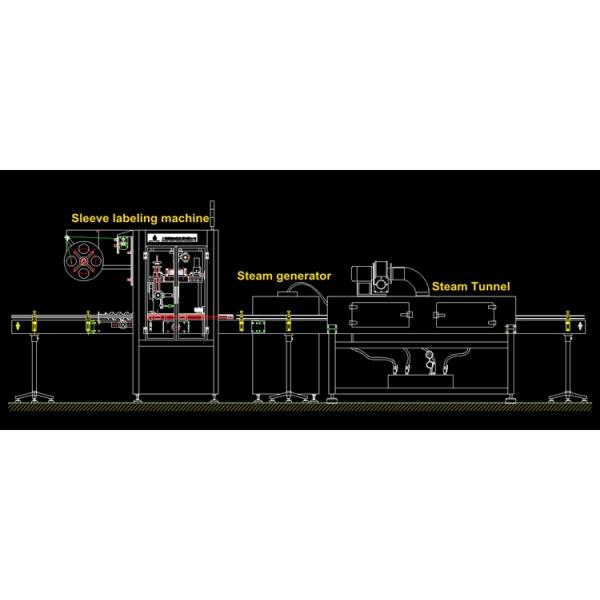

layout

Sleeve labeling line:

Thermal Shrinkage Bottle Label Applicator Machine Full Automatic 3730*1314*2050mm

Thermal Shrinkage Bottle Label Applicator Machine Full Automatic 3730*1314*2050mm

Remark:

(1) Please confirm the direction to feed bottles from the left to right, or from the right to left is optional

(2)The height of conveyor can be changed as request.

Fitting list:

Fittling List:

Function units

Electric appliance

Type

Qty

Manufacturer

Lifting platform

Small power AC Motor

5IK90GU-CF-25KB

1

ZD

Label to be b rushed down

Small power AC Motor

5IK120A-CF

1

ZD

Labels feeding unit

Small power AC Motor

RV50-15K-180

1

SANI

Frequency transducer

ATV12H018M2

1

SCHNEIDER

Photo sensor

CX-421

1

SUNX

Bottles keeping belt

Small power AC Motor

5IK90GN-SF-5GN12.5KW

1

ZD

Frequency transducer

ATV12H018M2

1

SCHNEIDER

Bottles separating unit

Small power AC Motor

5IK90GN-SF-15K

1

ZD

Frequency transducer

ATV12H018M2

1

SCHNEIDER

Brushes unit

Small power AC Motor

4IK25GN-C-4GN0.75K

2

ZD

Cutter unit

Knife disc motor

BCH0801*1*1*1C(400W)

1

Panasonic

Knife disc servo

LXM23DU04M3X(400W)

1

Panasonic

Micro Photo sensor

PM-L44

2

SUNX

Driving unit

Driving motor

BCH0801*1*1*1C(750W)

1

Panasonic

Driving servo

LXM23DU04M3X (750W)

1

Panasonic

Electric eyes

High-speed optical sensor

FX-301

1

SUNX

Bottles sensor

Photo sensor

CX-442

1

SUNX

Conveyor

Frequency transducer

ATV12H075M2

1

SCHNEIDER

Motor

RV50-25K-0.75KW

1

SANI

steam shrink tunnel

Steam Shrink Tunnel:

Item Models

ZYP-2000M

Blower powder supply

Ø12, 0.25KW

Powder supply

380v/220v/50hz

Running pressure

Max 0.6Mpa

Weight

230kg

Steam consumption

24kg/h

Conveyor speed

0~35m/minute

Outline size

L2000*W400*H1500 mm

Thermal Shrinkage Bottle Label Applicator Machine Full Automatic 3730*1314*2050mm

Steam generator:

Steam Generator:

Items

ZYP-24KW

Steam generating (kg/h)

36

Rating steam pressure(Mpa)

0.4/0.7

Steam temperature (℃)

151/170

Power (KW)

12-24KW

Pump motor power (KW)

750

water volume in boiler (L)

42

Size of appearance (mm)

600x600x1280

Gross weight (kg)

91

Thermal Shrinkage Bottle Label Applicator Machine Full Automatic 3730*1314*2050mm

Packaging & Shipping

Thermal Shrinkage Bottle Label Applicator Machine Full Automatic 3730*1314*2050mm

Pallet Available picture

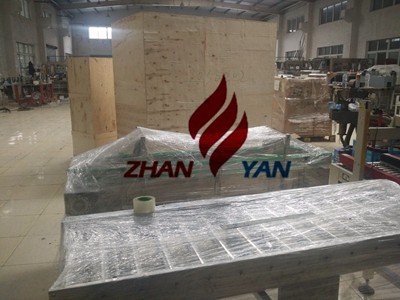

Inner Package Plastic Material Thermal Shrinkage Bottle Label Applicator Machine Full Automatic 3730*1314*2050mm

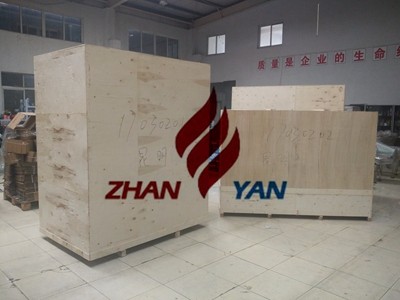

Outer Package Wooden Box Thermal Shrinkage Bottle Label Applicator Machine Full Automatic 3730*1314*2050mm

Thermal Shrinkage Bottle Label Applicator Machine Full Automatic 3730*1314*2050mm

FAQ

Thermal Shrinkage Bottle Label Applicator Machine Full Automatic 3730*1314*2050mm

1.Question: What's your main products?

Reply: we produce ZYP-series sleeve labeling machine and HLML-series OPP labeling machine;

2.Question: Are you factory?

Reply: Yes, Our factory located in Shanghai(Add:158-F Huiping Road,Nanxiang High-tech Industries Park,Jiading,Shanghai);

Our new factory in Taicang city is under construction now;

3.Question: If I have special needs about design about the bottle label and machine,can you do that for me?

Reply: we can design under your needs, based on the bottle/label sample, we also can supply plant engineering service for you;

4.Question:How about your after-sale service?

Reply: we have professional technical department to ensure the machine functioning well, both hardware and software technology;

5.Question:Can we visiting your factory and production site?

Reply: we really welcome your visiting, as the pictures up shows, in the past years, many customers from all over the world visited and cooperated with us.

We wish can serve the best packing labeling machine and service for you.

Thermal Shrinkage Bottle Label Applicator Machine Full Automatic 3730*1314*2050mm
