Specifications
Brand Name :
Reliable Water Bottle Making Machine
Model Number :
RM-4000HF Water Bottle Making Machine
Certification :
CE&ISO SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
Negotiable
Supply Ability :
10 Set/Sets per Month Bottle Blow Molding Machine
Packaging Details :
The normal packages is wooden box. If export to Europe Country, the wooden box will be after fumigated. If enter container the packages is too tighter, we may use PE film to wrapping the machine. or according customer special request. Reliable Machinery
Application :
Bottle, Water Bottle
Blow Moulding Type :
Stretch Blow Moulding
Blowing speed :
6500BPH for 0.5L
Bottle Volume :
100~2000ml
Cavities :
4 Cavities
Plastic Type :
PET,PP,Plastic Drinking Water Bottle
Description
High Capacity And Speed New Type Drinking Water Bottle Rotary Blowing Machine

Specifications of Rotary Stretch Blow Machine:

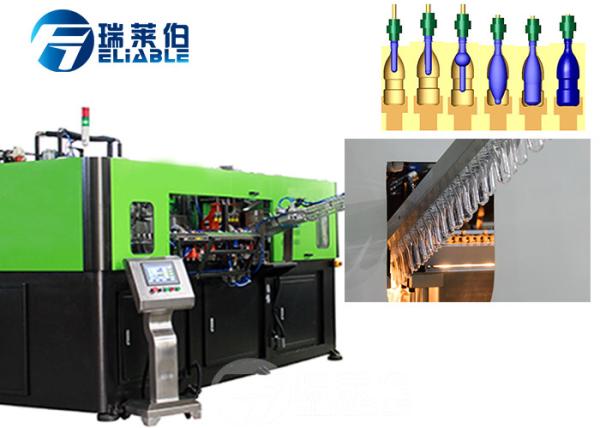

RM-4000HF series fully automatic rotary stretch blow molding machine ensures first-class performance which combined with a comprehensive bottle solution development program to devise the best solution for high speed. The machine features as high-tech component, stable running, less power and air consumption, minimized maintenance which could meet relevant national food sanitation requirements and shows the leading status domestically. The machine covers an extremely board range of applications including still or carbonated water, soft drinks, edible oil, juice and sport drinks, tea and milk or milk drinks.

A. Settings:

a).PLC ------------SIEMENS(GERMANY)
b).Valve for action------------SMC(KOREA)
c).Valve for blowing-----------FESTO(GERMANY)

d).Cylinder(stretch and clamping)-------------FESTO(GERMANY)

e).Controller of preform transfer---------------Servo motor National(JAPAN)
f).Other electric parts are all world-famous brands

B. Machine Features:

B.1. Produce bottles from 0.1L (2 cavity) to 6L(1 cavities);
B.2. Output capacity up to 6500BPH for 0.5L using four-cavity blow mold;
B.3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second;
B.4. Equipped with special designed air storage unit;

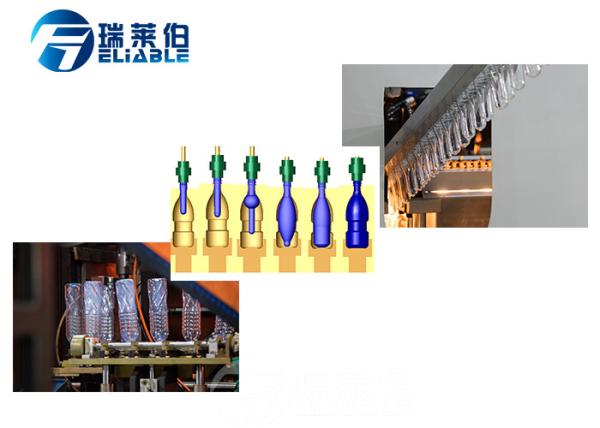

B.5. Infrared preform heater;
B.6. Heating lamps are adjustable in directions to suit various performs;
B.7. Independent temperature control system for different heating lamps to get ideal preform heating results;

B.8. Operated only by one person without special training;
B.9. Simple installation & startup adjustment;
B.10. Waste rate of finished articles is less than 0.2%.

ITEM Unit RM-4000HF
Capacity Theoretical output Pcs/h 6500
Product Volume L 1.5
Max.height mm 360
Max.diameter mm 105
Mould Number of cavities / 4
Mould plate dimension (L*H) mm 780*360
Mould thickness

Mm

 190
Mould opening stroke mm

110
Electrical system Power KW 220-380V/50-60HZ
Total power KW 35
Heating power

KW

 32
Air system Operation Pressure Mpa 0.8-1.0
Action Air Consuming m3/min ≤1.6
Blowing Pressure Mpa ≤4.0
Blowing Air Consuming m3/min ≤4.8
Machine Main body dimension(L*W*H) M 4.4*1.45*2.0

Main body weight

 KG 3200
Preform Autoloade(L*W*H) M 1.6*0.85*2.2
Preform Autoloader weight KG 200
