Specifications
Brand Name :
Reliable Water Bottle Making Machine
Model Number :
RM-9000HF Water Bottle Making Machine
Certification :
CE&ISO SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
Negotiable
Supply Ability :
10 Set/Sets per Month Bottle Blow Molding Machine
Packaging Details :
The normal packages is wooden box. If export to Europe Country, the wooden box will be after fumigated. If enter container the packages is too tighter, we may use PE film to wrapping the machine. or according customer special request. Reliable Machinery
Application :
Bottle, Water Bottle
Blow Moulding Type :
Stretch Blow Moulding
Blowing speed :
18000BPH
Bottle Volume :
200~2000ml
Cavities :
Nine Cavities
Material :
PET/PE/PC/PP
Description

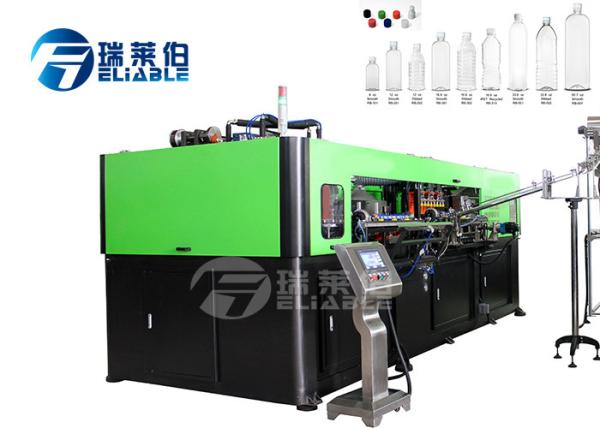

Low Machine Noise And High Cleanliness Automatic Rotary Blowing Machine

Performance and Characteristics

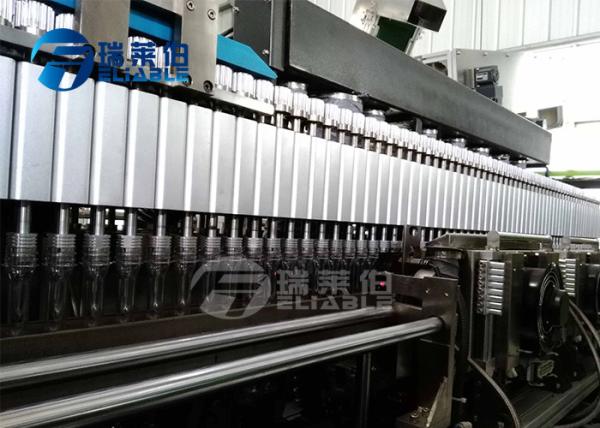

A.The built-in continuous rotating infeed system effectively reduces the space occupied. The consistency of preform position stream lines the process.

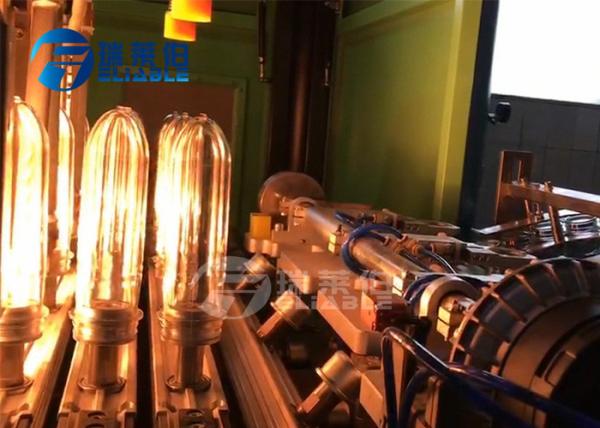

B.38mm pitched, more preforms are uninterruptedly heated within the same distance, which can improve the efficiency and 30% energy saving.

C.Hinged oven holders make it easy for the operators to change infrared tubes and do maintenance.

Technical Parameters

　Items UNIT DY-8CR600S
Molding Specification Clamping force kg 70000
Clamping stroke mm 120
Stretching stroke mm 250
Bottom Stroke mm 30
Cavity space mm 76
Number of cavities pc 8/4
Bottle Specifications Max Bottle volume L 0.75/1.5L
Max Neck Diameter mm 18～30
Max Bottle Diameter mm

70 (8cavities)

106 (4cavities)
Max Bottle Diameter mm 320
Bottle Preform Heating Carriage Space mm 38
Max Production Capacity BPH 18000
Main Motor Specification Rated power KW 110
Power consumption KW 35～50
Compressor Specifications Blowing Pressure Kg/c㎡ 28～32
HP Air Consumption m3/min 10
Cold Water Specifications(Chiller) Operating Pressure Kg/c㎡ ≥4
Temp range ℃ 5-20
Chilling Capacity kcal/hr 21100
Cold water flow rate L/min 70 Kg/c㎡

Cooling Water Specifications

(Cooling tower)

 Operation pressure Kg/c㎡ 3
Temp range ℃ ≤37
Cooling water flow rate L/min 85
Main Machine Specifications Main Machine size (LXWXH) mm
Main Machine Weight Kg 8500
Whole Machine Specifications Whole Machine size (LXWXH) mm
Whole Machine weight Kg 9500

Note:

a.The actual output capacity depends on the preform quality and bottle shape.

b.Due to continuous technical development specification would be improved without prior notice.

c.Special designs correspond to customers needs.

Machine Configurations

Item Items Brand
1 PLC Omron, Japan
2 Touch screen Omron, Japan
3 Servo motor Omron, Japan
4 Reduction drive Newcarter (Germany)
5

HP blow valve

(Air Source recovery system)

 Sechi (Switzerland)
6 Acting cylinders SMC(Japan) Or Lishi (Germany)
7 operating valve PAKKER (USA)
8 Control button/ intermediate relay. Omron, Japan
9 Intelligent Voltage regulator. Omron, Japan
10 Infrared tungsten lamp tube. LIANGGU, Zhejiang

Note : Due to the upgrading of models, the actual configuration may be inconsistent with above form. Some parts may be replaced by other brand parts which in equivalent price and grade.

Pre-Sales Service

* Inquiry and consulting support.

* 24 hours on line anwser your confusion.

* Welcome to view our Factory.

* Help client choose the suitable machine.

* Take video as client's request.

* Take client's other need into consideraion.

After-Sales Service

* We send the engineers overseas to help client installing, commissioning and training.
* We provide useful documents with machine.( Machine layout, Electricity diagram,Machine certificate, General manual book/maintenance book)
* All spare parts are always available and free for your request in first year.

* You can mail/call us at any time if have any problem. And our most experienced is always free for giving you consulting service.
