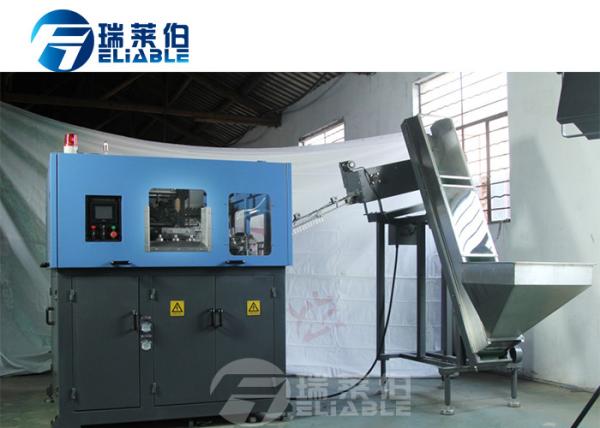

2 Cavity Bottle Making Machine , Plastic Bottle Manufacturing Equipment
2 Cavity Bottle Making Machine , Plastic Bottle Manufacturing Equipment
2 Cavity Bottle Making Machine , Plastic Bottle Manufacturing Equipment
2 Cavity Bottle Making Machine , Plastic Bottle Manufacturing Equipment
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Reliable
Certification :
CE ISO SGS
Supply Ability :
30 Set/Sets per Month bottle making machine
Packaging Details :
With PE Film Wrapped Standard Container According To Requirement
MOQ :
1 - 1 Sets
Price :
Negotiable
Model Number :
RM-2
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
25-35 working dys
Voltage :
380V 50Hz
Power :
28KW
Weight :
2800KG
Material :
SUS304/316
Capacity :
2000-2500 bph
Function :
Bottle Blowing Machine
Description
2 Cavity Automatic Plastic Beverage Bottle Making Machine With Low Power
Product Description

1).High Intelligence:The machine can be controlled through touch screen and running status is shown on it.

2).High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.

3).High Speed:2000BPH

4).No Contamination:Closed production zone, good self-lubrication system avoid contamination.

5).Low Cost:Low consumption of electricity, air and water.

6).High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.

Paramater

Type
RM-2000 Plastic Bottle Making Machine
According to bottle type
2000PCS/H
Product specification
20mm-100mm
Bottle height
50mm-350mm
Bottle mouth diameter
15mm-38mm
Mold
Cavitites
2cavities
Cavity pitch
120mm
Main power
Power
380v 3Phase/220v 3Phase 50/60HZ
Total power/heating power
30kw/10kw
Main machine size
Length width height/weigtht
1950*1750*2200mm/2800kg

Optional items of PET bottle blowing machine :

1. Exploded bottles ejection unit

During the blowing process, if the bottle burst, it can be automatically removed. This prevents the bad bottles into the filling machine.

2. HP air recovery system

After the bottle blowing accomplished, high-pressure air can be recycled can be used again for the pre-blowing and operational movement.

3. Oven and preform temperature detection system

Real-time detect the temperature of the oven and the temperature of the preform after

heating before blowing. When the preform heating temperature does not reach the set blowing temperature blowing workstation will alarm, not blown.

Brand List

Electrical components Cylinders
PLC Taiwan Delta clamping cylinder Japan SMC
touch screen Taiwan Delta stretching cylinder Japan SMC
relay France Schneider preform-feeding flipping cylinder Germany FESTO
circuit breaker France Schneider bottle-takeout flipping cylinder Germany FESTO
air switch France Schneider first-stage, second-stage slide cylinder Japan SMC
power supply France Schneider heating cylinder Japan SMC
proximity switch France Schneider Preform-separating cylinder Japan SMC
photoelectric switch France Schneider Manipulator cylinder Japan SMC

Option Introduction

  1. Blowing system
  • Short mould stroke, quick action.
  • Wide adaptability, suitable for every type mould thickness.
  • Special design, high rigid compound die structure.
  • High responsiveness pneumatic components, action timely and precisely.
  • Small size, low investment. One person enough to operate, simple and safe.

  1. Preform Injection
  • Through safe operation mechanism, start-up with two hands, avoid the accident during the operation.
  • Adopt the theory of heat transfer and feedback while designing the shape and thickness of preform.
  • Automatic feeding and automatic dropping the bottles.
  • Small size and compact construction with no space waste.

  1. Heating Parts
  • Adopt special electronic controlling circuit for heating, high efficiency in simultaneous controlling.
  • One lamp or more, lower power consumption.
  • The preform will be heated evenly, not be influenced by outside environment.
  • Cooling system with cold air cycle ensures same heat exposure of internal and external surface.
  1. Drive technology.
  • Five highly precise Monotec servo motors
  • With real time synchronization
  • Installed on a torsion-resistant platform structure
