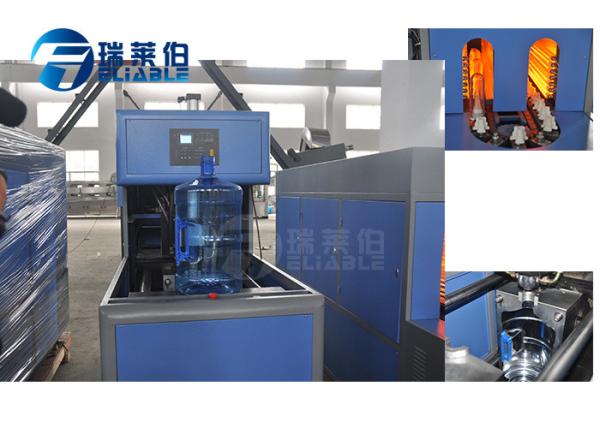

100 - 150 Bph Preform Water Jar Blowing Machine , 5 Gallon Blow Molding Machine
100 - 150 Bph Preform Water Jar Blowing Machine , 5 Gallon Blow Molding Machine
100 - 150 Bph Preform Water Jar Blowing Machine , 5 Gallon Blow Molding Machine
100 - 150 Bph Preform Water Jar Blowing Machine , 5 Gallon Blow Molding Machine
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Reliable
Certification :
CE ISO SGS
Supply Ability :
30 Set/Sets per Month 5 gallon bottle machine
Packaging Details :
Good Quality 5 Gallon Water Bottle Making Machine To Fill Water With PE Film Wrapped Standard Container According To Requirement
MOQ :
1 Set/Sets
Price :
Negotiable
Model Number :
RM
Type :
Filling Machine
Packaging Material :
Plastic
Automatic Grade :
Semi-Automatic
Usage :
Bottle Blowing Machine
Material :
SUS304/316
Capacity :
100-150bph
Description
5 Gallon Preform Water Jar Bottle Blowing Machine To Fill Water 100BPH

Benefit

(1) Energy Saving--low investment--easy to opreate and safety.

(2)With silencer--connecting rod --articulated refueling devices.

(3)Cooling system with cold air cycle --ensures same heat exposure of internal and external surface of the bottles.

Machine Specifications:

1.Semi-automatic, new condition
2. Cavity:1
3. Max.Container volume: 25 Liter
4. Mold customizing is available.
5. Theoretical capacity: 100-150BPH

1.Our mold producing center produces exact mold ,adopts the high grade material to make.
2.The perform mold inside uses the imported steel, the surface's brightness is very high and the service time is very long.
3.The design of equipment is logical, easily operation.
4.High level automation , using famous imported hydraulic , electrical, sealing parts, the trouble will be less .
5.No matter what the product 's outside or inside, they can get the best guarantee, the good products rate can be above 99%.

Parameter

TYPE ITEM UNIT PARAMETER
Container Product material / PET
Max.Container volume L 25 Liter (1cavity)
Theoretical output PCS/H 20L:100
Prefom length mm 15-460
Preform inner diametrt mm ￠15-200
Mouding Max.mould plate Dimenstion(L*W) mm 420*500
Max.mould thickness mm 400
Clamping force KN 330
Mould opening stroke mm 330
Machin size and
weight		 Main machine(L*W*H) cm 155*82*200
Main machine weight T 1
Heater (L*W*H) cm 242*65*160
Heater weight T 0.38

Features:

  1. The machine frame is produced by the whole complete casting bottom, so that the machine is firm and running stable.
  2. Adopt the straight slide way, reduce the friction and lengthen the life of the machine.
  3. Double start working button, which is designed for avoiding the injury.
  4. Power saving design that can increase your profits.
  5. The single direction of pre-form placing and bottle picking, which increase the output.
  6. Segregate type air controlling system, which is designed for avoiding waste pollution.
  7. The stretching air cylinder is adjusted parallel from front to back, from left to right freely by regulator.
Service
Reliable Customized service

1.Design the machines according your requirements(material, voltage , filling type, various bottles, specially designed device and so on) .

2.Reliable Machinery will offer professional suggestion, as you know, our company is among the best in the beverage machinery industry and our engineer has experience for many years.

3.Design layout for you and offer you advice about machine orientation or based on the factory area you have.

Reliable After-sales service

1. We will deliver the machine and provide the B/L on time to make sure you can get the machine quickly. Also send operating manual and instruction.

2. When you received the machines and put it on right place according to the layout , our professional engineer team will go to your factory to install the machine and train your employee until they can operate the machine well.

3. We have regular after-sales calling to remind customers to add the lubricating oil and maintain machine. We have service office in Dubai and other countries. We will also visit customers’ factories to check the machines.

4. We also receive feedback and offer help to our customer whose machine have been used in their factory for some time.

5. The machines from Reliable Machinery has one year warranty
