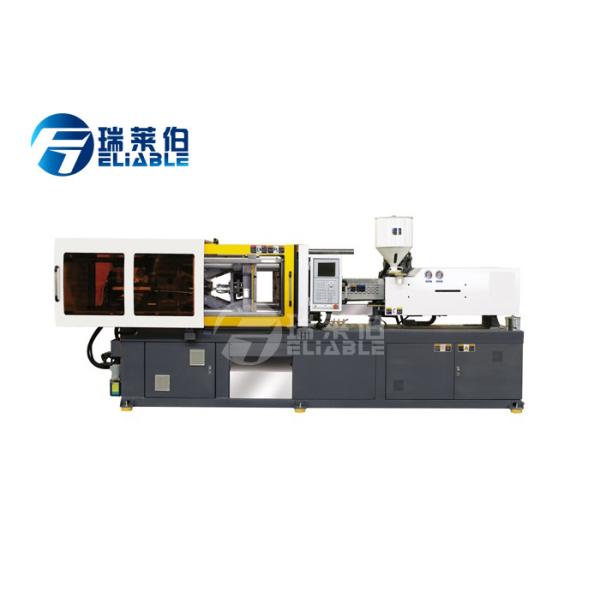

45 KN Cap Injection Molding Machine , Bottle Cap Injection Moulding Machine
45 KN Cap Injection Molding Machine , Bottle Cap Injection Moulding Machine
45 KN Cap Injection Molding Machine , Bottle Cap Injection Moulding Machine
45 KN Cap Injection Molding Machine , Bottle Cap Injection Moulding Machine
Specifications
Brand Name :
Reliable Bottle Cap Injection Machine
Model Number :
RM258 Bottle Cap Injection Machine
Place of Origin :
Jiangsu, China (Mainland)
Certification :
CE ISO SGS
Supply Ability :
10 Set/Sets per Month for Bottle Cap Injection Machine
Packaging Details :
Wooden package for Bottle Cap Injection Machine
MOQ :
1 Set/Sets
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
30 Working Days
Type :
Injection Blow Molding
Automatic :
Yes
Control :
PLC control
Quality :
Guarantee
Warranty :
1 year for spare parts
Packing :
Standard Wooden Case
Description

Full Automatic Bottle Cap Injection Molding Machine

Product Application

Bottle Cap Injection Machine is used for making the bottle cap . By changing the mould , you can make different diameter caps , easy to operate and easy to change the mould . With stable capacity and performance . RM-258 , max can fit 32cavities caps mould with POC30 size

Our reliable machinery will design the mould for you and suggest the best construction of the mould and matching the best suitable model machine .

Standard equipment

1) Double cylinder balancing injections, High-torque oil-motor pre plasticizing , Five pivots minus relief angle, double toggles, machine hinge mold locking , Cabinet-type holder integrates the mold plate .
2) Oil motor driven gear mold adjusting, Storage-type grease lubricating
3) Pressure and flow whole-proportion running
4) High-performance, low-noise oil pump ,Multi-step pressure and speed adjusting

Injection unit

1) This Bottle Cap Injection Machine have Four injection pressures and speeds with three additional pressures and speeds .
2) Suck back function ,Cold start protection ,Pre-suck back function
3) Linear displacement transducer accurately monitor injection
position, providing optimum. injection accuracy and control
4) Heating Status indication

Clamping unit

1) Three clamp close and open pressures and speeds, Mold protection function , Hydraulic ejector stroke controlled by transducer ,Automatic hydraulic die-height adjustment driven by planetary
gears system
2) Adjustable support under moving platen , Automatic high pressure toggle lubrication with low oil level alarm
3) Linear displacement transducer controls clamping position

Other Part

1) Self-diagnostic function
2) Hydraulic unscrewing sequence
3) Hydraulic oil high temperature alarm
4) System pressure gauge , Shot counter and reset function
5) Malfunction alarm light
6) Emergency stop buttons placed both front and rear of this Bottle Cap Injection Machine to provide easy access

Our Service

• Your inquiry related to our product & price will be replied within 24hours
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese
• Working time: 8:30am ~6:00pm, Monday to Friday(UTC+8).
• Your business relationship with us will be confidential to any third party.

Parts of injection molding machines

Standard equipment:

1) Double cylinder balancing injections

2) High-torque oil-motor preplasticizing

3) Five pivots minus relief angle, double toggles, machine hinge

mold locking

4) Cabinet-type holder integrates the mold plate

5) Oil motor driven gear mold adjusting

6) Storage-type grease lubricating

7) Pressure and flow whole-proportion running

8) High-performance, low-noise oil pump

9) Multi-step pressure and speed adjusting

10) Digital memory for mold group

Paraments

DESCRIPTION UNIT BLAZE1100-ll BLAZE1500-ll BLAZE1800-ll

International Size

Rating

 340 480 640
Injection Unit A B C A B C A B C
Screw Diameter mm 30 35 40 38 42 45 42 45 50
Screw L/D Ratio L/D 22 20 17.5 22 20 18.5 22 20 18.5
Shot Size(Theoretical) cm³ 106 164 214 216 277 318 291 358 442
Shot Weight(PS) g 96 149 194 196 252 289 265 326 402
Injection Rate g/s 60.2 82 107.1 100.4 122.6 140.8 129.4 148.5 183.3
Injection Pressure Bar 2836 2083 1595 2127 1741 1517 2063 1798 1456
Screw Speed r/min 244 232 224
Clamping Unit
Clamping Force kN 1100 1500 1800
Opening Stroke mm 340 375 430
Space Between Tie-bars(HxV) mm 420*370 470*420 520*470
Max. Mold Height mm 390 500 530
Min. Mold Height mm 150 160 180
Ejector Stroke mm 100 120 140
Ejector Force kN 45 45 45
Others
Pump Motor Power kW 18.2 18.2 20.4
Heater Power kW 6.8 7.4 9.9
Machine Dimensions(L*W*H) m 4.4*1.2*1.6 4.6*1.3*1.7 5.2*1.4*1.8
Machine Weight t 3.7 4.2 5.3
Hopper Capacity kg 25 25 25
Oil Tank Capacity L 150 200 250
