Drinking Water Bottle Blow Molding Machine 2 Cavity 12 Months Warranty
Drinking Water Bottle Blow Molding Machine 2 Cavity 12 Months Warranty
Drinking Water Bottle Blow Molding Machine 2 Cavity 12 Months Warranty
Drinking Water Bottle Blow Molding Machine 2 Cavity 12 Months Warranty
Drinking Water Bottle Blow Molding Machine 2 Cavity 12 Months Warranty
Drinking Water Bottle Blow Molding Machine 2 Cavity 12 Months Warranty
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
Reliable
Model Number :
RM-9A
Certification :
CE ISO SGS
Supply Ability :
20 Set/Sets per Month Semi Automatic Drinking Water Bottle Blowing Molding Machine
Packaging Details :
Economical Semi Automatic Drinking Water Bottle Blowing Molding Machine The normal packing is wooden box.
MOQ :
1 Set/Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
25-35 working days
Application :
Bottle
Plastic Processed :
PET
Voltage :
380V/50HZ
Color :
Blue
Type :
Stretch Pet Blow Moulding
Warranty :
12 Months
Description

Economical Semi Automatic Drinking Water Bottle Blowing Molding Machine

Machine Specifications:
1. Semi-automatic, new condition
2. Cavity: 2
3. Bottle volume: 100ml~ 2000ml.
4. Mold customizing is available.
5. Capacity: 800~1000 b/h for 500ml bottle
6. CE certificate

Technical Specifications

Type

Item

Unit

Technical Data

Container

Bottle material

PET/PVC/PE

Container volume of bottle

ml

100-2000

Theoretical output

BPH

800-1000(500ml)

Max. bottle height

mm

360

Max. bottle diameter

mm

Φ180

Moulding

Max mould plate dimension

mm

420×500

Max mould thickness

mm

250

Clamping force

KN

150

Mould opening stroke

mm

240

Air Compressor

Air compressor

M3/Mpa

kw

≥1.0/3.0

11

Air pressure for blowing

M3/Mpa

30

Main Machine

Electricity

Power

KW

6

Voltage/Frequency

V/HZ

380/50

Machine Size

And Weight

Host Size

M

1.53×0.62×2.00

Host Weight

T

0.6

Heater Size

M

1.8×0.5×1.6

Heater Weight

T

0.3

High Pressure Compressor Size

M

1.90×0.75×1.50

Air Filter Weight

Kg

10×2pcs

Auto-emergency alarm

Safety inter-loching device


Machine Features:
1). High Intelligence:The machine can be controlled through touch screen and running status is shown on it.
2). High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
3). High Speed:800-1000BPH
4). No Contamination:Closed production zone, good self-lubrication system avoid contamination.
5). Low Cost:Low consumption of electricity, air and water.
6). High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.

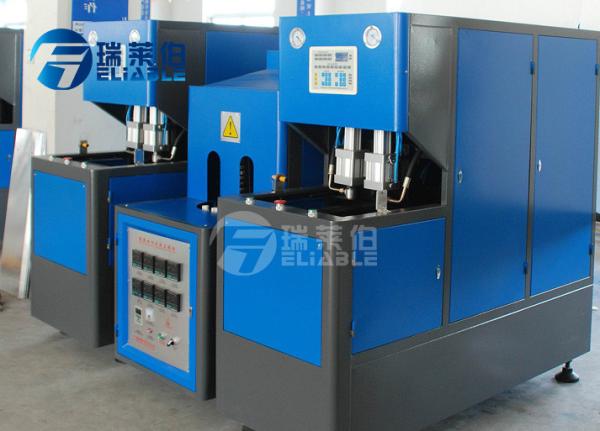

The machine whole outlooking picture is showing you.
Drinking Water Bottle Blow Molding Machine 2 Cavity 12 Months Warranty

Economical Semi Automatic Drinking Water Bottle Blowing Molding Machine

How to make finished bottle from PET raw material?

1. Produce PET preform first with injection machine.

2. Use Semi Automatic PET Bottle Blowing Molding Machine blow the PET preform to bottle.

Production process of Semi Automatic PET Bottle Blowing Molding Machine

(PET stretch blowing process)

preform injection →machine reserve preform →heating preform(adjust temperature)→stretch blowing→remove product→Bottle

If you have interests in our machine, just tell me some information:

1. How many bottles do you want to produce per hour?

2. What kind of bottle do you want to produce? And the type, height, volume of the bottle.
2. How much does the plant cover?
3. How much is the voltage of the plant?


This is global time, and the world is full of chance, and activity. This fast developing world will bring us with the most possibilities, and the most dreams, the most excitements. Reliable would like to cooperate with you with our warmest heart, to share success with customers all the world.
