Advantage: Strong Technical design ability, Stable quality, and large production capability, Famous brand.

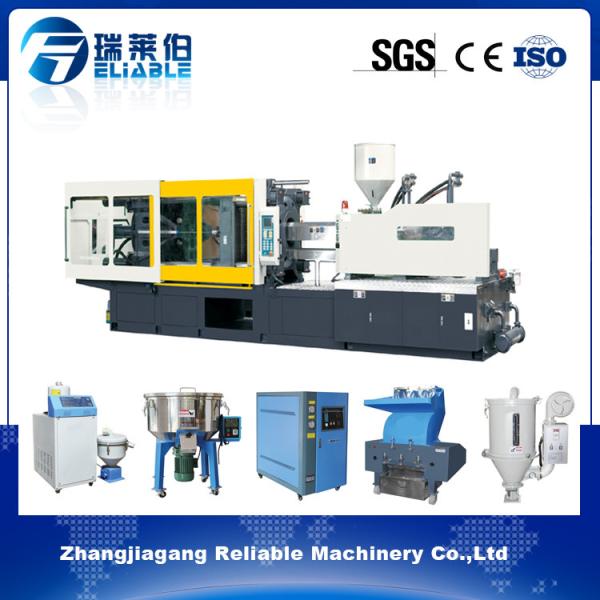

RM-servo energy saving Injection Molding Machine, equipped with high performance servo motor controlling system, the machine's output power can vary in accordance with the loading changes, which reduce energy consumption and noise. The motor rotates at lower speed in holding pressure stage, an doesn't work in cooling time.
The Performance of servo energy-saving molding machine:
- Servo motor can optimize the match of energy demand and realize automatic adjustments.
- It can improve injection precision
- It can greatly save power and water, resulting in environment-protection and energy-saving
Mold
Our mold producing center produces exact mold ,adopts the high grade material to make. The perform mold uses the hot runner technology, inside uses the imported steel, the surface’s brightness is very high and the service time is very long.
The design of equipment is logical, easily operation.
High level automation , using famous imported hydraulic , electrical, sealing parts, the trouble will be less .
No matter what the product ’s outside or inside, they can get the best guarantee, the good products rate can be above 99%.
Paraments
Unit | DS-350T | |||
A | B | C | ||
Injection unit | ||||
Screw Diameter | mm | 60 | 65 | 70 |
Screw L/D Ratio | L/D | 24 | 22.4 | 20.9 |
Shot Size(Theoretical) | cm3 | 994 | 1167 | 1353 |
Injection Weight | g | 885 | 1030 | 1194 |
Injection Pressure | Mpa | 213 | 195 | 180 |
Plasticizing Capacity | g/s | 36 | 41 | 45 |
Screw Speed | rpm | 0-195 | ||
Clamping unit | ||||
Clamp Tonnage | KN | 3500 | ||
Toggle Stroke | mm | 620 | ||
Space Between Tie Bars | mm | 660*660 | ||
Max.Mold Height | mm | 700 | ||
Min.Mold Height | mm | 250 | ||
Ejector Stroke | mm | 160 | ||
Ejector Tonnage | KN | 120 | ||
Ejector Number | PC | 13 | ||
Others | ||||
Max.Pump Pressure | Mpa | 16 | ||
Pump Motor Power | KW | 37 | ||
Heater Power | KW | 20 | ||
Machine Dimension(L*W*H) | m | 6.8*1.8*2.4 | ||
Machine Weight(About) | T | 11 |
How to get your suitable machine or production line ?
Enquiry: Contact us by email, phone call, fax, Instant tools (Trade manager , MSN , Skype , Whatsapp ) and let us know your enquiry.
Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.
Quotation: Prices offered and accepted.
Placing Order: Place order as per contract or discussion.
Double confirm: Proforma invoice offered to double confirm the order for both-side records.
Payment: Payment settled.
Producing Machine: Produce machine as per contracted term under our arrangement.
Shipping: Goods shipped as per contracted term.
Arrival: Goods arrive at local port or warehouse, depending on contracted term.
Completeness: Order completed.
Services
The sample service :
1.We can send you the video of the running machine.
2.You are welcome to come to visit our company ,and see the machine running in our factory ,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information ,you can go to visit their factory.
The customized service :
1.We can design the machines according your requirements(material ,power ,filling type ,the kinds of the bottles ,and so on),at the same time we will give you our professional suggestion ,as you know ,we have been in this industry for many years.
2. We can offer some professional suggestion when you begin this project, such as draw the factory layout for you ,analyze the source water report.
The after-sales service :
1.We will provide the bill of load on time to make sure you can get the machine quickly.
2.When you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
3.We ask feedback from our customer and offer help when the production line have been used for some time!
4.We provide one year warranty with spare parts free.
Why choose us :
1. We own a factory ourselves, and we can assure the quality we manufactured.
2. We offer you high quality machines with high quality after-service . Also we have one year warranty of the spare parts , free of charge.
3. We will deliver the machines on time as the date we agreed both side.
4. We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run
the machines .
5. After we deal down all the things , we will offer you a spare parts list for your reference.
