4000BPH Rational Construction PET Bottle Blowing Machine , Plastic Blow Moulding Machine
4000BPH Rational Construction PET Bottle Blowing Machine , Plastic Blow Moulding Machine
4000BPH Rational Construction PET Bottle Blowing Machine , Plastic Blow Moulding Machine
4000BPH Rational Construction PET Bottle Blowing Machine , Plastic Blow Moulding Machine
4000BPH Rational Construction PET Bottle Blowing Machine , Plastic Blow Moulding Machine
4000BPH Rational Construction PET Bottle Blowing Machine , Plastic Blow Moulding Machine
Specifications
Brand Name :
Reliable
Model Number :
RM-4000
Certification :
CE ISO SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month Automatic Used PET Bottle Stretch Blowing Molding Machine
Delivery Time :
35-45 working days
Packaging Details :
The normal packing is wooden box
Blow Moulding Type :
Stretch Blow Moulding
Voltage :
380V/3PH/50HZ
Power(W) :
68KW
Weight :
4500KGS
Capacity :
4000-4800BPH
Control :
PLC+Touch Screen
Description

4000BPH Rational Construction Blowing Modling Water Automatic Bottle Blowing Machine

Product Description

It is the most reliable blowing machine for making water bottle, juice bottle, and carbonated drink bottle. This blowing machine can blow PET bottles in different shapes, also, the machine can be customized according customer special demand. full automatic blowing machine can make bottle from 200ml to 2000ml with capacity from 2000 to 20000 bottles in an hour.

The advantages

1. Automatic performs input and ready bottle output system.
2. The machine is equipped with specially designed PLC control system.

3. Pneumatic unit provides power for machine movement including machine driving and bottle blowing.


4. The machine has a plenty of assistant unit to increase the machine's performance such as air storage unit to keep the air pressure stable grease-lubricating unit to reduce mechanical parts' wear and tear and multi-utilization air entry unit to meet air compressed air high-pressure single entry mode and high-pressure & low-pressure double entry mode.

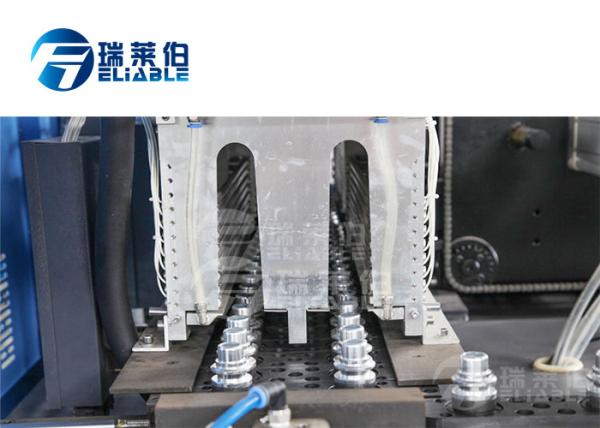

5. The machine preform heater adopts independent temperature control unit for each heating zone to offer ideal temperature for various preforms.
6..Automation controlling item adopts international high-end computer system, heating, collecting and measuring perform temperature with simulation input and output module.

The technology data

Type

RM-4000

output

according to bottle shape

Max. 4600BPH

product specification

bottle body diameter

20mm-100mm

bottle height

50mm-350mm

bottle mouth diameter

15mm-38mm

mold

cavity

4 cavities

mold thickness

200mm

mold effective area

800X800mm

Main power

power ,voltage

380v 3Phase /220v 3Phase 50/60HZ

Install machine power/actural use power

68kw/15kw

air source

low pressure air compressor

2.0m3/min 1.0MPa

high pressure air compressor

3.6m3/min 3.0MPa

cold-dry machine

2.0m3/min 3.0MPa 1set

cooling water

cooling quantity

15L/min

main machine size

L*W*H

2808*1958*1920mm/4600kg

feeder size

L*W*H

2000*950*2480mm/250kg

The flow chart:

High Pressure Air Compressor→Air Storage Tank→Air Filter→ Air Dryer→Air Filter→ Water Chiller→Low Pressure Air Compressor→PET Preforms→ heat preform→ stretch→ blowing→ bottles

The machine whole outlooking

4000BPH Rational Construction PET Bottle Blowing Machine , Plastic Blow Moulding Machine
