6000BPH PET Blow Moulding Production PET Bottle Blowing Machine With 6 Cavities Moulds
6000BPH PET Blow Moulding Production PET Bottle Blowing Machine With 6 Cavities Moulds
6000BPH PET Blow Moulding Production PET Bottle Blowing Machine With 6 Cavities Moulds
6000BPH PET Blow Moulding Production PET Bottle Blowing Machine With 6 Cavities Moulds
6000BPH PET Blow Moulding Production PET Bottle Blowing Machine With 6 Cavities Moulds
6000BPH PET Blow Moulding Production PET Bottle Blowing Machine With 6 Cavities Moulds
6000BPH PET Blow Moulding Production PET Bottle Blowing Machine With 6 Cavities Moulds
6000BPH PET Blow Moulding Production PET Bottle Blowing Machine With 6 Cavities Moulds
Specifications
Brand Name :
Reliable
Model Number :
RM-6000
Certification :
CE ISO SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
26000-27000 USD/set
Payment Terms :
L/C, T/T
Supply Ability :
15 Set/Sets per Month Automatic Used PET Bottle Stretch Blowing Molding Machine
Delivery Time :
35-45 working days
Packaging Details :
The normal packing is wooden box
Capacity :
6000BPH/500ml bottle
Application :
Bottle,PET bottle making machine
Condition :
New
Plastic processed :
PET
Warranty :
12 Months
Description

6000BPH PET Blow Moulding Production Automatic PET Bottle Blowing Machine With 6 Cavities Moulds

We can help you design a bottle as long as you tell us the height, diameter, and material of the bottle

Product Overview

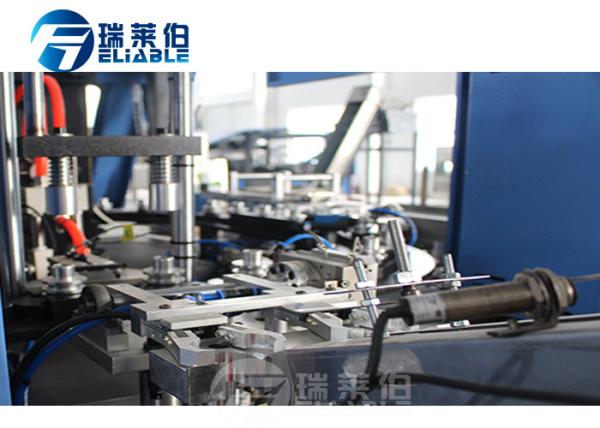

RM-6000 blow moulding machine is suitable for producing PET plastic containers and bottles in all shapes. The blow moulding machine is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Advantages

• High safety. high speed with high efficiency.
• Manual saving, one man is enough for operation the machine.
• Stable performing with easy maintaining.
• Imported PLC controlling and man-machine interface computer
• Japan Omron inspection sensor
• Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
• Power saving design that can increase your profits
• Segregate type air controlling system, which is designed for avoiding waste pollution

Technical Data
Type
RM-6000
output
according to bottle shape
Max. 6000PCS/H
product specification
bottle body diameter
20mm-100mm
bottle height
50mm-350mm
bottle mouth diameter
15mm-38mm
mold
cavity
6cavities
mold thickness
200mm
mold effective area
800*800mm
Main power
power ,voltage
380v 3Phase /220v 3Phase 50/60HZ
Install machine power/actural use power
68kw/15kw
air source
low pressure air compressor
2.0m3/min 1.0MPa
high pressure air compressor
3.6m3/min 3.0MPa
cold-dry machine
2.0m3/min 3.0MPa 1set
cooling water
cooling quantity
15L/min
main machine size
L*W*H
2808*1958*1920mm/4600kg
feeder size
L*W*H
2000*950*2480mm/250kg

Product tags

pet bottle blow molding machine

,

bottle blow molding machine(3l-5l)

,

pet injection blow molding machine
