Specifications
Brand Name :
Reliable
Model Number :
L Type Full Automatic PE Film Packing Machine
Certification :
SGS,ISO,TUV
Place of Origin :
Jiangsu,China (Mainland)
MOQ :
negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20SETS PER MONTH
Delivery Time :
30 days
Packaging Details :
wooden package
Name :
L Type Full Automatic PE Film Packing Machine
Overall dimensions :
L5050*W3300*H2100
Machine weight :
1.2t
Heat Shrinking Furnace Size :
L3700*W920*H1750
Packing size :
8-12 bag
Other Name :
Film Packing Equipment
Description

L Type Full Automatic PE Film Packing Machine , Film Packing Equipment

PE Film Packing Machine application:

The combination of mineral water, beverages, beer, liquor, infusion bottles and other products, packaging does not need bottom support, the product is fastened after packaging. Beautiful.

PE Film Packing Machine Features:

1.Automatic control with imported PLC program, stable performance and precise control

2.Fully automated with automatic feeding, bottle handling, shrinking, and cooling styling processes.

3.Adjustable film length and reduce loss

4.The conveying motor is controlled by imported frequency converter to realize stepless scheduling.

5.Advanced spiral wind circulation structure, three layers of insulation treatment, saving energy.

6.The enhanced cooling shaping channel can be quickly shaped using the product for convenient storage and transportation.

PE Film Packing Machine Technology parameter

Overall dimensions L5050*W3300*H2100
Machine weight 1.2t
Heat Shrinking Furnace Size L3700*W920*H1750
Packing size L420*W280*H350
Packing size 8-12 bag
Conveyor belt height 920(adjustable100mm)
Rated power supply 380V 50HZ
Working pressure 0.6-0.8Mpa
Machine power 20kw

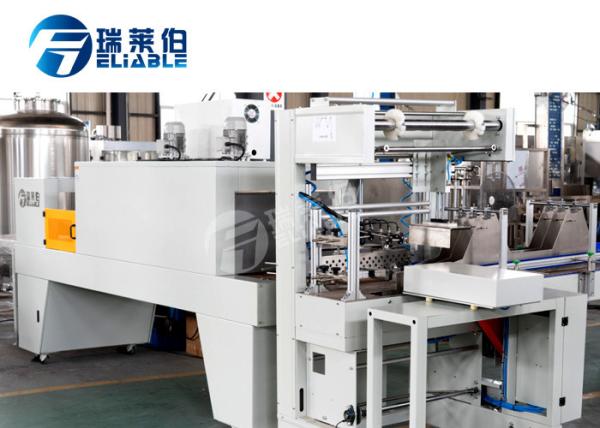

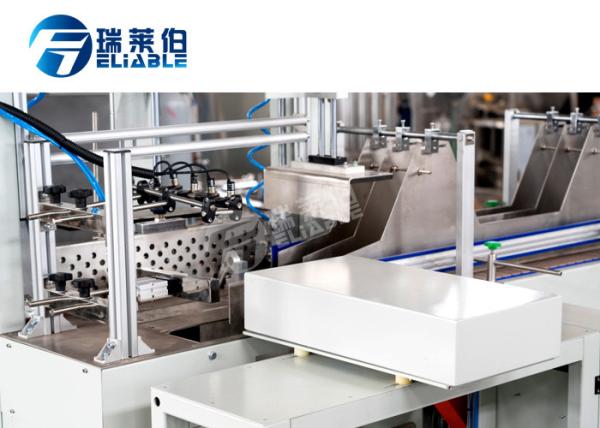

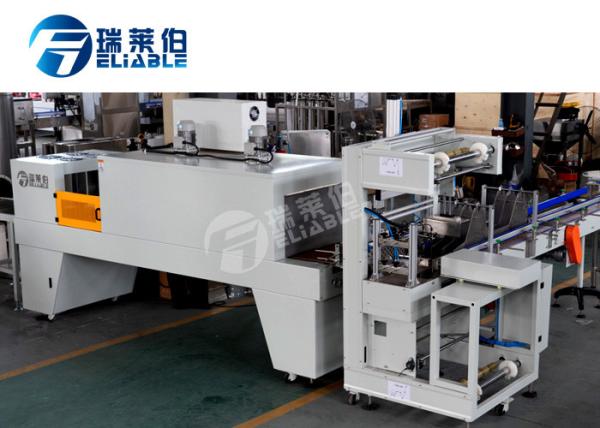

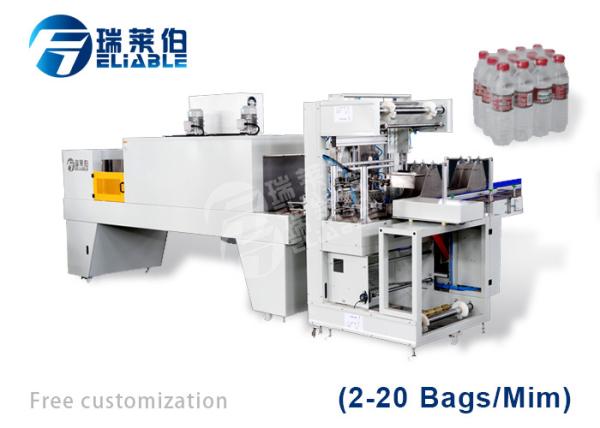

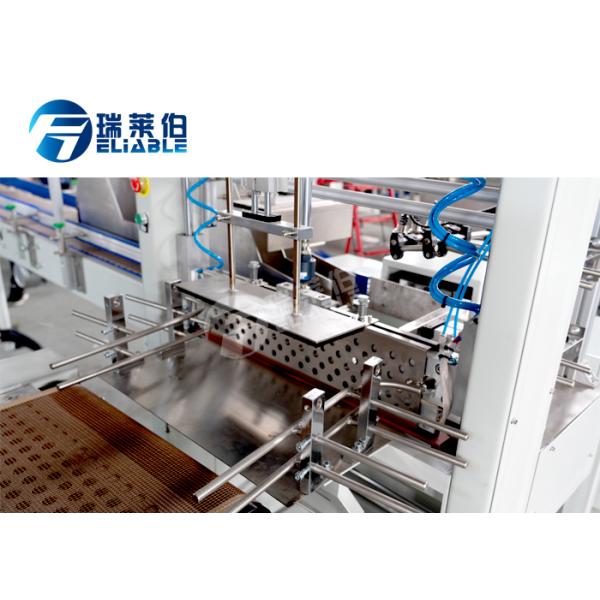

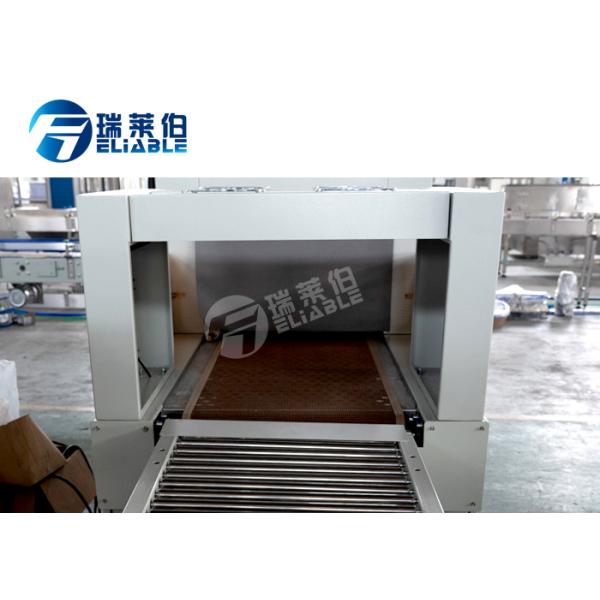

PE Film Packing Machine Details

L Type Full Automatic PE Film Packing Machine , Film Packing Equipment

L Type Full Automatic PE Film Packing Machine , Film Packing Equipment

About our company

Our company has years of design experience and numbers of proprietary technologies. Reliable has been always committing himself to offer varies stand-alone devices and complete solution to drinks and brewers makers since establishment.No matter whether it is water filling, hot filling,Carbonated filling and aseptic cold filling, or in recent years the development of PET bottles and glass bottles of alcoholic filling line and oil filling line.Reliable is able to provide you all kinds of consummate projects and service!

Our Service

1.We can customize the special size according to customer's demands.
2.Answer your any question on us within 24 hours.
3.Supply all information you required.
4.Machines video for reference.
5.Welcome to visit factory, and see the machine running.
6.Machines testing running over 8 hours, and sending testing videos.
7.Engineer arranged to install machines.
8.Spare Parts provided.
9.one year warranty.
