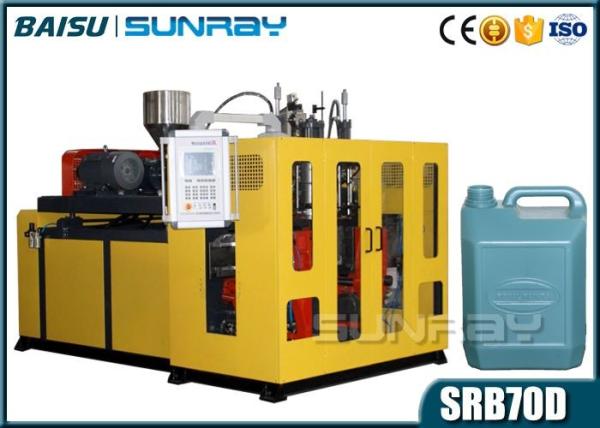

5L HDPE Plastic Bottle Making Machine Extrusion Blow Moulding Machine - SRB70D-1
5L HDPE Plastic Bottle Making Machine Extrusion Blow Moulding Machine - SRB70D-1
5L HDPE Plastic Bottle Making Machine Extrusion Blow Moulding Machine - SRB70D-1
5L HDPE Plastic Bottle Making Machine Extrusion Blow Moulding Machine - SRB70D-1
5L HDPE Plastic Bottle Making Machine Extrusion Blow Moulding Machine - SRB70D-1
5L HDPE Plastic Bottle Making Machine Extrusion Blow Moulding Machine - SRB70D-1
5L HDPE Plastic Bottle Making Machine Extrusion Blow Moulding Machine - SRB70D-1
5L HDPE Plastic Bottle Making Machine Extrusion Blow Moulding Machine - SRB70D-1
Specifications
Brand Name :
BAISU / SUNRAY
Model Number :
SRB70D-1
Certification :
CE / ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 Set
Price :
USD 27500-36500 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Sets / Year
Delivery Time :
60 Days
Packaging Details :
Covered with water-proof film, fastened with special container loop and hooks.
Machine Type :
Bottle Blow Molding Machine
Product Range :
jerry can, bottle, container, jar, tank
Max Volume :
5L
Material :
LDPE, HDPE, PP
Capacity :
215-225 Pcs/hour
Pow. Consumption :
31.5 KW
Platen Size :
320x390 mm
Clamping Force :
68 KN
Description

5L HDPE Plastic Bottle Making Machine Extrusion Blow Moulding Machine - SRB70D-1 , 5 Liter Jerry Can Bottle Blow Molding Machine , HDPE Jerry Can Making Machine for 5 Liters

QUICK VIEWS

1. SRB70D-1 specially double station automatic extrusion bottle blow molding machine for 5L as maximum.

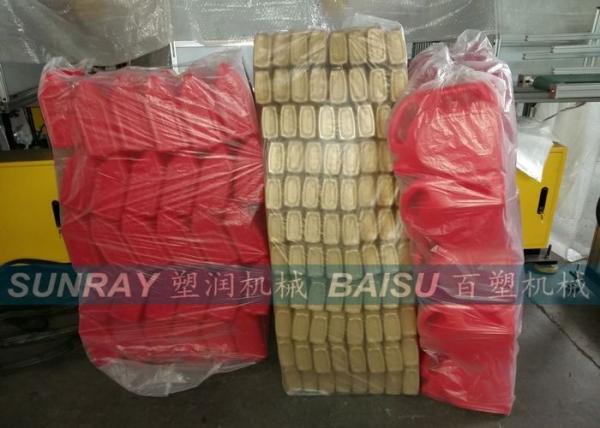

2. Its output for 5L jerry can is 225 Pcs/hour, for 1 gallon bottle is 240 Pcs/hour, specially for 1-5L bottles.

3. Adopt pressure / flow double proportion control for hydraulic system, insure platen moving speed & smoothness.

PARAMETER LIST

Machine Model Plastic Bottle Making Machine
Max Product Volume 5 L
Machine Weight 5.5 Tons
Machine Size 3.8 x 2.2 x 2.5 m
Screw Diameter 70 mm
Plasticizing Capacity 90 KG
Clamping Force 68 KN
Platen Size 320 x 390 mm
Platen Opening Stroke 150~500 mm
Max Mould Size 360 x 360 mm
Head type Continuous extrusion single head
Max die diameter 180 mm
Material Cutting Method Hot Cutting
Max Die Diameter 100 mm
Total Power 48.5 KW
Average Energy Consumption 31.5 KW

5L HDPE Plastic Bottle Making Machine Extrusion Blow Moulding Machine - SRB70D-1

MACHINE FEATURES

1. Reasonable structure design and solid frame manufacturing to insure running stability.

2. Good head material runner deisgn and precision metal process for changing color easily.

3. According to your specified request, our machine can be made with co-extrusion of 2~4 layers and view stripe line.

4. Colorful touch screen, cantilever operation box, bottle collective shelves, scraps sliding channel and safety protection.

5. Total machine control system well match with scraps on-line deflashing, angle adjustable blowing unit, neck rotary cutting, in-mould labeling, weight testing and leakage testing, product conveying & packing.

PRODUCTION ARRANGEMENT

1. Machine Foundation Size: 3.5 x 2 m

2. Production Area: 7 x 5 m

3. Minimum Workshop Height: 3.0 m

4. Air Supply Requirement: 1.0m3/min, 0.6Mpa

5. Water Supply Requirement: 8 Tons

6. Machine Power Consumption: 31.5 KW

7. Production Line Power Consumption: 45 KW

8. Whole Line Electricity Arrangement: 250 Amps

9. Minimum Workers Number: 2 Workers

MACHINE CONFIGURATIONS

1. Control Unit: WISETECH total machine programmable controller controller and ture colorful touch panel. English parameter process setting, state monitoring and products counting are convenient and intuitionistic. PLC automatic temperature control model.


2. Hydraulic Unit: It adopts international famous Japan YUKEN brand hydraulic valve and seal, proportional control. And has features of high stationarity and reliability, accurate operation, long longevity, quick response and so on.


3. Extrusion Unit: Hard gear surface decelerator; famous Delta inverter adopts Italian technology; Screw speed regulation adopts variable-frequency speed regulation control system. It has the features of stable rotate speed, powerful power, energy-saving and so on. Mixing screw has wide applicability to raw materials and the plasticization quality is even better. Energy-saving machine barrel and A-alloy heaters are adopted for heating


4. Die Head Unit: With single cylinder material-center-in accumulator head, is smooth and dependable. This die head adopts German technology and is made by special imported steel.


5. Clamping Unit: Adopts fixed mould open-closing system,fast and balanced.


6. Blow Fitting Unit: Down blowing fitting is equipped.


7. Lifter Unit: Four turbine reducer liter, lifting balance, quick, stable.


8. Electrical Components: All of the electrical components are made in Japan and Taiwan.

5L HDPE Plastic Bottle Making Machine Extrusion Blow Moulding Machine - SRB70D-1

5L HDPE Plastic Bottle Making Machine Extrusion Blow Moulding Machine - SRB70D-1
