Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1
Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1
Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1
Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1
Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1
Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1
Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1
Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1
Specifications
Brand Name :
BAISU / SUNRAY
Model Number :
5L EBM SRB65-1
Certification :
CE / ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 Set
Price :
USD 24000-25000 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Sets / Year
Delivery Time :
50 Days
Packaging Details :
Covered with water-proof film, fastened with special container loop and hooks.
Machine Type :
Plastic Bottle Making Machine
Product Range :
Plastic bottles, jerry cans, jars & containers
Max Volume :
5L
Material :
LDPE, HDPE, PP
Capacity :
125 Pcs/hour
Energy Need :
26.5 KW
Platen Size :
320x390 mm
Clamping Force :
68 KN
Description

Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1, Detergent Bottle Blow Molding Machine, 5L Bottle Production Machine

QUICK VIEWS

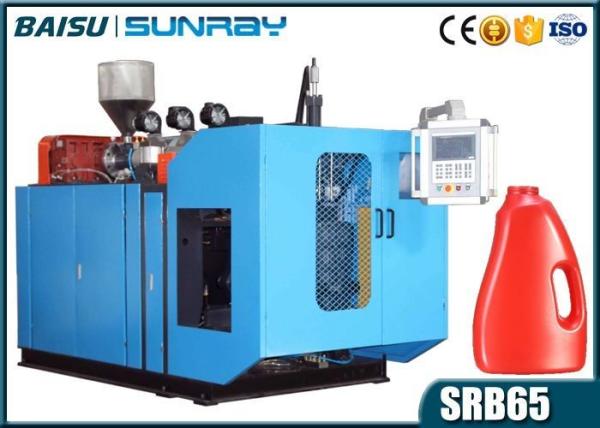

1. SRB65-1 is single station single head fully automatic blow moulding machine for 1~5L bottles specially.

2. Machine total control system with convenient operation page design suitable for remote technical support.

3. Adopt pressure / flow double proportion control for hydraulic system, insure platen moving speed & smoothness.

4. Its output for 5L liquid soap bottle is 125~135 Pcs/hour, the daily capacity is bigger than 3000 bottles.

TECHNICAL PARAMETERS

Machine Model

Single station extruder blowing machine
Max Product Volume 5 L
Machine Weight 4.5 Tons
Machine Size 3.8 x 1.8 x 2.5 m
Screw Diameter 65 mm
Plasticizing Capacity 75 KG
Clamping Force 68 KN
Platen Size 320 x 390 mm
Platen Opening Stroke 150~500 mm
Max Mould Size 360 x 360 mm
Four Head Central Distance 160 mm
Max Product Diameter or Width 135 mm
Material Cutting Method Hot Cutting
Max Die Diameter 95 mm
Total Power 41.5 KW
Average Energy Consumption 26.5 KW

Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1

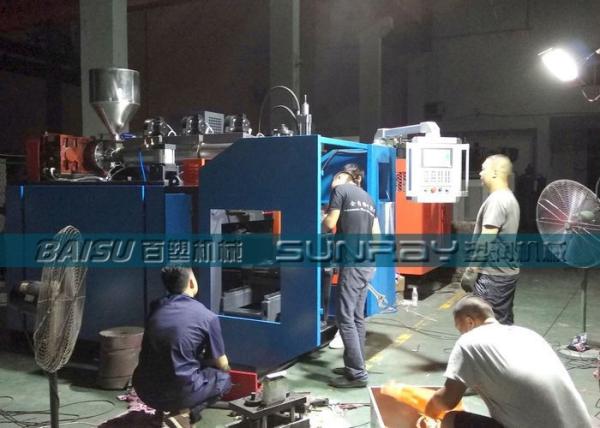

Click picture above to see SRB65-1 commissioning video for 5L liquid soap bottles

PRODUCTION ARRANGEMENT

1. Machine Foundation Size: 3.5 x 2 m

2. Production Area: 6 x 5 m

3. Minimum Workshop Height: 3.0 m

4. Air Supply Requirement: 0.8m3/min, 0.6Mpa

5. Water Supply Requirement: 5 Tons

6. Machine Power Consumption: 27.5 KW

7. Production Line Power Consumption: 36.5 KW

8. Whole Line Electricity Arrangement: 100 Amps

9. Minimum Workers Number: 1~2 Workers

MACHINE INTRODUCTION

► 5 litre plastic bottle blow molding machine SRB65-1 is widely used in detergent liquid and liquid soap, hand washing liuqid packing field, also used in engine oil, lubrication oil, cooking oil packing field. In normal production, the cycle time is about 27 seconds. Its production capacity is 135 pcs/hour, daily output is 3240 bottles.

► The key technical points lie in precise die and core size, blow pin head diameter and design, also the suitable depth of mould cutting overflow grooves to insure the on-line deflashing result.

► Total machine control system well match with scraps on-line deflashing, neck rotary cutting, in-mould labeling, leakage testing, product conveying & packing. Optimized hydraulic system with reasonable design to control pressure and flow of double proportion, acchieve action execution fast, stable and accurate. High hardness bimetallic screw with good structure design and modulation, insure bigger plasticizing capacity, less wearing and longer working lifespan.

Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1

Liquid PE Soap Bottle Blow Molding Machine 26.5 KW Energy Consumption SRB65-1

PURCHASE & SERVICE FLOW


1. Get customers' sample or product information to select the suitable blow molding machine model.
2. Communicate and negotiate to customers' detailed requirements and provide solution plan.
3. Confirm payment terms, price discount and make proforma invoice or contract, arrange down payment.
4. Start order production and report to customers the manufacturing progress in every week.
5. Machine is finished for mould test, bring forward commissioning report and arrange tail in works.
6. Invite customers for checking and acceptance,operation training, arrange loading and delivery.
7. Dispatch engineer for installation and commissioning, arrange machines' layout in customer' s site.
8. One year guarantee, after sales services, share our experience and remote technical support.
9. Feedback in time for customer's problem, provide solutions and customer's new project consulation.
