200 Liter Blue Plastic Drum Making Machine With Bottom Blowing System SRB200
200 Liter Blue Plastic Drum Making Machine With Bottom Blowing System SRB200
200 Liter Blue Plastic Drum Making Machine With Bottom Blowing System SRB200
200 Liter Blue Plastic Drum Making Machine With Bottom Blowing System SRB200
200 Liter Blue Plastic Drum Making Machine With Bottom Blowing System SRB200
200 Liter Blue Plastic Drum Making Machine With Bottom Blowing System SRB200
200 Liter Blue Plastic Drum Making Machine With Bottom Blowing System SRB200
200 Liter Blue Plastic Drum Making Machine With Bottom Blowing System SRB200
Specifications
Brand Name :
BAISU / SUNRAY
Model Number :
SRB200
Certification :
CE / ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
90 Days
Packaging Details :
Plastic film / 5-ply Box / Fastening Belt, Cable & Hooks
Price :
USD 140000~145000 / Set
Supply Ability :
200 Sets / Year
Machine Type :
Fully automatic blow molding machine
Product Range :
Single or double L ring drums & barrels
Volume Range :
160~230 L
Material Source :
UHMWPE, HMWHDPE, HDPE
Production Capacity :
20~24 Pcs/hour
Power Consumption :
138 KW
Loading Reference :
40'OT & 40'HQ containers
Guarantee Time :
1 Year
Description

200 Liter Blue Plastic Drum Making Machine With Bottom Blowing System SRB200, 55 gallon plastic container manufacturing machine

QUICK DETAILS

1. SRB200 is the special blow molding machine for UHMWPE L ring chemical drums & barrels only.

2. Its output for 9.5KG double L ring drum is 20-21 Pcs/hour, the daily capacity is about 500 drums.

3. UHMWPE special bimetallich 30:1 screw driven by 132KW D.C. motor + double layer bestrew FIFO head.

TECHNICAL PARAMETERS

Machine Model Fixed Clamping Accumulating Head
Max Product Volume 250 L
Machine Weight 30.5 Tons
Machine Size 8.2*4.6*6.2 m
Screw Diameter 120 mm
Plasticizing Capacity 300 KG for UHMWPE
Clamping Force 1000 KN
Platen Size 1300*1400 mm
Platen Opening Stroke 800-1800 mm
Max Mould Size 1050*1250 mm
Accumulating Volume 24 L
Max Ejection Weight 18 Kg
Max Product Weight 12.5 Kg
Max Die Diameter 500 mm
Total Power 235 KW
Average Energy Consumption 138 KW

200 Liter Blue Plastic Drum Making Machine With Bottom Blowing System SRB200

MACHINE FEATURES

1. SRB200 is the 160~230L single or double L ring drums specially used fully automatic blow molding machine, it can't used for open top drums or barrels, because the bottom blowing system and hydraulic system design are different.

2. According to customers' demand, SRB200 can be made with single layer, double layer or triple layer for recycled material to save your material purchasing cost, also increase your products' market competitive power.

3. The whole clamping system can be pushed forward, easy for changing mould. Fixed structure of extrusion unit to insure head positioning. Servo motor system and gear pump are used in optimized hydraulic system, saving your energy consumption also control oil temperature.

4. Integrated machine control with large colorful screen, saving 20 moulds’ formula, 100 point parison thickness control of easy operation. Also the remote technical support is possible and easy for update your program.

5. The UHMWPE L ring drums' quality and strength is reliable to pass falling test and impact test.

MACHINE ADVANTAGES

► Reasonable structure design and solid frame manufacturing to insure running stability.
► Machine total control system with convenient operation page design suitable for remote technical support.
► Energy saving, mature hydraulic and electric design, low problem rate to reduce your production cost.

200 Liter Blue Plastic Drum Making Machine With Bottom Blowing System SRB200

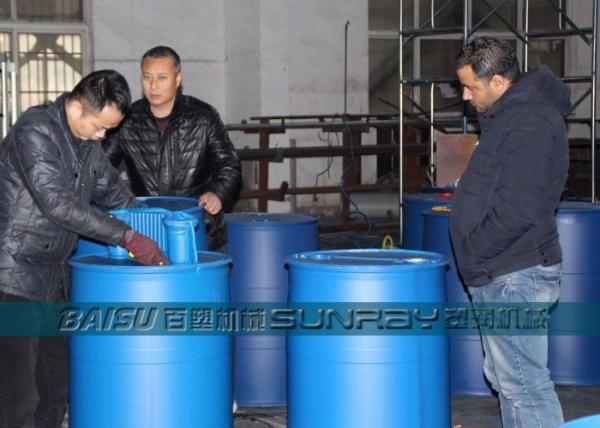

Click picture above to see SRB200 commissioning & falling test video

200 Liter Blue Plastic Drum Making Machine With Bottom Blowing System SRB200

Click above picture to see machine installation and production video in customer's factory
