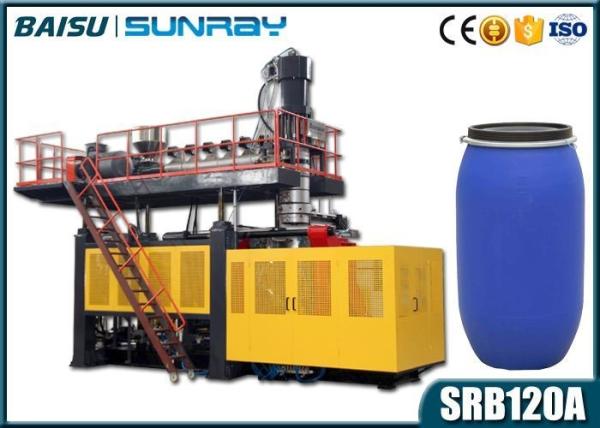

Fully Automatic Blow Moulding Machine , 200 Litre Blue Plastic Drum Making Machine SRB120A
Fully Automatic Blow Moulding Machine , 200 Litre Blue Plastic Drum Making Machine SRB120A
Fully Automatic Blow Moulding Machine , 200 Litre Blue Plastic Drum Making Machine SRB120A
Fully Automatic Blow Moulding Machine , 200 Litre Blue Plastic Drum Making Machine SRB120A
Fully Automatic Blow Moulding Machine , 200 Litre Blue Plastic Drum Making Machine SRB120A
Fully Automatic Blow Moulding Machine , 200 Litre Blue Plastic Drum Making Machine SRB120A
Fully Automatic Blow Moulding Machine , 200 Litre Blue Plastic Drum Making Machine SRB120A
Fully Automatic Blow Moulding Machine , 200 Litre Blue Plastic Drum Making Machine SRB120A
Specifications
Brand Name :
BAISU / SUNRAY
Model Number :
250L EBM SRB120A
Certification :
CE / ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 Set
Price :
USD 95000-100000 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
80 Days
Packaging Details :
Covered with water-proof film, fastened with special container loop and hooks.
Supply Ability :
200 Sets/ Year
Machine Type :
Plastic Drum Making Machine
Product Range :
Plastic Open-top Barrel & Drum
Max Volume :
250L
Material Source :
HDPE
Capacity :
20 Pcs/hour
Avg. Power :
65 KW
Platen Size :
1300x1400 mm
Guarantee :
1 Year
Description

Fully Automatic Blow Moulding Machine , 200 Litre Blue Plastic Drum Making Machine SRB120A, HDPE Barrel and Drum Extrusion Blow Molding Machine

QUICK VIEW

1. SRB120A is 250L hdpe drum making machine, specially used for 100~230L open top drums.

2. Machine total control system with convenient operation page design suitable for remote technical support.

3. Energy saving, mature hydraulic and electric design, low problem rate to reduce your production cost.

TECHNICAL PARAMETERS

Machine Model

Fixed Clamping Accumulating Head

Max Product Volume

250 L

Machine Weight

22.5 Tons

Machine Size

6.8*4.3*6.2 m

Screw Diameter

100 mm

Plasticizing Capacity

230 Kg/hour for HDPE

Clamping Force

800 KN

Platen Size

1300*1400 mm

Platen Opening Stroke

600-1600 mm

Max Mould Size

950*1500 mm

Accumulating Volume

24 L

Max Ejection Weight

18 Kg

Max Product Weight

12.5 Kg

Max Die Diameter

500 mm

Total Power

173.25 KW

Average Energy Consumption

65 KW

Fully Automatic Blow Moulding Machine , 200 Litre Blue Plastic Drum Making Machine SRB120A

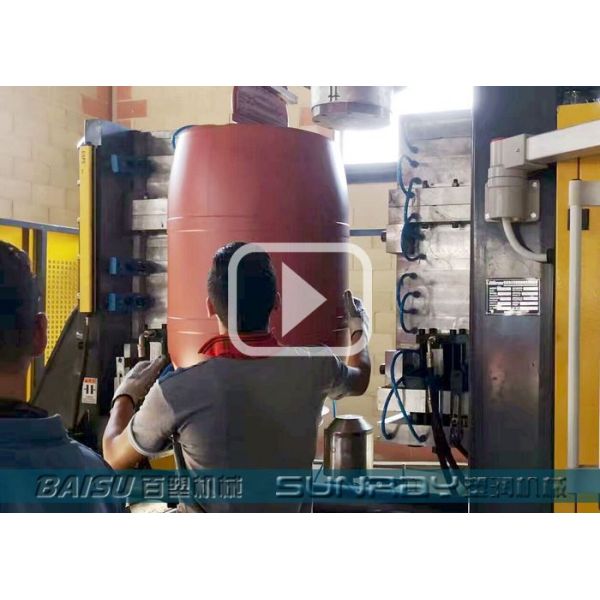

Click picture above to see SRB120A working video in customer's factory

PRODUCTION ARRANGEMENT

1. Machine Size: 6.8x4.3x6.0 m

2. Production Area: 12.5x7.5 m

3. Minimum Workshop Height: 7 m

4. Air Supply Requirement: 1.6m3/min, 0.8Mpa

5. Water Supply Requirement: 20 Tons

6. Machine Power Consumption: 65 KW

7. Production Line Power Consumption: 106 KW

8. Whole Line Electricity Arrangement: 800 Amps

9. Minimum Workers Number: 3 Workers

MACHINE FEATURES

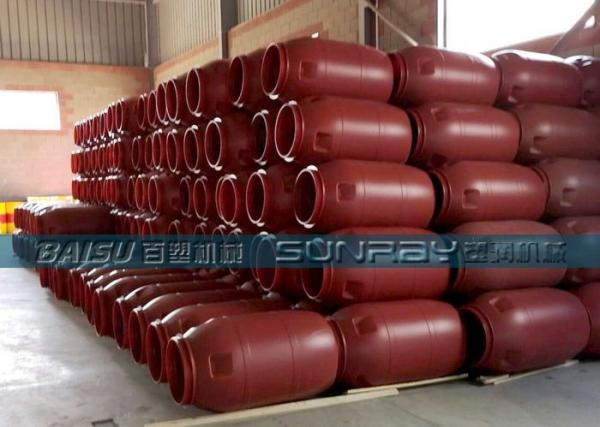

1. Its output for 200 litre plastic drum is 20-21 Pcs/hour, daily production capacity is 500 drums.

2. High-hardness alloy coating screw driven by SIEMENS motor for plasticizing capacity 280KG.


3. Diagonal tie bar central clamping structure, driven by worm motor for easy changing mould.


4. Accumulating head with good material runner design and refined metal surface process.


5. Updated hydraulic system with servo motor system for energy saving to lower your cost.


6. Adopt high speed total machine control system with 100 point parison thickness control.


7. Bottom blowing system, parison expanding or sealing device, motor driving robot included.

Fully Automatic Blow Moulding Machine , 200 Litre Blue Plastic Drum Making Machine SRB120A

Fully Automatic Blow Moulding Machine , 200 Litre Blue Plastic Drum Making Machine SRB120A

PURCHASE & SERVICE FLOW

1. Get customers' sample or product information to select the suitable blow molding machine model.
2. Communicate and negotiate to customers' detailed requirements and provide solution plan.
3. Confirm payment terms, price discount and make proforma invoice or contract, arrange down payment.
4. Start order production and report to customers the manufacturing progress in every week.
5. Machine is finished for mould test, bring forward commissioning report and arrange tail in works.
6. Invite customers for checking and acceptance,operation training, arrange loading and delivery.
7. Dispatch engineer for installation and commissioning, arrange machines' layout in customer' s site.
8. One year guarantee, after sales services, share our experience and remote technical support.
9. Feedback in time for customer's problem, provide solutions and customer's new project consulation.
