HIPS Christmas Crystal Plastic Ball Manufacturing Machine 2 Heads SRB80D-2
HIPS Christmas Crystal Plastic Ball Manufacturing Machine 2 Heads SRB80D-2
HIPS Christmas Crystal Plastic Ball Manufacturing Machine 2 Heads SRB80D-2
HIPS Christmas Crystal Plastic Ball Manufacturing Machine 2 Heads SRB80D-2
HIPS Christmas Crystal Plastic Ball Manufacturing Machine 2 Heads SRB80D-2
HIPS Christmas Crystal Plastic Ball Manufacturing Machine 2 Heads SRB80D-2
HIPS Christmas Crystal Plastic Ball Manufacturing Machine 2 Heads SRB80D-2
HIPS Christmas Crystal Plastic Ball Manufacturing Machine 2 Heads SRB80D-2
Specifications
Brand Name :
BAISU / SUNRAY
Model Number :
10L EBM SRB80D-2
Certification :
CE / ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
75 Days
Packaging Details :
Covered with water-proof film, fastened with special container loop and hooks.
Price :
USD 55000-60000 / Set
Supply Ability :
300 Sets / Year
Machine Type :
Extrusion Blow Molding Machine
Product Range :
Chistmas Ball, Sphere, Decration Balls
Max Volume :
1 Gallon
Material :
HIPS, LDPE, HDPE, PP
Capacity :
400~450 Pcs/hour
Clamping Force :
110 KN
Power :
45 KW
Guarantee :
1 Year
Description

HIPS Christmas Crystal Plastic Ball Manufacturing Machine 2 Heads SRB80D-2, Plastic Toy Sphere & Balls Extrusion Blow Molding Machine, Plastic Christmas Ball Making Machine

QUICK VIEWS

1. SRB80D-2 is double station blow molding machine, used for Chistmas Balls of diameter 200mm as maximum.

2. Its output for Dia.200mm christmas ball is 400 Pcs/hour, for Dia.160mm christmas ball is 440 Pcs/hour.

3. Machine total control system with convenient operation page design suitable for remote technical support.

4. Aluminum cantilever box, product guidance shelves, scraps sliding channels to convenient actual production.

TECHNICAL PARAMETERS

Machine Model Chistmas Ball Blow Molding Machine
Max Product Volume 1 Gallon
Machine Weight 8.2 Tons
Machine Size 4.5 x 3.8 x 2.7 m
Screw Diameter 80 mm
Plasticizing Capacity 110 KG
Clamping Force 110 KN
Platen Size 500 x 450 mm
Platen Opening Stroke 200~600 mm
Max Mould Size 530 x 400 mm
Double Head Central Distance 230 mm
Max Product Diameter or Width 200 mm
Material Cutting Method Hot Cutting
Max Die Diameter 150 mm
Total Power 73.6 KW
Average Energy Consumption 45 KW

HIPS Christmas Crystal Plastic Ball Manufacturing Machine 2 Heads SRB80D-2

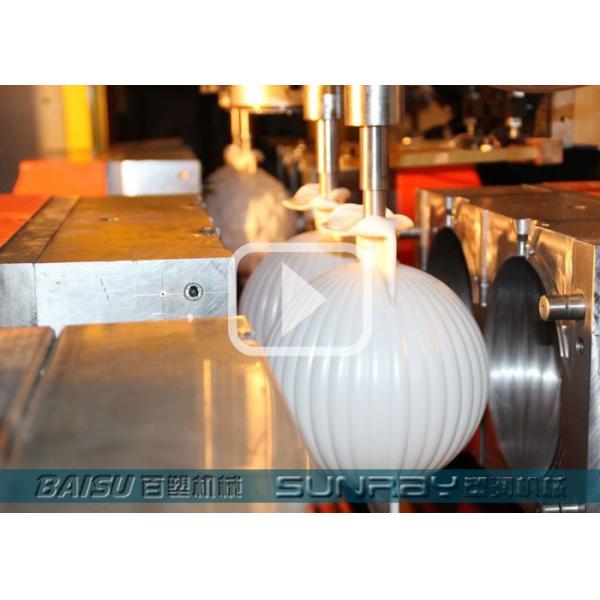

Click Picture Above to See SRB80D-2 Video to Make 200mm Chirstmas Balls

MACHINE FEATURES

1. SRB80D-2 is double station extrusion blow molding machine for 1 gallon as maximum.

2. Besides chirstmas ball, also used for plastic bottle, jerry can, jars, containers and toy parts.

3. High-hardness alloy coating screw driven by SIEMENS motor for plasticizing capacity 110KG.
4. Axial type translational clamping unit with linear guide rails for platen moving in stability.
5. Double cavity head with reasonable runner design and refined surface process technology.
6. Updated hydraulic system with proportional hydraulic valve for stable and precise actions.
7. 100 point parison thickness machine total control system to better thickness distribution.
8. Lubrication pump, scraps slide channels, product clamping boards are included.

PRODUCTION ARRANGEMENT

1. Machine Foundation Size: 5 x 4 m

2. Production Area: 12 x 8 m

3. Minimum Workshop Height: 3.5 m

4. Air Supply Requirement: 1.2m3/min, 0.8Mpa

5. Water Supply Requirement: 7.5 Tons

6. Machine Power Consumption: 45 KW

7. Production Line Power Consumption: 66 KW

8. Whole Line Electricity Arrangement: 250 Amps

9. Minimum Workers Number: 1~2 Workers

HIPS Christmas Crystal Plastic Ball Manufacturing Machine 2 Heads SRB80D-2
