Specifications
Brand Name :
BAISU / SUNRAY
Model Number :
350L EBM SRB120N
Certification :
CE / ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 Set
Price :
USD 115000-125000 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Sets/ Year
Delivery Time :
90 Days
Packaging Details :
Covered with water-proof film, fastened with special container loop and hooks.
Machine Type :
Extrusion Blow Molding Machine
Product Range :
Buoy, plastic floating pontoons, floater
Max Volume :
350L
Material :
HDPE
Capacity :
15 Pcs/hour
Platen SIze :
1400x1600 mm
Plasticizing Cap. :
360 KG
Guarantee :
1 Year
Description

Floating Solar Pontoon Making Machine, High Eficiency Plastic Blow Moulding Machine For Solar Panel Floater, 350L Blow Molding Machine

QUICK VIEW

1. SRB120N is solar floating pontoon and solar main floater special extrusion blow molding machine.

2. For 9KG square main floater its production capacity is 14-15 Pcs/hour, daily output is 360 pontoons.

3. Energy saving, mature hydraulic and electric design, low problem rate to reduce your production cost.

MACHINE PARAMETERS

Machine Model Fully Automatic Blow Moulding Machine
Max Product Volume 350 L
Machine Weight 26.5 Tons
Machine Size 7.8*4.3*6.2 m
Screw Diameter 120 mm
Plasticizing Capacity 360 Kg/hour for HDPE
Clamping Force 1500 KN
Platen Size 1400*1600 mm
Platen Opening Stroke 800-1800 mm
Max Mould Size 1250*1800 mm
Accumulating Volume 30 L
Max Ejection Weight 22.5 Kg
Max Product Weight 12.5 Kg
Max Die Diameter 850 mm
Total Power 195 KW
Average Energy Consumption 95 KW

Floating Solar Pontoon Making Machine, High Eficiency Plastic Blow Moulding Machine For Solar Panel Floater

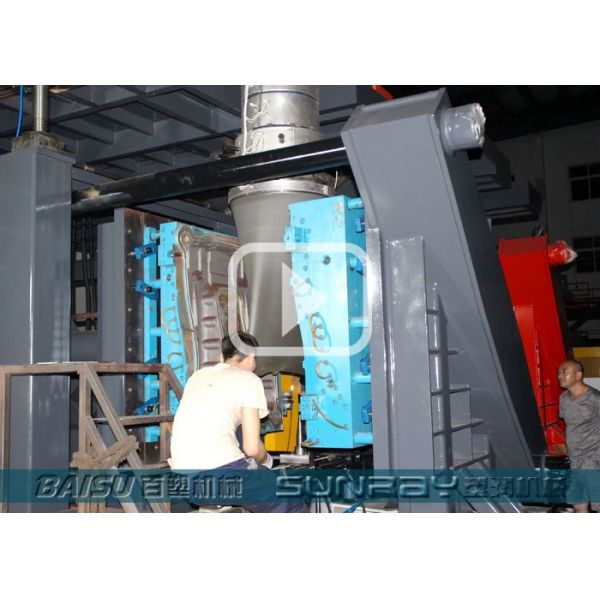

Click picture above to see main floater commissiong video

MACHINE FEATURES

1. SRB120N is fully automatic accumulating blow molding machine for 350L as maximum.

2. HDPE recycled material special screw with high hardness bimetallic alloy.

3. extrusion system is driven by 6 grade motor for plastcizing capacity 360KG.

4. 30L vertical type FIFO accumulating head for max ejection weight 22.5KG.

5. Clamping unit can be pushed outward with oil cylinder, easy for changing moulds.

6. High speed total machine control system with 100 point parison thickness controller.

7. PHASE servo motor & SUMITOMO gear pump for energy saving and control oil temp.

8. Height adjustable bottom blowing unit & parison expanding unit, motor-dring water chilled robot arm.

SERVICE FLOW

1. Get customers' sample or product information to select the suitable blow molding machine model.
2. Communicate and negotiate to customers' detailed requirements and provide solution plan.
3. Confirm payment terms, price discount and make proforma invoice or contract, arrange down payment.
4. Start order production and report to customers the manufacturing progress in every week.
5. Machine is finished for mould test, bring forward commissioning report and arrange tail in works.
6. Invite customers for checking and acceptance,operation training, arrange loading and delivery.
7. Dispatch engineer for installation and commissioning, arrange machines' layout in customer' s site.
8. One year guarantee, after sales services, share our experience and remote technical support.
9. Feedback in time for customer's problem, provide solutions and customer's new project consulation.

Floating Solar Pontoon Making Machine, High Eficiency Plastic Blow Moulding Machine For Solar Panel Floater

Floating Solar Pontoon Making Machine, High Eficiency Plastic Blow Moulding Machine For Solar Panel Floater

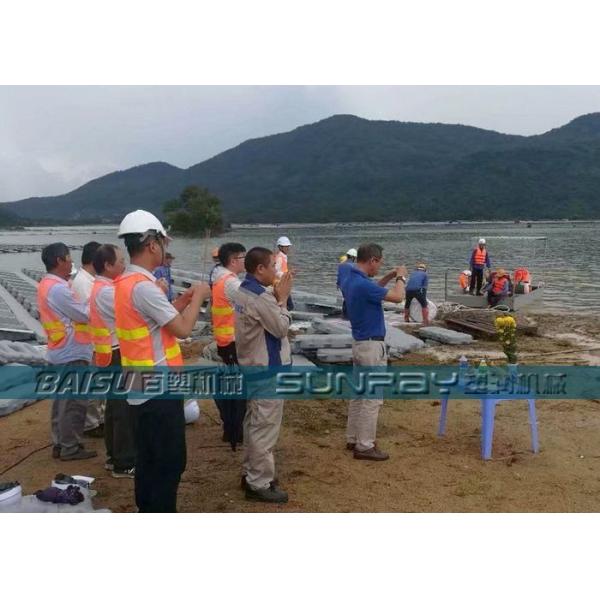

Our Vietnam customer finished the 1st phase floating solar pontoons and panels' fixation
