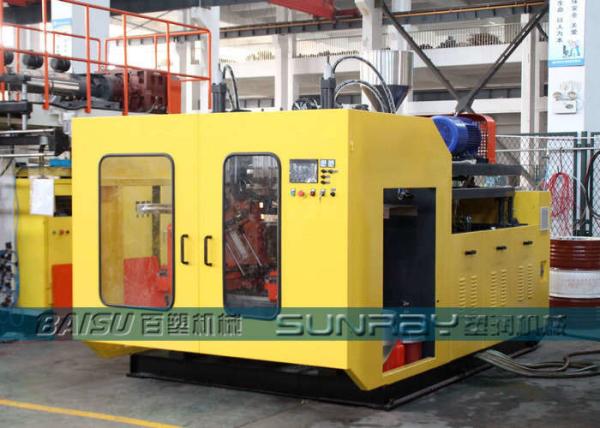

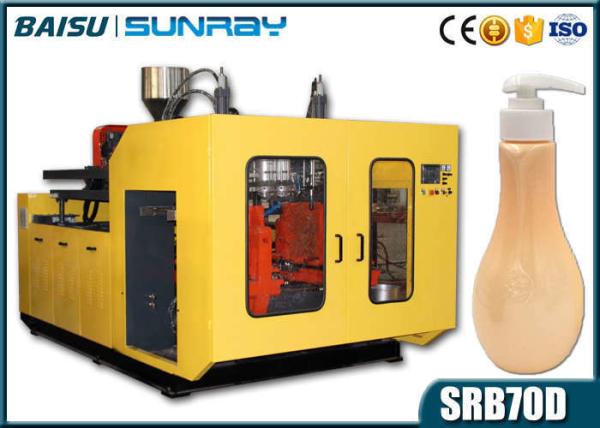

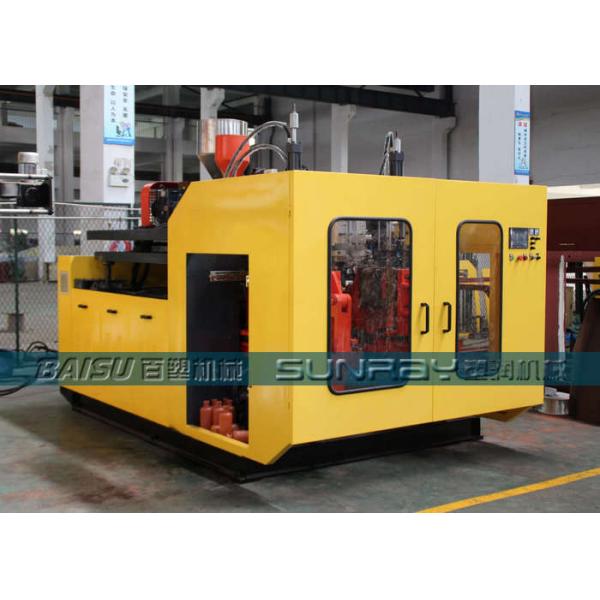

PE PP Cosmetic Small Plastic Bottle Production Machine / Molding Machine SRB70D-2
PE PP Cosmetic Small Plastic Bottle Production Machine / Molding Machine SRB70D-2
PE PP Cosmetic Small Plastic Bottle Production Machine / Molding Machine SRB70D-2
PE PP Cosmetic Small Plastic Bottle Production Machine / Molding Machine SRB70D-2
PE PP Cosmetic Small Plastic Bottle Production Machine / Molding Machine SRB70D-2
PE PP Cosmetic Small Plastic Bottle Production Machine / Molding Machine SRB70D-2
PE PP Cosmetic Small Plastic Bottle Production Machine / Molding Machine SRB70D-2
PE PP Cosmetic Small Plastic Bottle Production Machine / Molding Machine SRB70D-2
Specifications
Brand Name :
BAISU / SUNRAY
Model Number :
2L EBM SRB70D-2
Certification :
CE / ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 Set
Price :
USD 27500-30000/ Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Sets / Year
Delivery Time :
60 Days
Packaging Details :
Covered with water-proof film, fastened with special container loop and hooks.
Machine Type :
HDPE Bottle Making Machine
Product Range :
Small cosmetic bottles, Shampoo bottle, Cream Bottle
Max Volume :
1000 ml
Material :
LDPE, HDPE, PP
Capacity :
650 Pcs/hour
Machine Size :
3.5x2.1x2.4m
Power AVG. :
31.5KW
Guarantee :
1 Year
Description

PE PP Cosmetic Small Plastic Bottle Production Machine / Molding Machine SRB70D-2, Small Cosmetic Bottles HDPE Blow Moulding Machine, Shampoo Bottle HDPE Blowing Machine

QUICK VIEWS

1. SRB70D-2 is double station double head hdpe bottle blow molding machine for 500ml to 1500ml generally.

2. Its output for 1000ml cosmetic bottle is 650Pcs/hour, output for 1L small square container is 600 Pcs/hour.

3. On-line auto-deflashing mould is supported to achive scraps automatic removing. Bottles come out through product collectie guidance shelves, the scraps comes out along sliding channels to machine front.

TECHNICAL PARAMETERS

Machine Model Double Station Extruder Blowing Machine
Max Product Volume 2 L
Machine Weight 5.5 Tons
Machine Size 3.8 x 2.2 x 2.5 m
Screw Diameter 70 mm
Plasticizing Capacity 90 KG
Clamping Force 68 KN
Platen Size 320 x 390 mm
Platen Opening Stroke 150~500 mm
Max Mould Size 360 x 360 mm
Double Head Central Distance 160 mm
Max Product Diameter or Width 135 mm
Material Cutting Method Hot Cutting
Max Die Diameter 100 mm
Total Power 48.5 KW
Average Energy Consumption 31.5 KW

PE PP Cosmetic Small Plastic Bottle Production Machine / Molding Machine SRB70D-2

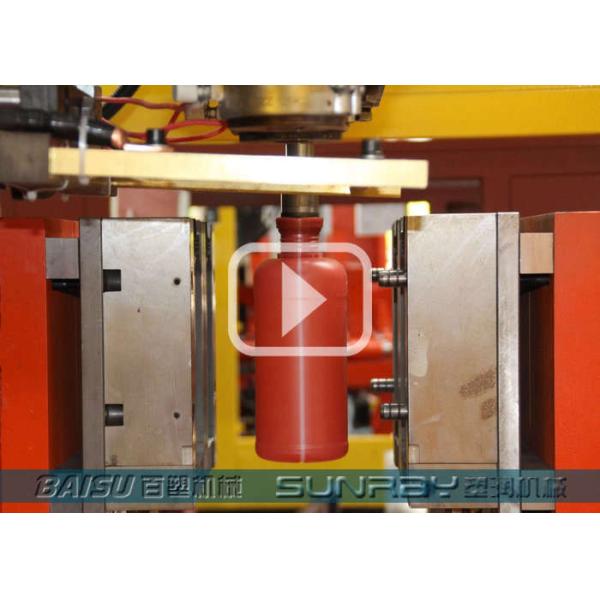

Click picture above to see video for making 750ml cosmetic bottle

PRODUCTION ARRANGEMENT

1. Machine Foundation Size: 3.5 x 2 m

2. Production Area: 7 x 5 m

3. Minimum Workshop Height: 3.0 m

4. Air Supply Requirement: 1.0m3/min, 0.6Mpa

5. Water Supply Requirement: 8 Tons

6. Machine Power Consumption: 32.5 KW

7. Production Line Power Consumption: 45 KW

8. Whole Line Electricity Arrangement: 250 Amps

9. Minimum Workers Number: 2 Workers

PRODUCTION FLOW

The working flow of 5L double station plastic container manufacturing machine production flow is basically like this. The PLC in the electronic control case sends the instruction, the hydraulic system receives the instruction, the fuel tank and the motor start to operate, drives the screw to run, and extrudes the embryo through the die head. The opening and closing mold begins to be closed, the needle is blown, cooled, and plastic products are formed.

MACHINE FEATURES

1. Control Unit: WISETECH total machine programmable controller controller and ture colorful touch panel. English parameter process setting, state monitoring and products counting are convenient and intuitionistic. PLC automatic temperature control model.


2. Hydraulic Unit: It adopts international famous Japan YUKEN brand hydraulic valve and seal, proportional control. And has features of high stationarity and reliability, accurate operation, long longevity, quick response and so on.


3. Extrusion Unit: Hard gear surface decelerator; famous Delta inverter adopts Italian technology; Screw speed regulation adopts variable-frequency speed regulation control system. It has the features of stable rotate speed, powerful power, energy-saving and so on. Mixing screw has wide applicability to raw materials and the plasticization quality is even better. Energy-saving machine barrel and A-alloy heaters are adopted for heating


4. Die Head Unit: With single cylinder material-center-in accumulator head, is smooth and dependable. This die head adopts German technology and is made by special imported steel.

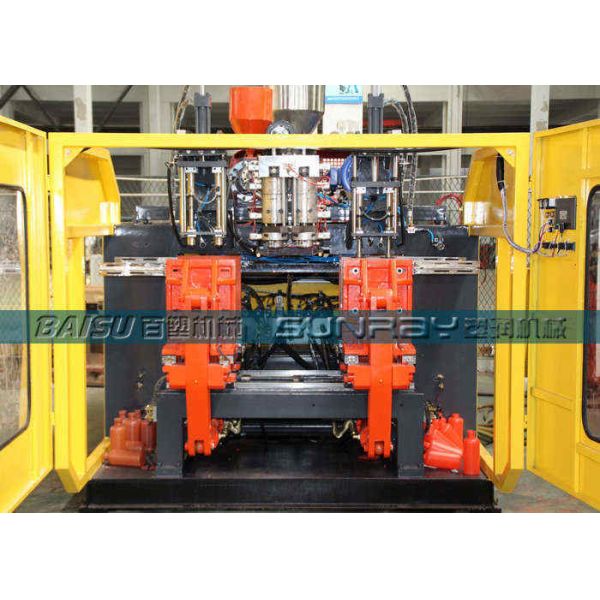

5. Clamping Unit: Adopts fixed mould open-closing system,fast and balanced.


6. Blow Fitting Unit: Down blowing fitting is equipped.


7. Lifter Unit: Four turbine reducer liter, lifting balance, quick, stable.


8. Electrical Components: All of the electrical components are made in Japan and Taiwan.

PE PP Cosmetic Small Plastic Bottle Production Machine / Molding Machine SRB70D-2

PE PP Cosmetic Small Plastic Bottle Production Machine / Molding Machine SRB70D-2
