Specifications
Brand Name :
BAISU / SUNRAY
Model Number :
5L EBM SRB70D-1
Certification :
CE / ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 Set
Price :
USD 27500-30000 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Sets / Year
Delivery Time :
60 Days
Packaging Details :
Covered with water-proof film, fastened with special container loop and hooks.
Machine Type :
Plastic Container Making Machine
Max Volum :
5L
Capacity :
225 Pcs/hour
Machine Size :
3.5X2.2X2.65m
Power AVG. :
31.5 KW
Product Range :
Plastic container, bottle, jerry can, jar
Material Source :
LDPE, HDPE, PP
Guarantee :
1 Year
Description

30.5KW Plastic Blow Moulding Machine , 4l 5l Lubricant Oil Jerrycan Double Station Bottle Making Machine , 5 Liter Detergent & Liquid Soap Plastic Bottle Making Machine

QUICK VIEWS

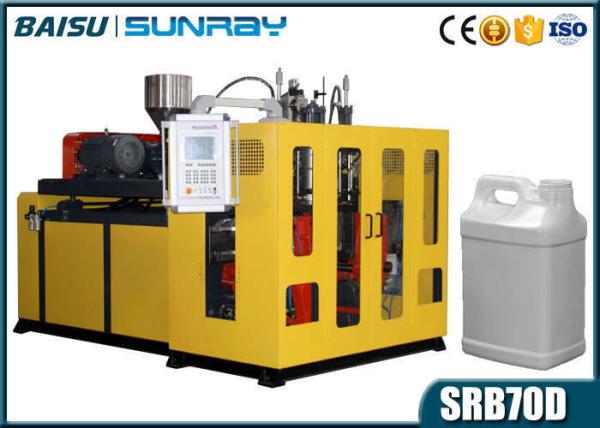

1. SRB70D-1 double station single head plastic container making machine generally used for 1~5L bottles & jerrycans.

2. The output for 150 grams hdpe 5 liter square bottle is 225 Pcs/hour, the daily capacity is about 5400 bottles.

3. Machine energy consumption is 31.5KW/hour, totally need 7x5m production area and 1~2 workers for operation.

TECHNICAL PARAMETERS

Machine Model Plastic Blow Moulding Machine
Max Product Volume 5 L
Machine Weight 5.5 Tons
Machine Size 3.8 x 2.2 x 2.5 m
Screw Diameter 70 mm
Plasticizing Capacity 90 KG
Clamping Force 68 KN
Platen Size 320 x 390 mm
Platen Opening Stroke 150~500 mm
Max Mould Size 360 x 360 mm
Head type Continuous extrusion single head
Max die diameter 180 mm
Material Cutting Method Hot Cutting
Max Die Diameter 100 mm
Total Power 48.5 KW
Average Energy Consumption 31.5 KW

30.5KW Plastic Blow Moulding Machine , 4l 5l Lubricant Oil Jerrycan Double Station Bottle Making Machine

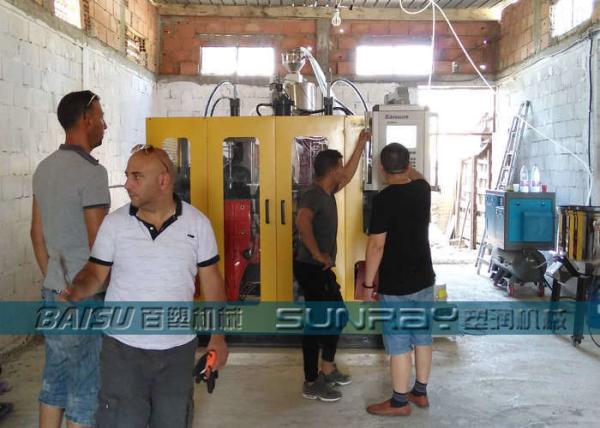

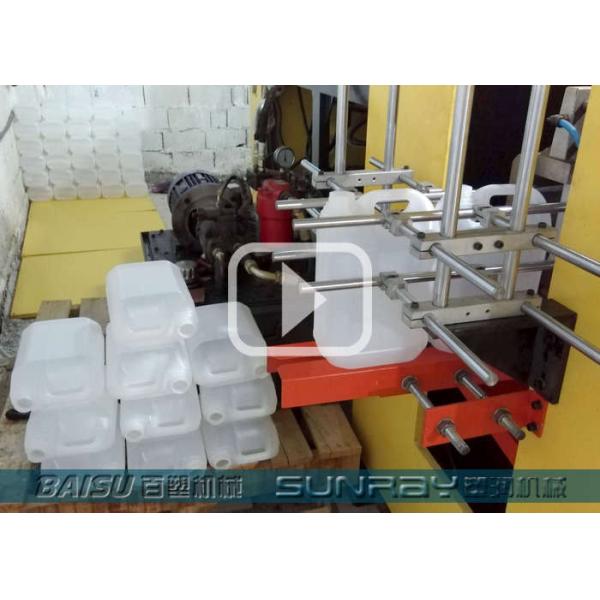

Click picture above to see SRB70D-1 working video in Algeria

PRODUCTION ARRANGEMENT

1. Machine Foundation Size: 3.5 x 2 m

2. Production Area: 7 x 5 m

3. Minimum Workshop Height: 3.0 m

4. Air Supply Requirement: 1.0m3/min, 0.6Mpa

5. Water Supply Requirement: 8 Tons

6. Machine Power Consumption: 31.5 KW

7. Production Line Power Consumption: 45 KW

8. Whole Line Electricity Arrangement: 250 Amps

9. Minimum Workers Number: 2 Workers

MACHINE FEATURES

► Control Unit: WISETECH total machine programmable controller controller and ture colorful touch panel. English parameter process setting, state monitoring and products counting are convenient and intuitionistic. PLC automatic temperature control model.


► Hydraulic Unit: It adopts international famous Japan YUKEN brand hydraulic valve and seal, proportional control. And has features of high stationarity and reliability, accurate operation, long longevity, quick response and so on.


► Extrusion Unit: Hard gear surface decelerator; famous Delta inverter adopts Italian technology; Screw speed regulation adopts variable-frequency speed regulation control system. It has the features of stable rotate speed, powerful power, energy-saving and so on. Mixing screw has wide applicability to raw materials and the plasticization quality is even better. Energy-saving machine barrel and A-alloy heaters are adopted for heating


► Die Head Unit: With single cylinder material-center-in accumulator head, is smooth and dependable. This die head adopts German technology and is made by special imported steel.


► Clamping Unit: Adopts fixed mould open-closing system,fast and balanced.


► Blow Fitting Unit: Down blowing fitting is equipped.


► Lifter Unit: Four turbine reducer liter, lifting balance, quick, stable.


► Electrical Components: All of the electrical components are made in Japan and Taiwan.

30.5KW Plastic Blow Moulding Machine , 4l 5l Lubricant Oil Jerrycan Double Station Bottle Making Machine

30.5KW Plastic Blow Moulding Machine , 4l 5l Lubricant Oil Jerrycan Double Station Bottle Making Machine

PRODUCTION FLOW

The working flow of 5L double station plastic container manufacturing machine production flow is basically like this. The PLC in the electronic control case sends the instruction, the hydraulic system receives the instruction, the fuel tank and the motor start to operate, drives the screw to run, and extrudes the embryo through the die head. The opening and closing mold begins to be closed, the needle is blown, cooled, and plastic products are formed.
