Specifications
Brand Name :
BAISU / SUNRAY
Model Number :
120L EBM SRB100
Certification :
CE / ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 Set
Price :
USD 65000-70000 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Sets/ Year
Delivery Time :
75 Days
Packaging Details :
Covered with water-proof film, fastened with special container loop and hooks.
Machine Type :
Plastic Container Making Machine
Product Range :
Open top drums & barrels
Max Volume :
120L
Material :
LDPE, HDPE, PP
Capacity :
25 Pcs/hour
Machine Size :
5.8X3.6X4.8M
Power Avg. :
45KW / Hour
Guarantee :
1 Year
Description

Energy Saving Plastic Blow Moulding Machine for 120L Open Top Drum 380V, 100 Liter Plastic Container Making Machine, Plastic Blue Drum Extrusion Blowing Machine

QUICK VIEWS

1. SRB100 is the accumulating extrusion blow molding machine for 60L, 80L, 100L & 120L plastic drums.

2. Its output for 100L open top drum is 26 Pcs/hour, for 120L plastic blue drum is 24 Pcs/hour.

3. Italy PHASE servo motor + Japan SUMITOMO gear pump + Taiwan Delta motor speed controller.

TECHNICAL DATA LIST

Machine Model extrusion blow moulding machine
Max Product Volume 120 L
Machine Weight 15 Tons
Machine Size 5.8x3.6x4.8 m
Screw Diameter 100 mm
Plasticizing Capacity 170 Kg/hour
Clamping Force 500 KN
Platen Size 1040x1260 mm
Platen Opening Stroke 450-1250 mm
Max Mould Size 800*1500 mm
Accumulating Volume 12 L
Max Ejection Weight 9 Kg
Max Product Weight 6 Kg
Max Die Diameter 450 mm
Total Power 122.7 KW
Average Energy Consumption 45 KW

Energy Saving Plastic Blow Moulding Machine for 120L Open Top Drum 380V

Click picture above to see 120L open top drum making video

MACHINE ADVANTAGES

1. Reasonable structure design and solid frame manufacturing to insure running stability.

2. Machine total control system with convenient operation page design suitable for remote technical support.

3. Energy saving, mature hydraulic and electric design, low problem rate to reduce your production cost.

MACHINE MAIN FEATURES

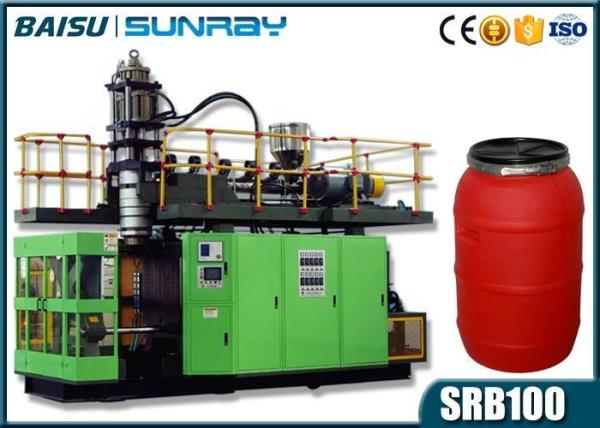

● Plastic drum blow molding machine SRB100, is accumulating type EBM machine.

● Max product volume is 120L, used for plastic drum, open top barrel and different borads.
● Its output for 120 liter plastic drum is 25 Pcs/hour, daily production capacity is 600 drums.
● High-hardness alloy coating screw driven by SIEMENS motor for plasticizing capacity 160KG.
● Diagonal tie bar central clamping structure, driven by worm motor for easy changing mould.
● Accumulating head with good material runner design and refined metal surface process.
● Updated hydraulic system with servo motor system for energy saving to lower your cost.
● Adopt high speed total machine control system with 100 point parison thickness control.
● Bottom blowing system, parison expanding or sealing device, motor driving robot included.

PRODUCTION LINE ARRANGEMENT

1. Machine Size: 5.8x3.6x4.8 m

2. Production Area: 12x6.0 m

3. Minimum Workshop Height: 6 m

4. Air Supply Requirement: 1.6m3/min, 0.8Mpa

5. Water Supply Requirement: 12 Tons

6. Machine Power Consumption: 45 KW

7. Production Line Power Consumption: 78.5 KW

8. Whole Line Electricity Arrangement: 600 Amps

9. Minimum Workers Number: 2~3 Workers

Energy Saving Plastic Blow Moulding Machine for 120L Open Top Drum 380V

Energy Saving Plastic Blow Moulding Machine for 120L Open Top Drum 380V
