0 ~ 2L HDPE Small Bottle Automatic Blow Molding Machine 550BPH Capacity
0 ~ 2L HDPE Small Bottle Automatic Blow Molding Machine 550BPH Capacity
0 ~ 2L HDPE Small Bottle Automatic Blow Molding Machine 550BPH Capacity
0 ~ 2L HDPE Small Bottle Automatic Blow Molding Machine 550BPH Capacity
0 ~ 2L HDPE Small Bottle Automatic Blow Molding Machine 550BPH Capacity
0 ~ 2L HDPE Small Bottle Automatic Blow Molding Machine 550BPH Capacity
0 ~ 2L HDPE Small Bottle Automatic Blow Molding Machine 550BPH Capacity
0 ~ 2L HDPE Small Bottle Automatic Blow Molding Machine 550BPH Capacity
Specifications
Brand Name :
BAISU / SUNRAY
Model Number :
2L Double Station EBM SRB70D-2
Certification :
CE / ISO9001
Place of Origin :
ZHANGJIAGANG, JIANGSU
MOQ :
1 Set
Price :
USD 28500-30000/ Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Sets/ Year
Delivery Time :
60 Days
Packaging Details :
Covered with water-proof film, fastened with special container loop and hooks.
Machine Type :
Automatic Bottle Blowing Machine
Product Range :
Plastic Bottle, Jerrycan, jar, container
Max Volume :
2L
Material :
LDPE, HDPE, PP
Capacity :
550 Pcs/hour
Power Avg. :
31.5 KW
Max Bottle Width :
130 mm
Guarantee Time :
1 Year
Description

0 ~ 2L HDPE Small Bottle Automatic Blow Molding Machine 550BPH Capacity, Plastic Bottles Automatic Blow Molding Machine, PE Bottles Automatic Blow Moulding Machine

QUICK VIEWS

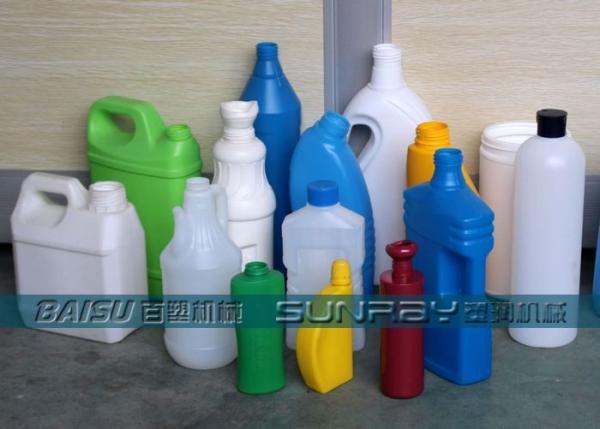

1. SRB70D-2 specially used for PE & PP bottles, jerrycan, kettles, containers and jars, output >500 BPH.

2. Its output for 1.5L flat bottle or jerry can with handle is 500 Pcs/hour, daily capacity is 12000 bottles.

3. The output for 1000ml flat bottle without handle is 550 Pcs/hour, the daily capacity is 13200 bottles.

4. The output for 750ml detergent bottle or liquid soap bottle is 600 Pcs/hour, the daily capacity is 14400 bottles.

MAIN FEATURES

1. SRB70D-2 double head central distance is 160mm, suitable for bottle diameter or width small than 135mm.

2. Machine total control system with convenient operation page design suitable for remote technical support.

3. Adopt pressure / flow double proportion control for hydraulic system, insure platen moving speed & smoothness.

4. Aluminum cantilever box, product guidance shelves, scraps sliding channels to convenient actual production.

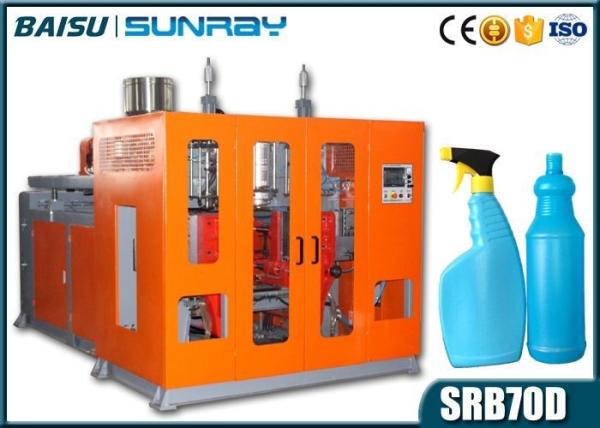

0 ~ 2L HDPE Small Bottle Automatic Blow Molding Machine 550BPH Capacity

Click above picture to see SRB70D commissioning video

TECHNICAL PARAMETERS

Machine Model HDPE Blow Molding Machine
Max Product Volume 2 L
Machine Weight 5.5 Tons
Machine Size 3.8 x 2.2 x 2.5 m
Screw Diameter 70 mm
Plasticizing Capacity 90 KG
Clamping Force 68 KN
Platen Size 320 x 390 mm
Platen Opening Stroke 150~500 mm
Max Mould Size 360 x 360 mm
Double Head Central Distance 160 mm
Max Product Diameter or Width 135 mm
Material Cutting Method Hot Cutting
Max Die Diameter 100 mm
Total Power 48.5 KW
Average Energy Consumption 31.5 KW

PRODUCTION ARRANGEMENT

1. Machine Foundation Size: 3.5 x 2 m

2. Production Area: 7 x 5 m

3. Minimum Workshop Height: 3.0 m

4. Air Supply Requirement: 1.0m3/min, 0.6Mpa

5. Water Supply Requirement: 8 Tons

6. Machine Power Consumption: 31.5 KW

7. Production Line Power Consumption: 45 KW

8. Whole Line Electricity Arrangement: 250 Amps

9. Minimum Workers Number: 2 Workers

PRODUCTION FLOW

The working flow of double station plastic container manufacturing machine production flow is basically like this. The PLC in the electronic control case sends the instruction, the hydraulic system receives the instruction, the fuel tank and the motor start to operate, drives the screw to run, and extrudes the embryo through the die head. The opening and closing mold begins to be closed, the needle is blown, cooled, and plastic products are formed.

0 ~ 2L HDPE Small Bottle Automatic Blow Molding Machine 550BPH Capacity

0 ~ 2L HDPE Small Bottle Automatic Blow Molding Machine 550BPH Capacity
