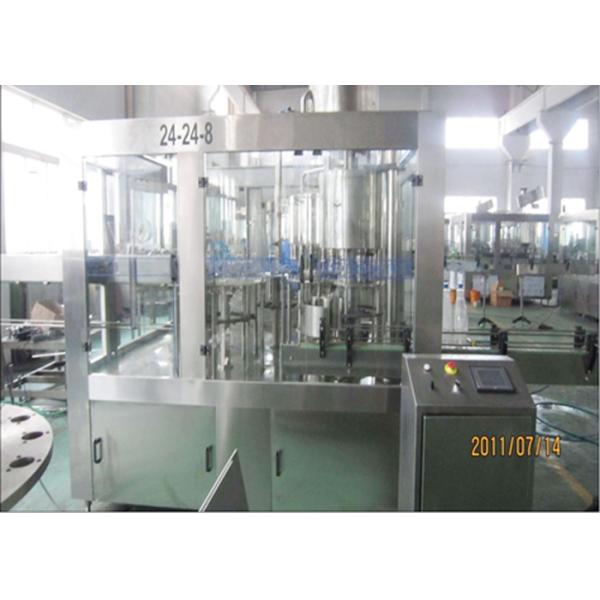

24 Filling Heads Bottled Water Filling Line With High Bottle Washing Efficiency
24 Filling Heads Bottled Water Filling Line With High Bottle Washing Efficiency
Specifications
Brand Name :
OEM
Model Number :
CGF24-24-8
Place of Origin :
China
Item Name :
Water Filling Machine
Material :
Stainless steel
Filling Speed :
8000BPH (0.5L bottle)
Function :
Bottle rinsing,filling and capping
MOQ :
negotiated
Price :
negotiated
Description

8000BPH ( 0.5L ) Bottled Water Filling Line 3in1 Water Filling Machine CGF24-24-8

3in1 Still Water Filling Machine. Bottle rinser, filler and capper.

Bottle rinsing system
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. Two times internal and external washing. High bottle washing efficiency.
Waterhome original overturn and double-opened SUS304 bottle clip. Lock the bottle on neck. Meanwhile, bottle clip is equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.

Bottle filling system
The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm (subject to bottle design). The filling valve material is SUS304. The filling system has liquid level automatic control. Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill. Bottle is conveying by the wheel in the filling part.

Bottle Capping system
Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate.

Rinser heads 24
Filling Heads 24
Screw cap head 8
Rated capacity(500ml bottle) 8000-10000BPH(500ml)
Suitable for bottle height of bottle 160～320mm
Bottleneck Φ50～Φ95mm
Water consumption 0.3m3/h
working voltage 380V (AC)
control voltage 24V(DC)
installed capacity 6.25KW
overall dimension(including rinser) 2700X2200X2550mm
weight 5000 KG
