200-300 BPH 5 Gallon Water Bottling Line Inside And Outside Bottle Washing Available
200-300 BPH 5 Gallon Water Bottling Line Inside And Outside Bottle Washing Available
Specifications
Brand Name :
OEM
Model Number :
JNWS-1
Place of Origin :
China
Material of brusher :
Nylon
Washing speed :
200-300BPH
Mode :
Automatic
Working station :
2 stations
MOQ :
negotiated
Price :
negotiated
Description

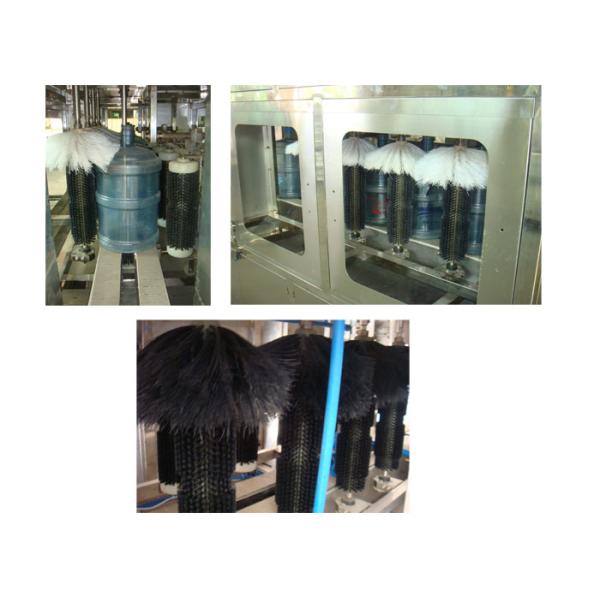

5 gallon Water Bottling Line Automatic Online Bottle Brusher JNWS-1 ( Inside and Outside Bottle Washing)

Working principle:

Enclosed working mode avoids water leaking outside. The photoelectric switch get the signal once the empty bottle going into the brusher, and make the PLC to radiate out orders, block the empty bottle by bottle blocking cylinder, fix it on the brush wheel by positioning system. And then brush wheel will drive the empty bottle rotating and rubbing against the brush to clean the bottle for seconds, and then the positioning system, bottle blocking cylinder would return to their original position. The empty bottle would move on to be cleaned by clean water in the cleaning pathway, and then goes into the follow machine to finish the next process. High speed rotation bottle cleaning, 4-6 cycles of bottle brushing, brusher and water sprayer combination enhance the efficiency of bottle cleaning.

Power supply AC 220V±5%; 60HZ; 3phases, or customizable
Input power 2.5KW
Rated Current 5A
Dimensions 40x850x1970mm
Packing size 1500×1400×2600mm
N.W./G.W. 450Kg/550Kg
Production capacity 200-300BPH
Working station dual-station

200-300 BPH 5 Gallon Water Bottling Line Inside And Outside Bottle Washing Available
