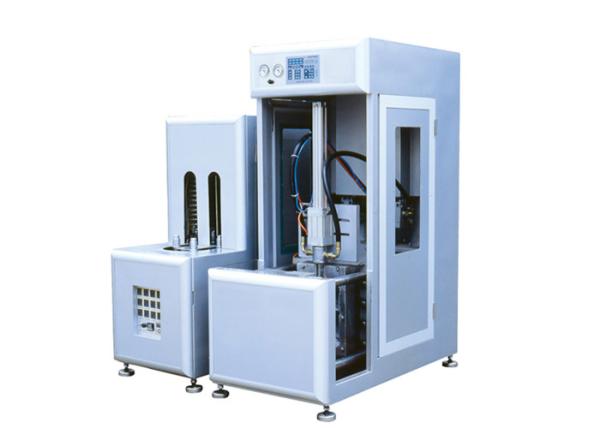

5 Gallon Bottle Semi Auto Blow Molding Machine 90BPH For 20L Bottle
5 Gallon Bottle Semi Auto Blow Molding Machine 90BPH For 20L Bottle
Specifications
Brand Name :
OEM
Model Number :
SAET-90
Place of Origin :
China
MOQ :
negotiated
Price :
negotiated
Usage :
Blow PET/PE/PC bottle
Production capacity :
90BPH for 20L bottle
Product size :
8-25L
Mould size :
1cavity
Mode :
Semi-automatic
Preform size :
15-460mm(length), 12-200mm (inner dia.)
Description

90BPH 5 Gallon Bottle Blow Molding Machine SAET-90 1 cavity mould

SAET-90 Blow molding machine is semi-automatic. It is used to produce 3-gallon and 5-gallon bottles. It is widely used to produce any shape of PET/PC &PE plastic containers with neck finishes from 15mm. to 200 mm.

Including

  • Main machine (Blower & Pre-Heater)
  • High Pressure Air compressor: 1PC
  • Air Freezing Dryer: 1PC
  • Air Filter: 2PCS
  • 1 cavity Bottle Mould: 1 unit
  • Spare Parts for one year maintenance
  • Professional Tools for Maintenance: 1 SET

TYPE ITEM TECHNICAL DATA
CONTAINER Product material PET/PE
Container volume 8-25L (1 cavity)
Theoretical output

15Litres: 90pcs/hour

8Litres: 200pcs/hour
Preform length 15-460mm
Preform inner diameter φ15-200mm
MOULDING Max.mould plate dimension (L×W) 420×500mm
Max. mould thickness 400mm
Clamping force 330KN
Mould opening stroke 330mm
AIR
COMPRESSOR		 High pressure air compressor ≥1.2/3.0M3/MPa; 11KW
Air pressure for blowing 2.0-3.0Mpa; 11KW
Low pressure air compressor ≥1.6/1.25M3/MPa; 7.5KW
AIR DRYER Air Freezing Dryer ≥1.0/3.0KW; 0.375KW
MAIN MACHINE
ELECTRICITY		 Power 15KW
Voltage/Frequency AC 380/50Hz (3-phase)
MACHINE SIZE AND WEIGHT Main Blower machine (L×W×H) 1.55×0.82×2.00M
Main machine weight 1Ton
Pre-Heater (L×W×H) 2.42×0.65×1.60M
Pre-Heater weight 0.38Ton
High pressure air compressor (L×W×H) 1.90×0.75×1.50M
Low pressure air compressor (L×W×H) 1.85×0.70×1.50M
Air Freezing Dryer 1.05×0.60×1.10M
Air filters 10 KG ×2pcs
SAFTY Auto-emergency alarm Safety inter-locking device
