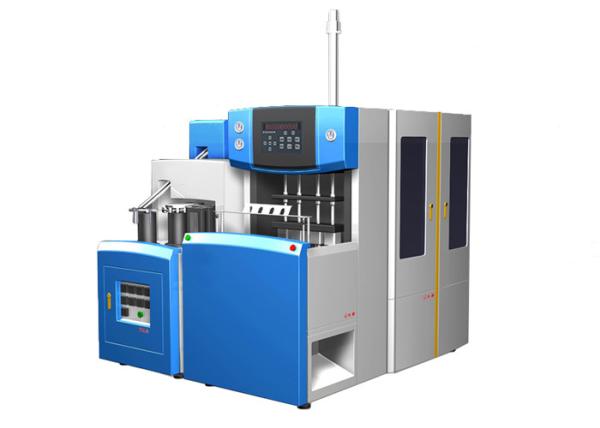

4 Cavity Module Bottle Blow Molding Machine For PET / PC / PP / PE Bottles
4 Cavity Module Bottle Blow Molding Machine For PET / PC / PP / PE Bottles
Specifications
Brand Name :
OEM
Model Number :
SA4
Place of Origin :
China
Usage :
Blow PET/PE/PC bottle
Production capacity :
800BPH
Product size :
0.1~6L
Module size :
2cavity for 0.1-2.5L ; 1cavity for 3-6L
MOQ :
negotiated
Price :
negotiated
Description

2000BPH Semi-auto Bottle Blow Molding Machine SA4 for PET / PC / PP / PE bottle (4 Cavity module)

Description

SA series blow molding machine is the latest high output semi-automatic PET blow molding machine. Compare with the traditional machine design, thanks to new concept of automatic bottle discharging unit, the patented heating system and the preforms automatic loading design, The SA series blow molding machine requires less manpower and reduces the work intension for the operator. New SA series blow molding machine holds the cavity of the blowing mold up to 6 cavities, the output reaches 2800BPH for 500ml water bottles. Compared to the output of normal manual blow molding machine, this is an outstanding improvement in the PET Bottle blow molding industry.

Specification
Number of Cavities 4Cavity Max. Stretching Stroke 380mm
Material PET/PC/PP/PE Theoretical Output 2000BPH
CIamping Force 300KN Max. area of mould base 750*420mm
Max Clamping Stroke 350mm Max. Mould Thickness 190mm
Bottom Moving Stroke 60mm Space Between Tie Bars 670*340mm
Electrical system
Total power(Full Loaded) 18KW Voltage Standard 380v/3PH/50Hz
Container
Max. Length of preform 180mm Diameter of neck finish 15mm-45mm
Diameter of preform 15mm-40mm Container Diameter 110mm
Container Volume 0.1-2.5L Max. Height of container 370mm
Air system
High pressure Air compressor >1.2m3 /3.0MPax2 (0.5L)
Dimension & Weight
Blow molding machine 1.9*0.88*1.8M Net. Weight 1.3T
Oven 1.9*0.66*1.6M 　 　
