Specifications
Brand Name :
Tengzhuo
Model Number :
SE005
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
one piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
35 working days
Packaging Form :
Cup box
Customization :
Logo / Size / Parts Brand/ Material
Packaging Type :
plastic cup, paper cup, aluminum and plastic cup box products
Operation :
Easy Operation
Feature :
Automatic,PLC,Touch Screen
Size :
2200*1030*2030 mm
Sealing Speed :
About 20 cups/min(1200 cups/hour)
Bottle diameter :
50-100 mm
Automatic Grade :
Automatic
Machine weight :
430 kg
Shrink Film :
foil film
Motor Power :
2 KW
Lead Time :
30 working days
Market :
Brazil,Ecuador,France,USA
Sealing speed :
about 30~35 cans/min
Description

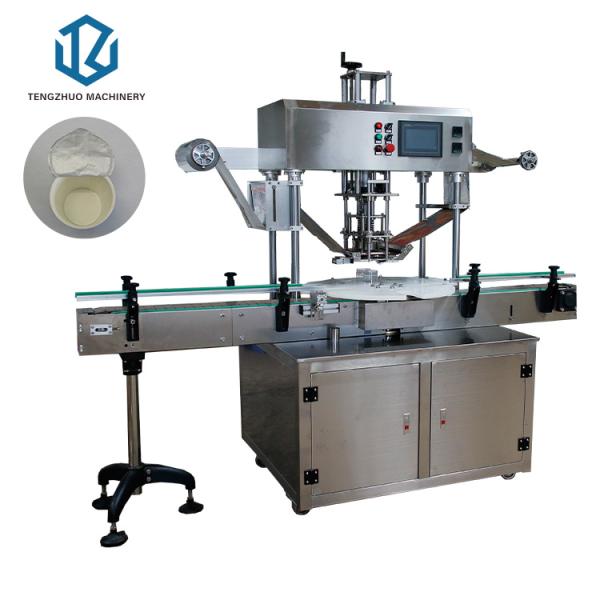

Automatic Rotary Double Heads Roll Film Heat Sealing Machine

Induction Sealer Aluminum Foil Sealing Machine Sealing Machine For Yogurt Plastic Cup Capsule Coffee Heat Sealing Machin

Induction Sealer Aluminum Foil Sealing Machine Sealing Machine For Yogurt Plastic Cup Capsule Coffee Heat Sealing Machin

1. Main machine appearance main materials are SUS304 stainless steel and T6 hard aluminum alloy;

2. Bottle diameter:50-100mm(only limit at one bottle diameter, need to replace sealing head mold for different bottle diameter,replace time is around 30 mins);

3. Bottle height: 60-200mm adjustable(can customize for special height);

4. Suitable for bottle and cup: plastic bottle or cup, tin can, aluminum can, paper can, paper cup, glass bottle or cup

5.Bottle requirements: hard bottle body, bottle mouth is smooth;

6. Sealing speed: about 30~35 cans/min(Speed will be different according to different bottles size & roll film type);

7. Aluminum foil requirement: Aluminum foil materials should be corresponding to the can materials(For example: PET material can use the PET film, PE material can use PE film), aluminum foil thickness: 0.1-0.4mm.

8. Rated voltage: Single phase AC220V 50Hz, Conveyor motor power 200W, film retrieve motor power 25W,2 pcs heating head power 400W, star wheel power 450W,total power 1475W;

9. Machine size:2200*1030*2030mm(with 2.2 meter conveyor), Polywood case packing size: 190x120x214cm 4.88cbm

10. Net weight:350KG, Gross weight :430KG;

11. Seal time 1.2-2s, temperature set at 180-210℃;

12. Height of conveyor distant to ground is 900mm(+50mm), conveyor belt width:114mm;

13. This machine need additionally configure air compressor, the minimum air source pressure required 0.6MPa.
