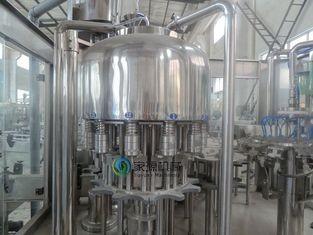

Auto 4 in 1 Automatic Liquid Bottle Filling Machine 380V / 50HZ For Mineral Water

Quick Detail:

1. Capacity: 6000 bottles per hour
2. Sterilizing water rinser, pure water rinser, filler, capper 4-in-1 monoblock
3. Fully automatic, no bottle no filling, no cap machine will stop.
4. CE, ISO certificate
5. Designed power supply: AC/380V/50HZ/3PHASE
6. Customizable

Automatic SUS304/316 6000BPH CGF18-18-18-6 4-in-1 water filling machine

Description:

1. This 4-in-1 water filling machine: used for pure water, mineral water, drinking water filling into PET bottles, or glass bottles.

2. The water filling machine is Wash-filling-capping 4-in-1 unit.

3. The water filling machine is suitable for 500-2000ml PET bottle filling, this machine can realize one machine different size, just change the different star wheels.

4. The water filling machine capacity can be 1000-20000bph.

5. We strictly manufacture and manage according to IOS9001:2000 System. And we sincerely welcome customers all over the world visit our company, or browse, visit our website. Any requirement, please contact us via E-mail, we will provide beat service for customers.

A. water filling machine—double washing part

• All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean

• 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

• 304 stainless steel washing pumps
• First rinsing position is sterilizing water rinser, second rinsing position is purified water rinser.

B. water filling machine--Filling part

• Filling temperature is adjustable.
• Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling.
• All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
• No bottle no filling

C. water filling machine--Capping part

• l Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
• l All 304stainless steel construction
• l No bottle no capping,
• l Automatic stop when lack of caps

Application

This machine can be used for filling non-carbonated liquid beverage with normal or middle temperature into PET bottles and capping it automatically.

1. Pure water
2. Mineral water
3. Juice filling with normal temperature or middle temperature.

Specifications:

Competitive Advantage:

1. The three functions of bottle washing, filing and capping are composed in one body of the machine.
2. The whole process is automatic, no bottle no filling, no cap, machine will stop.
3. So this machine has three steps, first is washing, second is filling, third is sealing the bottle.
4. Low power consumption, better material SUS 304, SUS 316.
5. Small size, simple structure, low investment
6. Auto complete line, need less worker.
