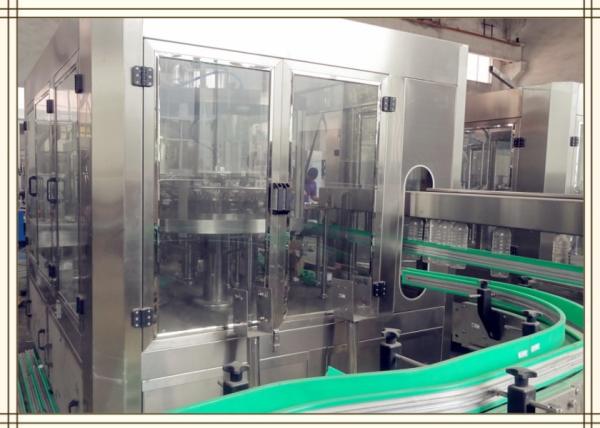

aerated water machine/SUS304 Silvery White Water Bottle Filling Machine for Glass Bottle​

introduction

JIAYUAN CGF series mineral water filling machine and packaging machinery is a self-developed new product by our R&D department to meet the requirement of multi-usage demands for our customers. The mineral water filling machine is consisted of ringsing-filling-caping all together. It can fill mineral water, pure water and distill water etc. JIAYUAN CGF mineral water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as mineral water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the mineral water filling production line.

Application:

This water filling machine is used in the production of non-carbonated drink, such as mineral water and purified water, etc.

1. The suspending bottle-neck clamping design make the bottle stable during the high speed moving conditions. By changing a few parts, it can meet the need of different types of bottles easily.

2. The new generation of stainless steel grab is adopted and the grabs have no contact with the arew above the bottle's screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

3. The advanced gravity filling technology used in this machine makes the filler quick,steady and accurate.

4. Magnetic torque is used for screw capping,and the power of screw capping can be adjusted steplessly. Capping is reliable and do no harm to the caps.

5. Advanced technologies,such as human-machine interface touch-screen and PLC program control are adopted in this machine.

6. All parts that directly contacting with water are made of high stainless steel. The critical electrical components are from famous international companies, such as mitsubishi, omron and other famous brands.

Feature

• The mineral water filling machine adpots advanced human-machine interface control. High quality international name brand key components
• Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine
• Spring type rinsing catcher can wash both inside and outside of the bottle
• Low overall machine noise
• Self-lubricating system imported from America provides continuous smooth operation

Competitive Advantage:

1. This machine has three steps, first is washing, second is filling, and third is sealing the bottle.
2. Simple structure, low investment
3. Auto complete line, need less worker.
4. Low power consumption, better material SUS 304, SUS 316.
5. The three functions of bottle washing, filing and capping are composed in one body of the machine.
6. The whole process is automatic, no bottle no filling, no cap, machine will stop.
